Hot sale Gema (NON-OEM) Powder coating injector pump IG06 1007 780
1007 780 Optiflow IG06 Injector pumpAConveying air check valve unit (red marking) - complete (incl. pos. 6, 8, 9 and 12)1007 780BSupplementary air check valve unit (black marking) - complete (incl. po···
Features

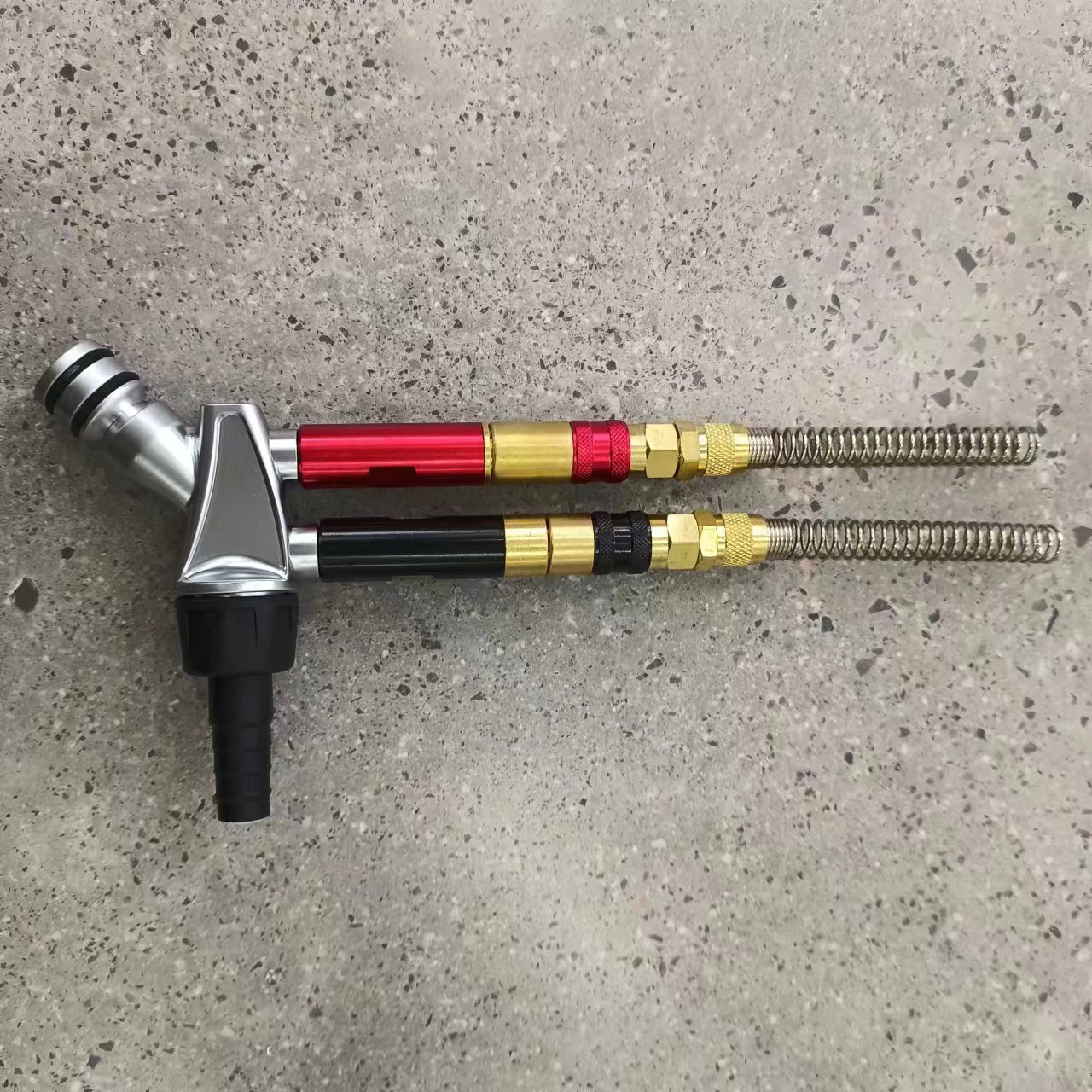

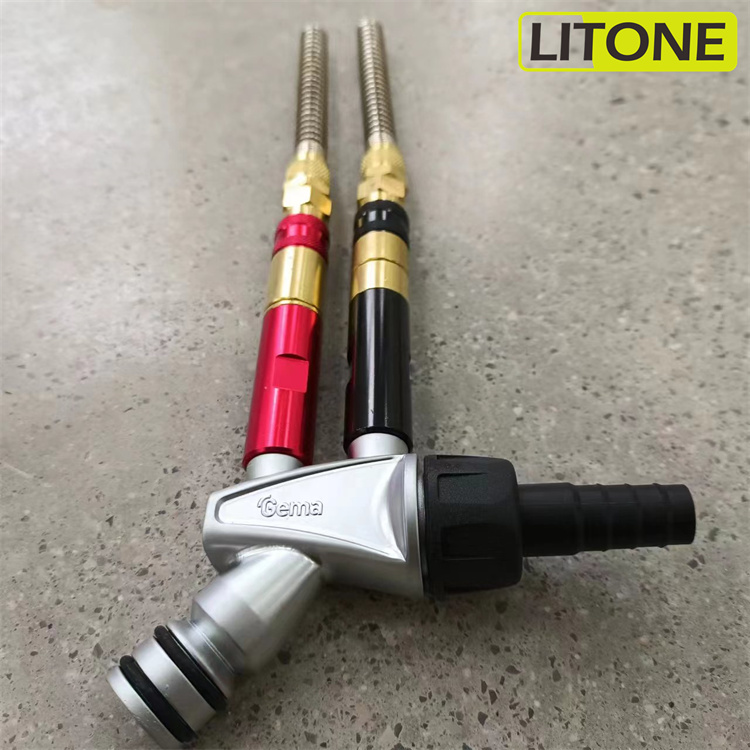

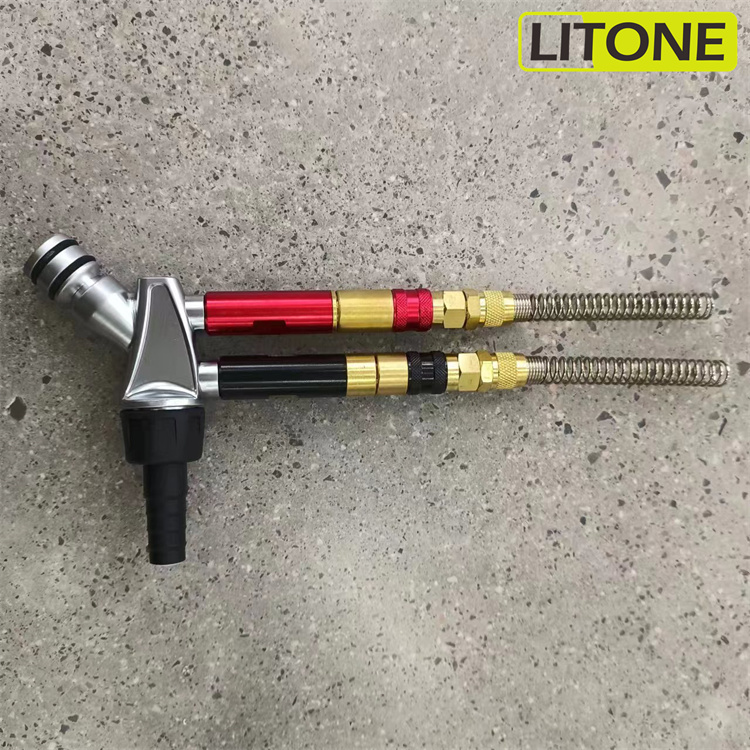

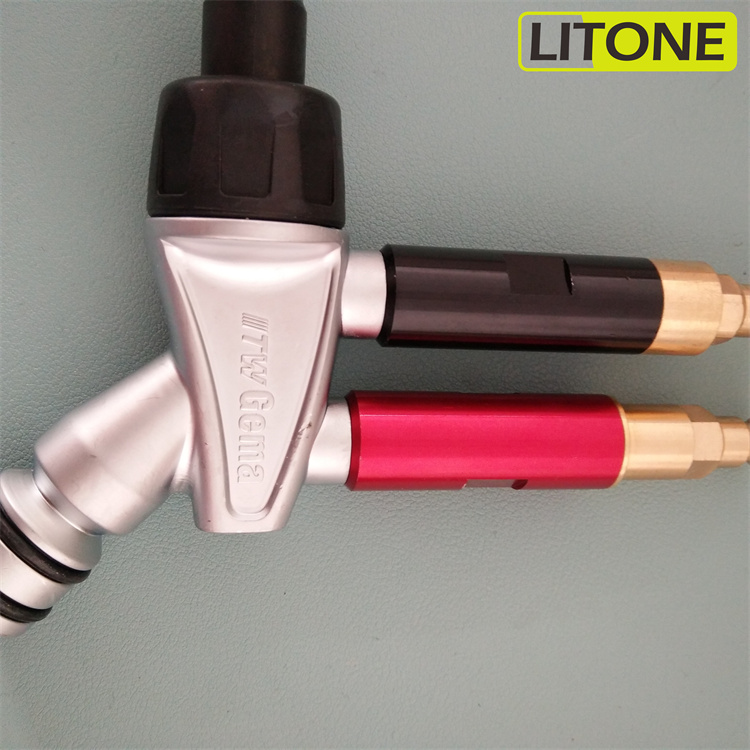

Gema (NON-OEM) 1007 780 Optiflow IG06 Injector pump
Product Description
Optiflow IG06 Injector pump 1007 780: High quality,1:1 with original
The OptiFlow injector is used for conveying normal organic powders between the powder hopper and the powder gun. The injector is supplied with a PTFE insert sleeve as standard.

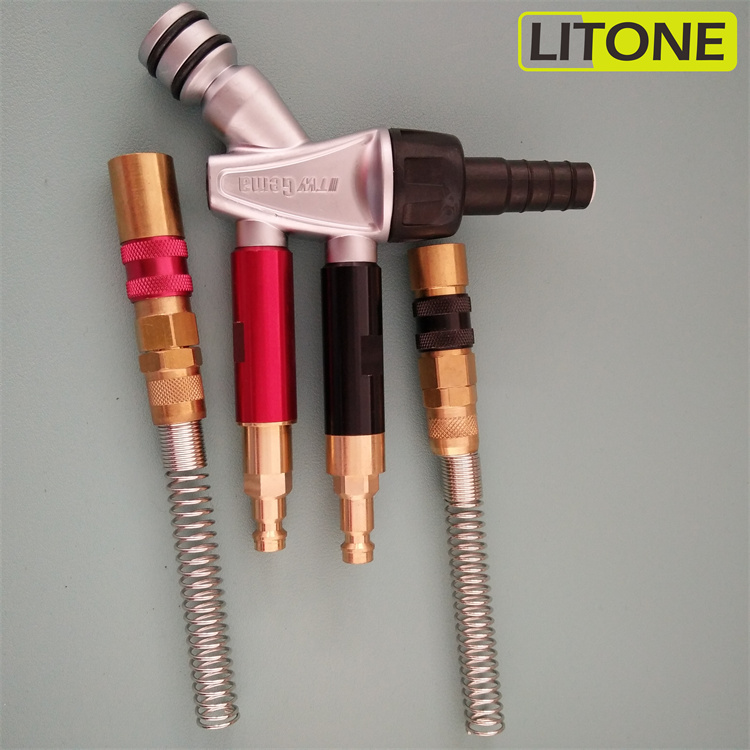

The OptiFlow Injector is a plug-in type and permits easy handling and quick cleaning. All connections are plug-in types and not interchangeable. The injector can be disassembled without special tools.
Our company supplies other related products of Gema, please see the following list:
| A | Conveying air check valve unit (red marking) - complete (incl. pos. 6, 8, 9 and 12) | 1007 780 |
| B | Supplementary air check valve unit (black marking) - complete (incl. pos. 7, 8, 9 and 13) | 1005 589 |
| C | Injector body - complete (incl.pos.1,2,10 and 11) | 1005 590 |
| 1 | Injector body (without pos. 2) | 1006 530 |
| 2 | O-ring - Ø 16x2 mm | 1007 794# |
| 3 | Insert sleeve - PTFE, complet | 1006 485# |
| 4 | Hose connection - Ø 10-12 mm, complete (incl. pos 4.1) | 1006 531 |
| 4.1 | O-ring - Ø 16x1.5 mm | 205 141# |
| 5 | Threaded sleeve | 1006 483 |
| 6 | Connector (conveying air) - NW 5.5 | 1004 366 |
| 7 | Connector (supplementary air) - NW 5.5 | 1004 367 |
| 8 | O-ring - Ø 11x1.5 mm | 1000 532# |
| 9 | Filter element - Ø 9/4x27 mm | 1003 698# |
| 10 | Nozzle | 1006 488 |
| 11 | Nozzle fixation- complete (incl.pos.11.1) | 1007 792 |
| 11.1 | O-ring - Ø8x1 mm | 1007 793# |
| 12 | Body (red) | 1004 369 |
| 13 | Body (black) | 1004 370 |
| 16 | Conveying air hose - Ø 8/6 mm (red | 103 500* |
| 17 | Supplementary air hose - Ø 8/6 mm (black) | 103 756* |
| 18 | Quick release coupling for conveying air hose - NW5-Ø 8 mm | 216 645 |
| 19 | Quick release coupling for supplementary air hose - NW5-Ø 8 mm | 216 637 |
Powder hose - 66 type, POE, Ø 16/11 mm, with conductive strip (standard | 105 139*# | |
Powder hose - 74 type, POE, Ø 15/10 mm, with conductive strip | 1001 673*# | |
Powder hose - 75 type, POE, Ø 18/12 mm, with conductive strip | 1001 674*# |

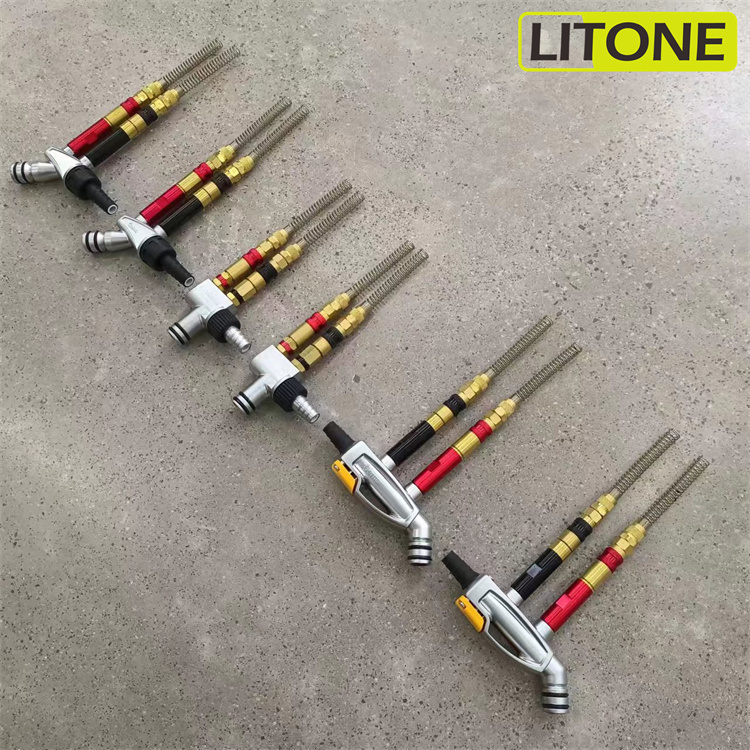

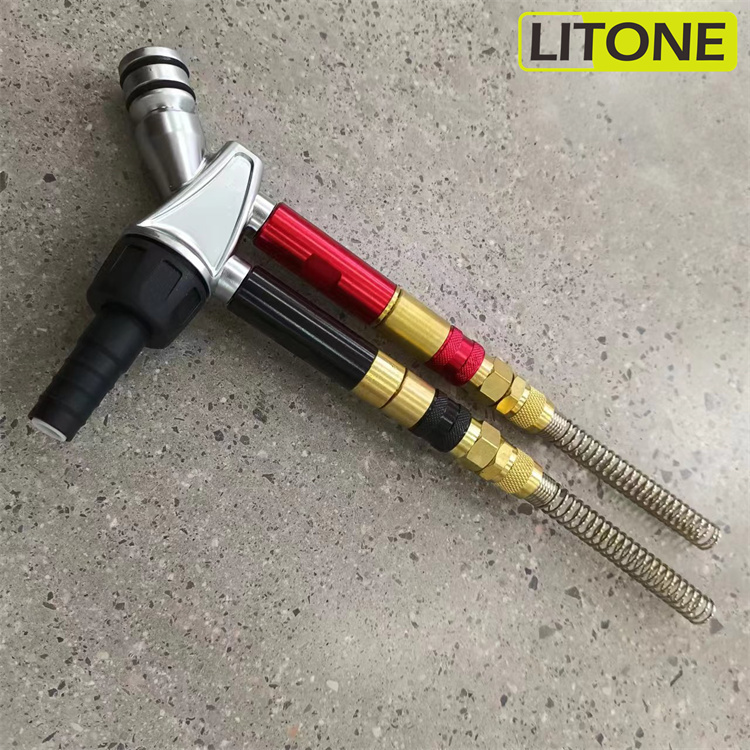

Product Photo
 |  |  |
