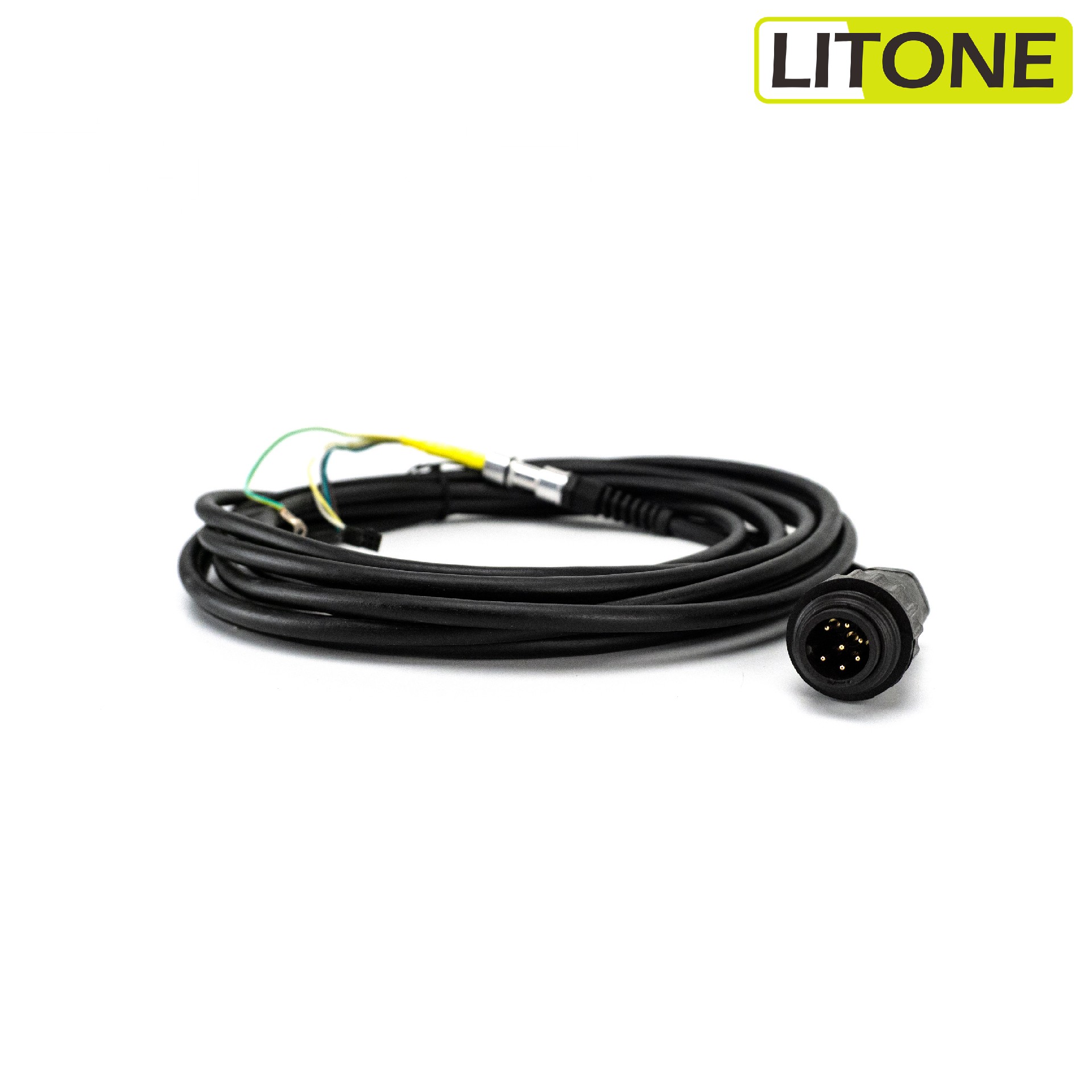

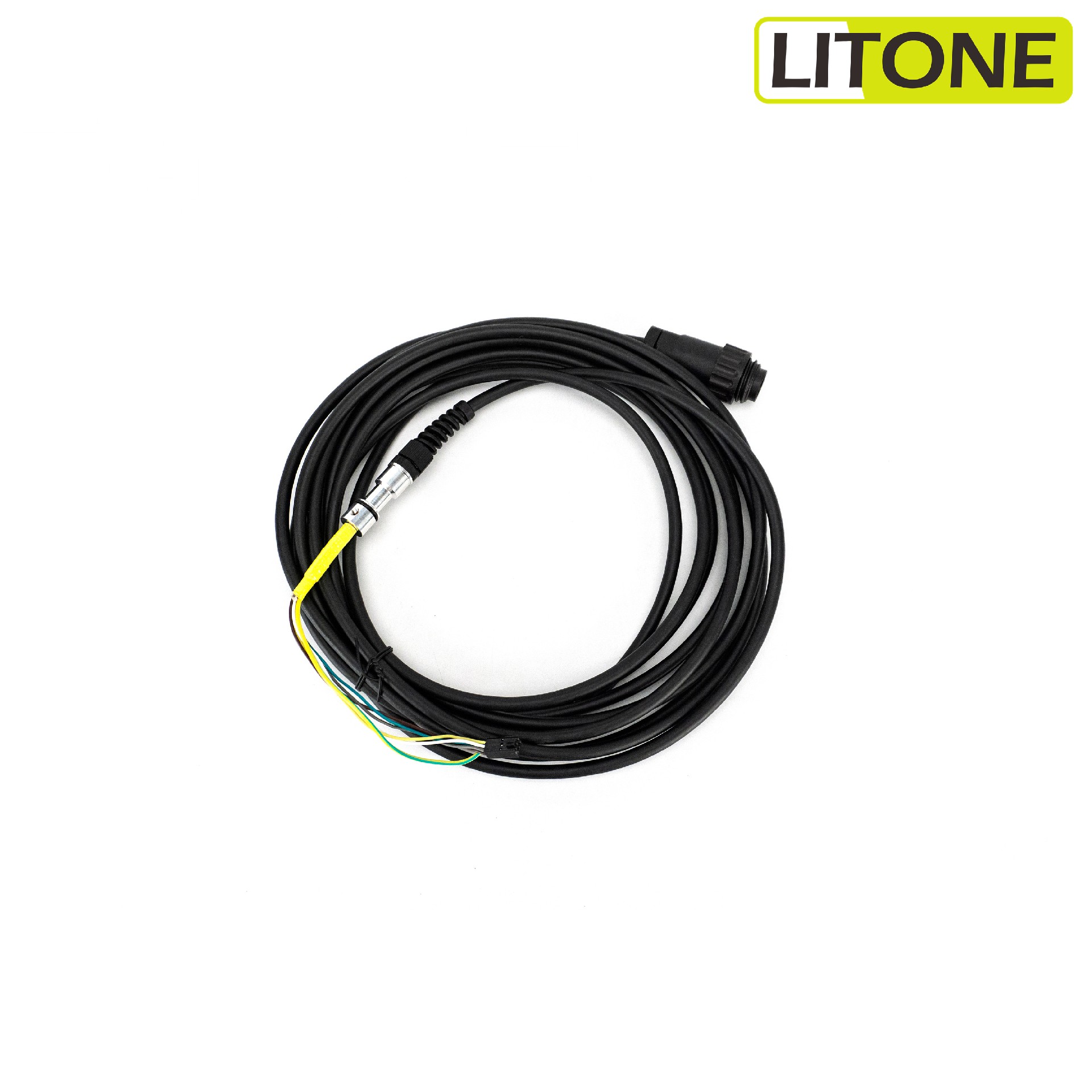

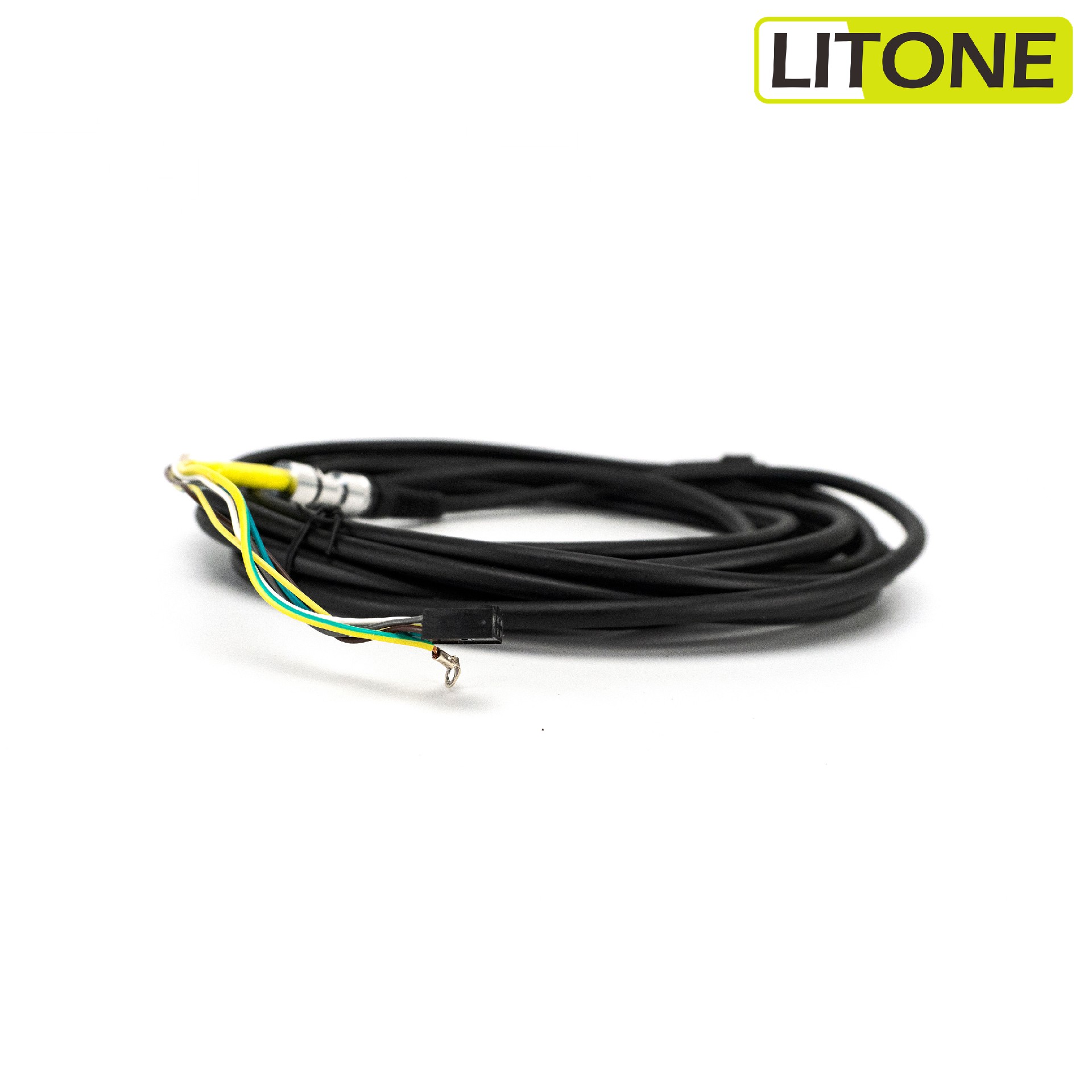

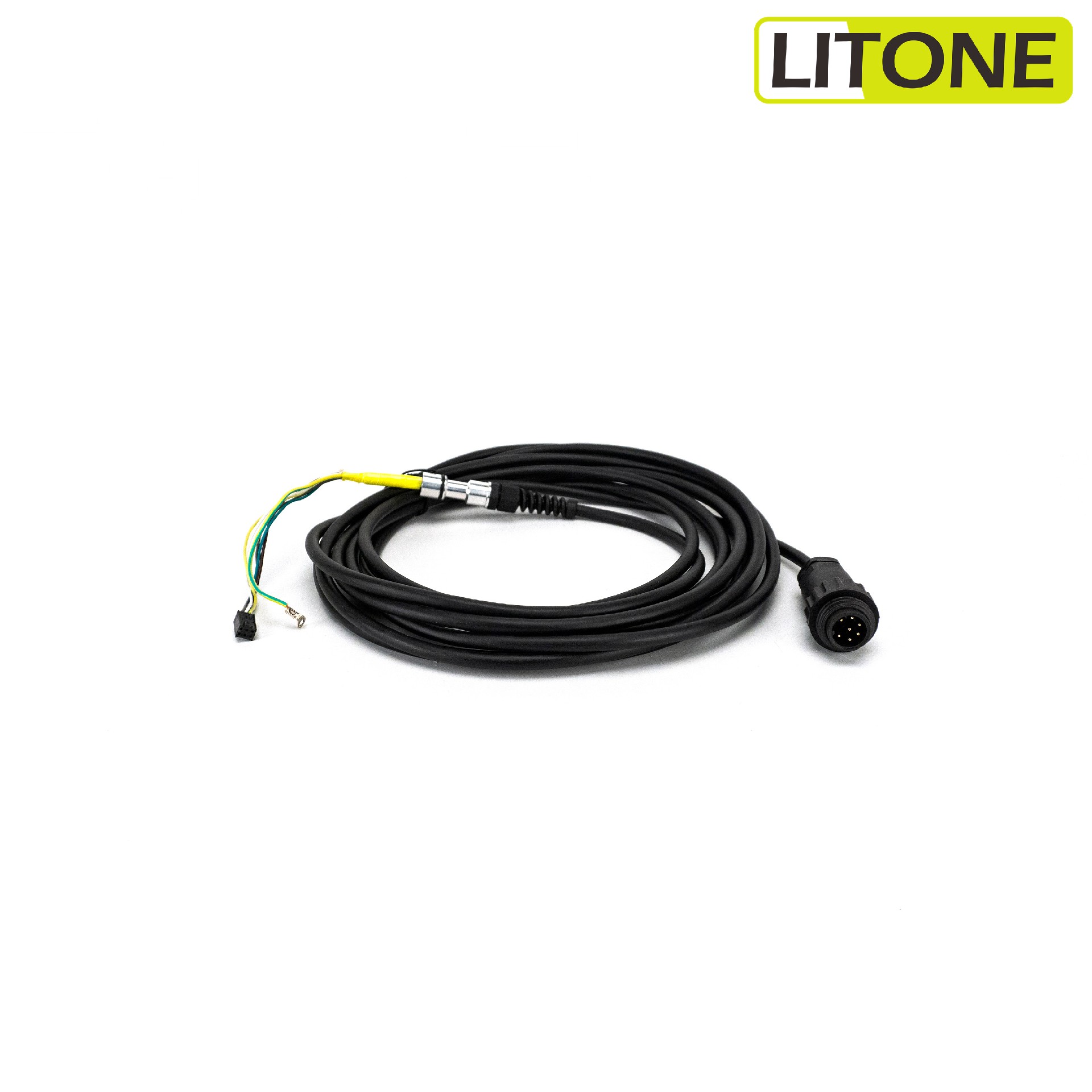

LITONE/ GEMA Manual Powder Coating Gun OptiSelect GM03 Spare Part Gun Cable 1007 964(NON-ONE), 6m

--PRODUCT DESCRIPTION--

1. Pure copper wire is used in the cable with strong conductivity.

2. Can effectively prevent the loss of static electricity

3. High flexibility, high temperature resistance, will not harden in winter, anti-aging, long service life

A	OptiSelect GM03 manual powder gun–complete negative polarity, incl. gun cable – 6 m, rinsing air hose – 6 m, flat jet nozzle, brush and parts kit, without powder hose	1008 070
	OptiSelect GM03 manual powder gun–complete positive polarity, incl. gun cable – 6 m, rinsing air hose – 6 m, flat jet nozzle, brush and parts kit, without powder hose	1008 073
B	Manual powder gun shaft OptiSelect GM03 (incl. cascade) with:
	Gun cable 2 m, negative polarity (–)	1007 971
	Gun cable 6 m, negative polarity (–)	1007 972
	Gun cable 12 m, negative polarity (–)	1007 973
	Gun cable 2 m, positive polarity (+)	1007 974
	Gun cable 6 m, positive polarity (+)	1007 975
	Gun cable 12 m, positive polarity (+)	1007 968

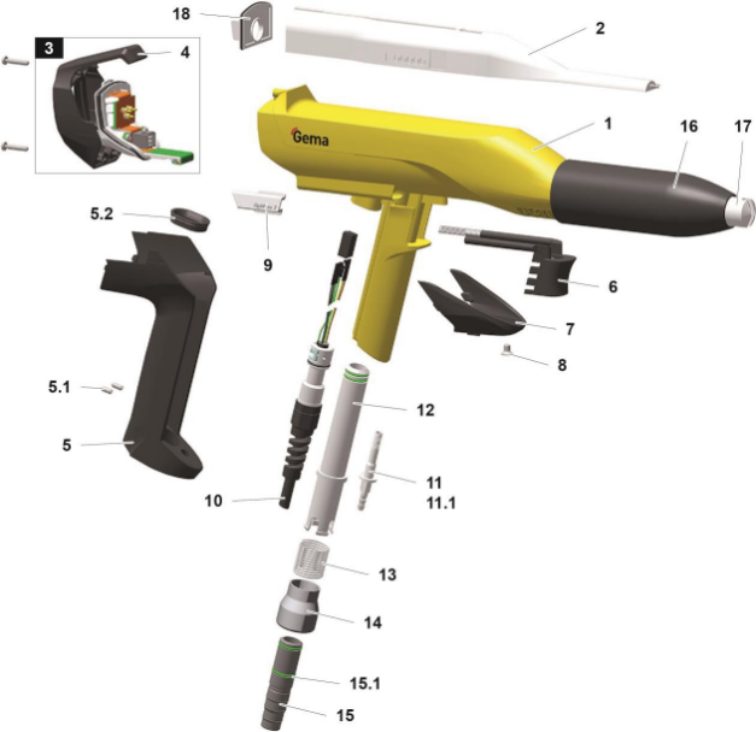

1	Gun body	1007 220
2	Cascade – complete, negative polarity	1007 231
3	Print holder – complete	1007 216
4	End plate with hook	1007 217
5	Grip – complete (incl. pos. 5.1 and 5.2)	1007 961
5.1	Grub screw – M3x8 mm	1008 157
5.2	Grip sealing	1007 633
6	Trigger – complete	1007 213
7	Trigger cover	1007 212
8	Countersunk-head screw – M4x6 mm	1000 845
9	SuperCorona connection	1007 238
10	Gun cable 2 m – complete	1007 963
	Gun cable 6 m – complete	1007 964
	Gun cable 12 m – complete	1007 965
11	Rinsing air connection	1000 804
11.1	Rinsing air hose	100 854*
12	Powder tube – complete	1007 958 #
13	Compression spring	1001 488
14	Clip ring	1007 960
15	Hose connection Ø 11-12 mm – complete (incl. pos 15.1)	1001 340 #
	Hose connection Ø 9-10 mm – complete (incl. pos 15.1)	1002 030 #
15.1	O-ring for pos. 15	1000 822 #
16	Threaded sleeve
17	Nozzle
18	Cascade space gasket	1007 635#
	Cleaning brush – Ø 12 mm	389765
	Parts set (not shown), consisting of:	1008302
	Flat jet nozzle NF21	1007 935#
	MultiSpray-Adapter NF08	1003 634#
	Cable clamp	303 070
	Hose connector – complete, for hose interior Ø 9-10 mm	1002 030
	Powder hose – Ø 10 mm (not shown)	1001 673*#
	Powder hose – Ø 11 mm (not shown)	105 139*#

--RELATED PRODUCTS--

OptiSelect GM03 manual powder gun  1008 070 (NON-OEM)	OptiGun GA03 Automatic powder gun  1010 198 (NON-OEM)	IG06 Injector pump 1007 780 (NON-OEM)

--PACKAGING & SHIPPING--

Packing:  High quality carton and wooden box

Delivery Time: Four to eight days after payment by air

--APPLICATION--

Powder Coating Machine for Metal surface.

Powder Coating Machine for Car wheel.

Powder Coating Machine for Bicycle frame.

Powder Coating Machine for Electrical Household Appliances.

Powder Coating Machine for Aerospace Area.

Powder Coating Machine for Fitness Equipment.

Powder Coating Machine for Track Traffic.

Powder Coating Machine for Medical Devices.

Powder Coating Machine for Petroleum Pipes, Valve.
