LITONE/ GEMA Manual Gun OptiSelect Pro GM04 1016 971 for Powder Coating( NON-OEM)
--PRODUCT DESCRIPTION--

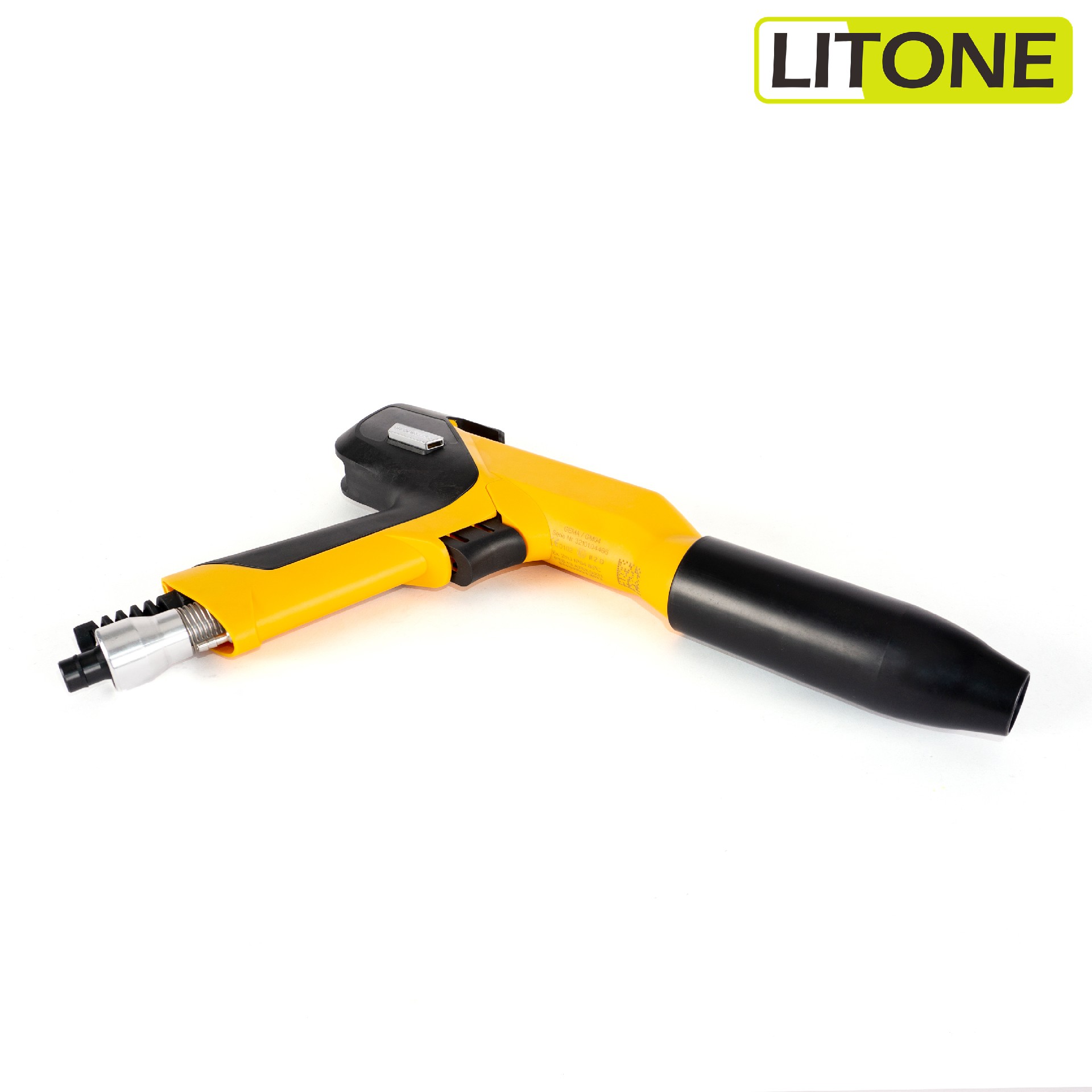

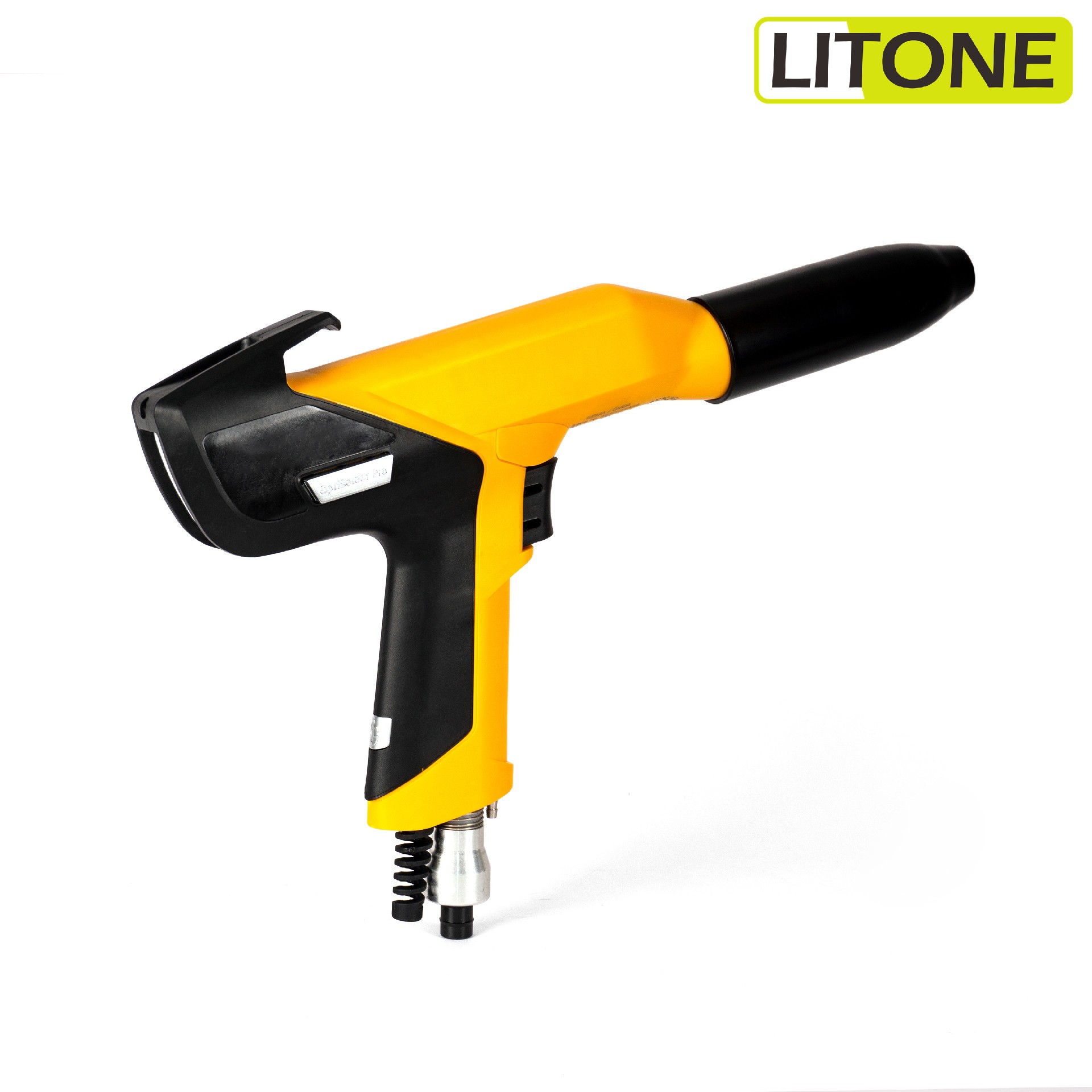

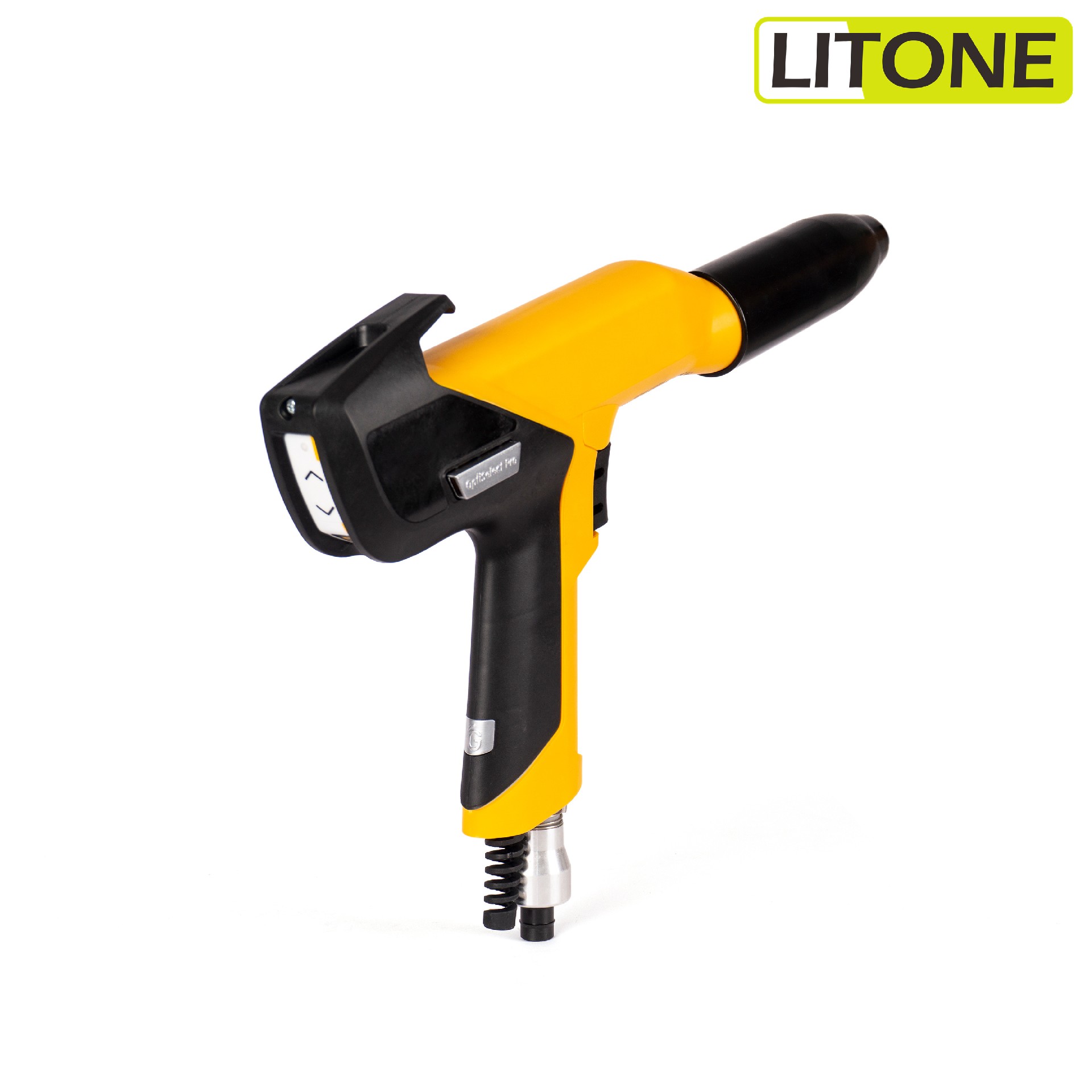

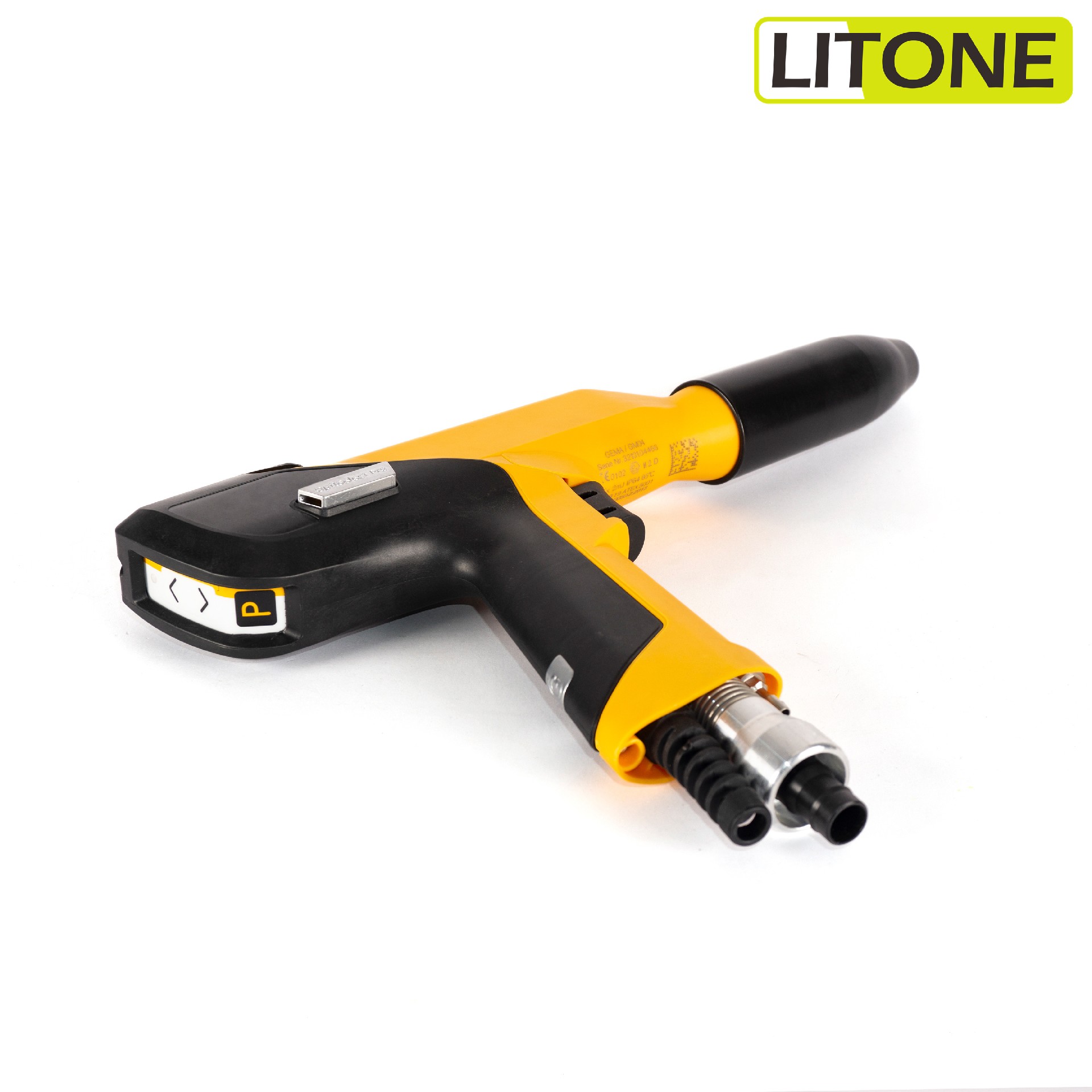

Manual gun powder coating gun optiSelect GM04 for Optiselect PRO powder coating equipment.
It is completely compatible with original Gema powder coating equipment.
100kv powerful manual spray guns provides efficient and longlasting work,
supply with round and flat spray nozzles to optimize application quality when coating different shape of metal parts.
* Cascade:
-Using special Japanese antistatic material, can effectively prevent high voltage loss
-Special processing technology, using irrigation and sealing under vacuum environment to ensure that there is no air in the cascade
* Gun Cable:
-Pure copper wire is used in the cable with strong conductivity.
-Can effectively prevent the loss of static electricity
-High flexibility, high temperature resistance, will not harden in winter, anti-aging, long service life
* Spray Nozzles:
-Made of pure Teflon material, non-stick powder, friction resistance, long service life
-The electrode seat contains a conductive ring made of conductive material, which has good conductivity
-The electrode holder contains glass glaze resistors.
The glass glaze resistors have a large resistance range, which can better transmit high voltage,
reduce high voltage loss, ensure powder charging rate, and have good stability.
 |  |  |
--TECHNICAL DATA--
Electrical data | |
| Nominal input voltage | eff. 10 V |
| Frequency | 18 kHz (average) |
| Nominal output voltage | 110 kV |
| Polarity | negative (optional positive) |
| Max. output current | 110 µA |
| High voltage display | with LED |
| Ignition protection | Ex 2 mJ T6 |
| Temperature range | 5 °C - +40 °C (+41 °F - +104 °F) |
| Max. surface temperature | 85 °C (+185 °F) |
| Protection type | IP64 |
Dimensions | |
| Weight | 550 g |
Processible powders | |
| Plastic powder | yes |
| Metallic powder | yes |
| Enamel powder | no |
 | ||
| A | OptiSelect Pro GM04 manual powder gun – complete incl. flat jet nozzle, brush and parts kit, without powder hose, with: | |
| gun cable 6 m, rinsing air hose 6 m, negative polarity (–) | 1016 971 | |
| gun cable 12 m, rinsing air hose 12 m, negative polarity (–) | 1016 972 | |
| gun cable 6 m, rinsing air hose 6 m, positive polarity (+) | 1016 973 | |
| gun cable 12 m, rinsing air hose 12 m, positive polarity (+) | 1016 974 | |
| B | Manual powder gun shaft OptiSelect Pro GM04 (incl. cascade) with: | |
| Gun cable 6 m, negative polarity (–) | 1018 700 | |
| Gun cable 12 m, negative polarity (–) | 1018 701 | |
| Gun cable 6 m, positive polarity (+) | 1018 702 | |
| Gun cable 12 m, positive polarity (+) | 1018 703 | |
| 1 | Gun body – complete | 1017 680 |
| 2 | Cascade – complete, negative polarity, incl. pos. 3 | 1016 911 |
| Cascade – complete, positive polarity, incl. pos. 3 | 1016 912 | |
| 3 | Buffer | 1017 704 |
| 4 | Print holder – complete | 1017 690 |
| 5 | Rear part | 1017 683 |
| 6 | Trigger – complete | 1017 686 |
| 7 | Trigger cover | 1017 688 |
| 8 | Countersunk-head screw – M4x6 mm | 1017 698 |
| 9 | SuperCorona connection | 1017 684 |
| 10 | Gun cable 6 m – complete | 1016 952 |
| Gun cable 12 m – complete | 1016 953 | |
| 11 | Rinsing air connection | 1017 656 |
| 11.1 | Rinsing air hose | 100 854* |
| 12 | Powder tube – complete | 1007 958 # |
| 13 | Compression spring | 1001 488 |
| 14 | Clip ring | 1007 960 |
| 15 | Hose connection Ø 11-12 mm – complete (incl. pos 15.1) | 1001 340 # |
| Hose connection Ø 9-10 mm – complete (incl. pos 15.1) | 1002 030 # | |
| 15.1 | O-ring for pos. 15 | 1000 822 # |
| 16 | Threaded sleeve | |
| 17 | Nozzle | |
| 18 | Cable lock | 1017 685 |
| 19 | Screw – M3x20 mm | 1017 674 |
| 20 | Contact stri | 1018 707 |
| 21 | Fitting bush | 1018 708 |
| 22 | Cascade buffer | 1023 235 |
| Cleaning brush – Ø 12 mm (not shown) | 389 765 | |
| Parts set (not shown), consisting of: | 1008 302 | |
| Multi-spray adapter | 1003 634# | |
| Cable clamp | 303 070 | |
| Hose connector – complete, for hose interior Ø 9-10 mm | 1002 030 | |
| Powder hose – Ø 10 mm (not shown) | 1001 673*# | |
| Powder hose – Ø 11 mm (not shown) | 105 139*# | |
