High quality Gema GM03 cascade 1007 231 for spray gun
LITONE GM03 MANUAL SPRAY GUN CASCADE▊PRODUCT INTRODUCTION ▊▋PRODUCT DATA ▋DIMENSIONSSize1100mm*632mm*2105mmWeight50kg-80kgPNEUMATIC DATAMin.input pressure(dynamical)6 barMax.input pressure10 barMax.wa···
Features

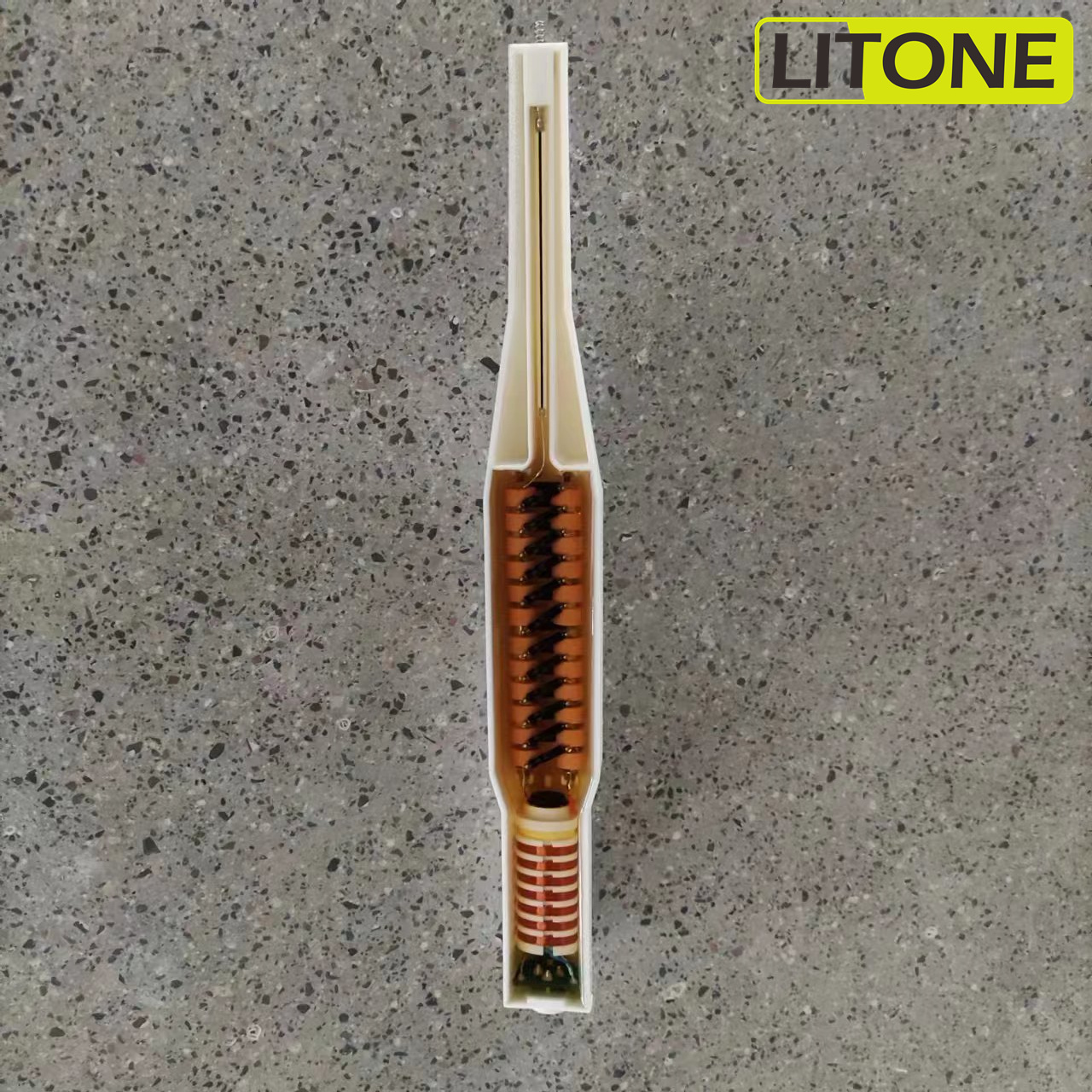

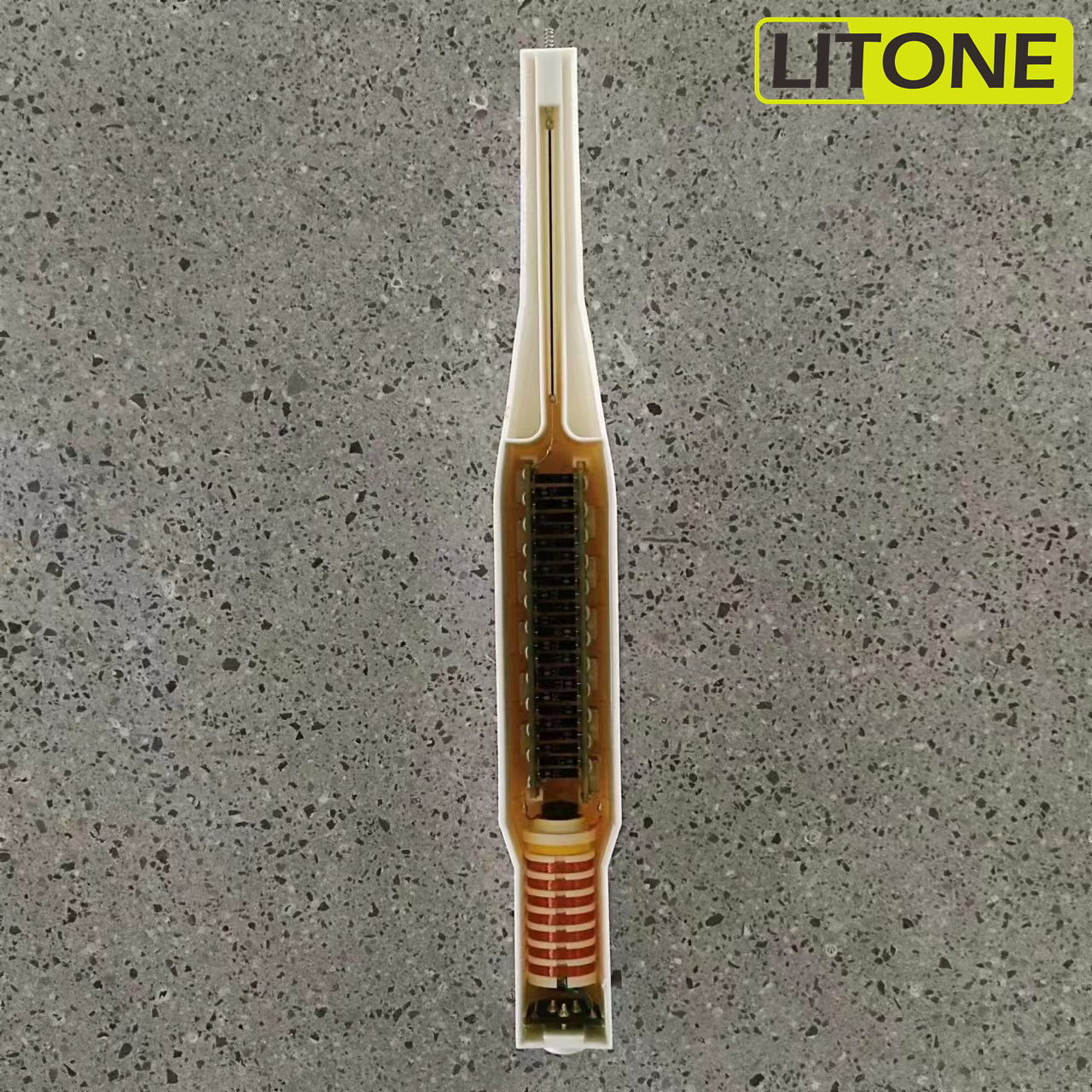

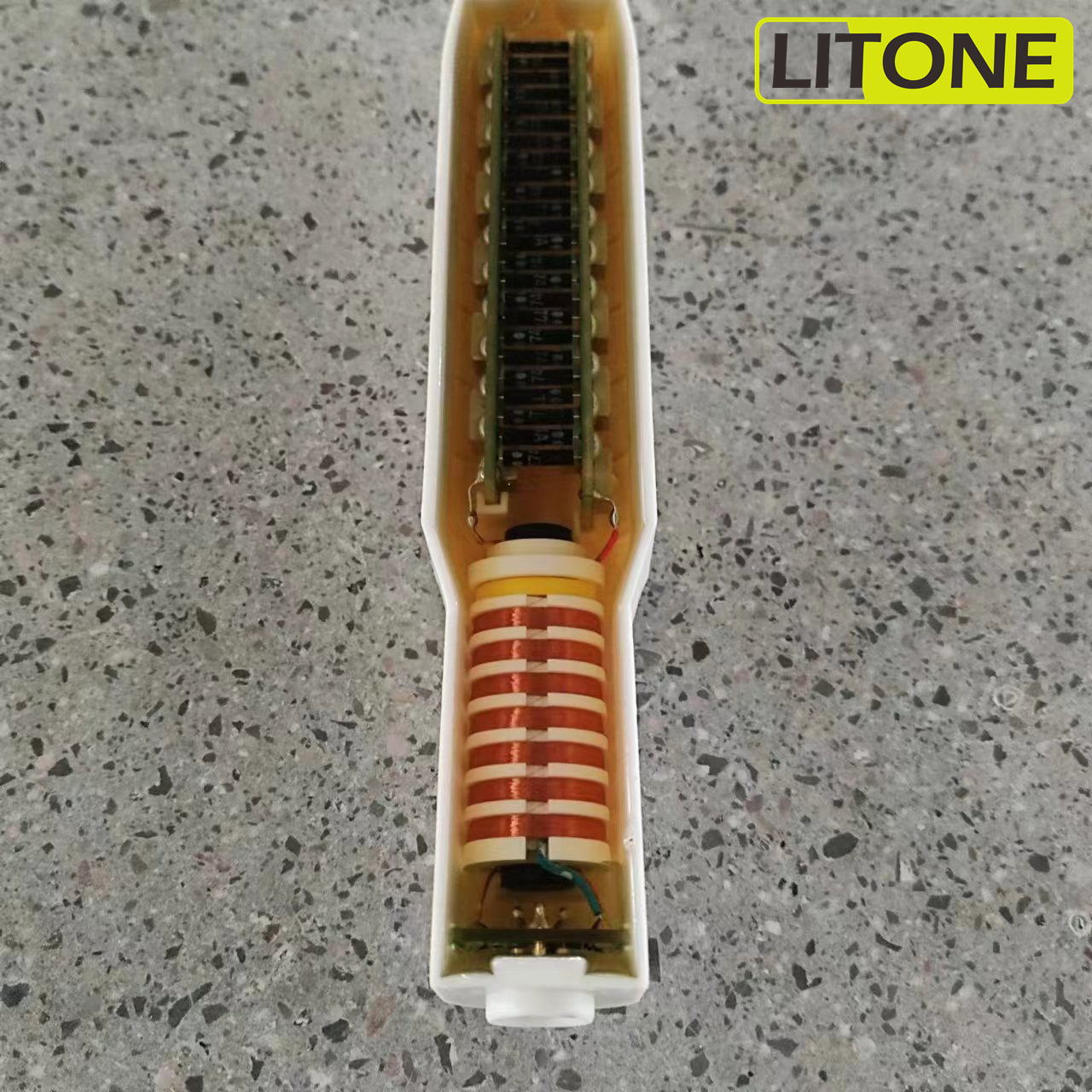

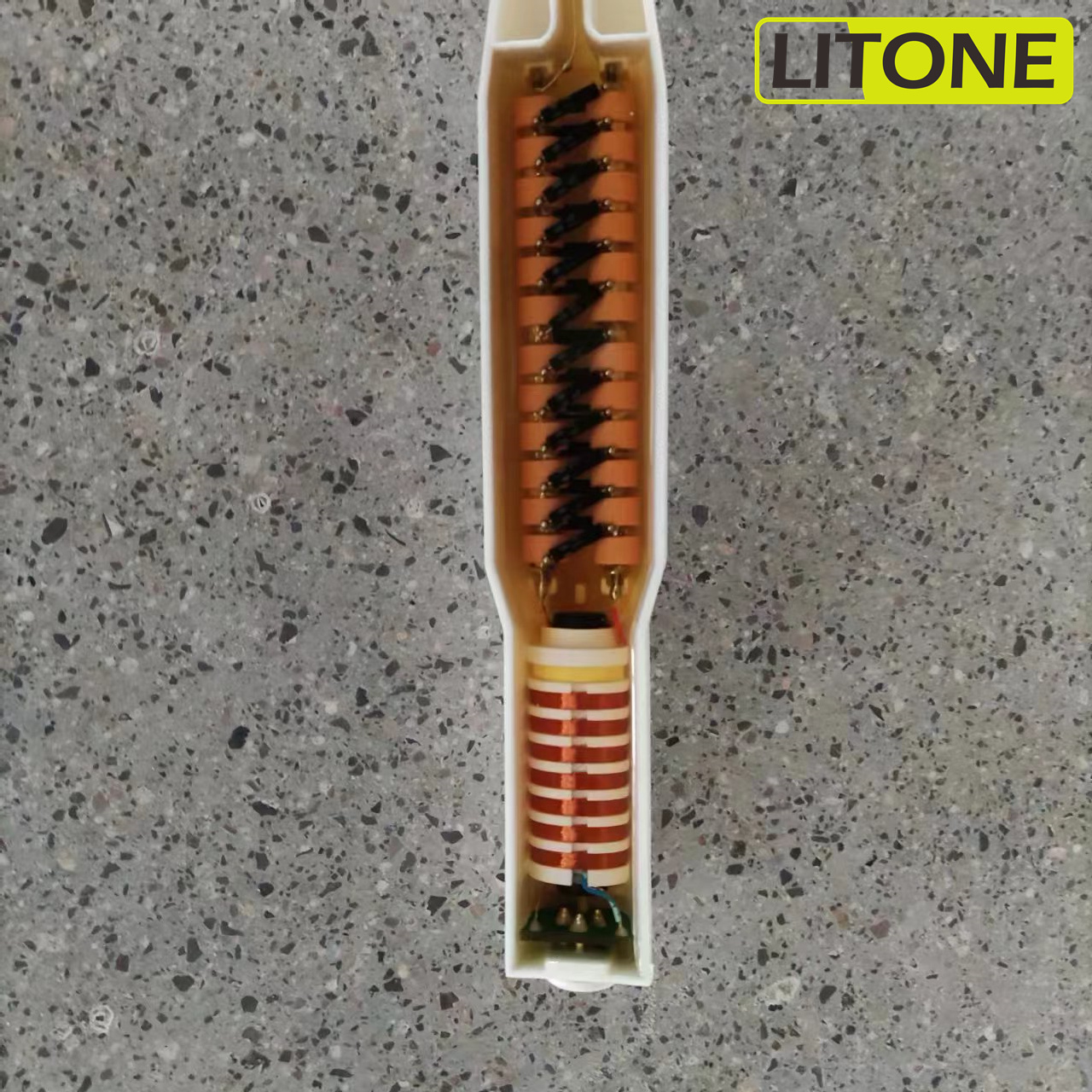

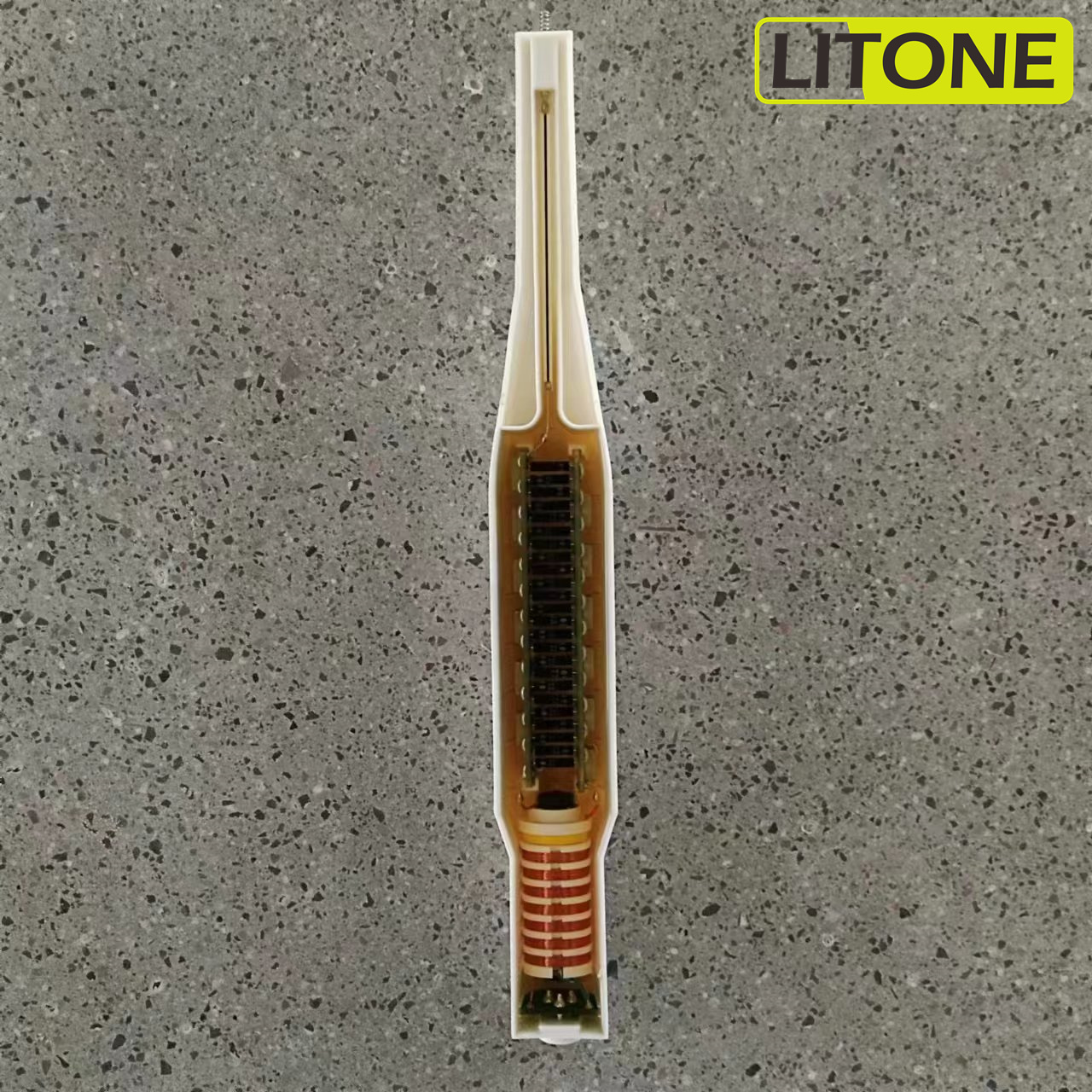

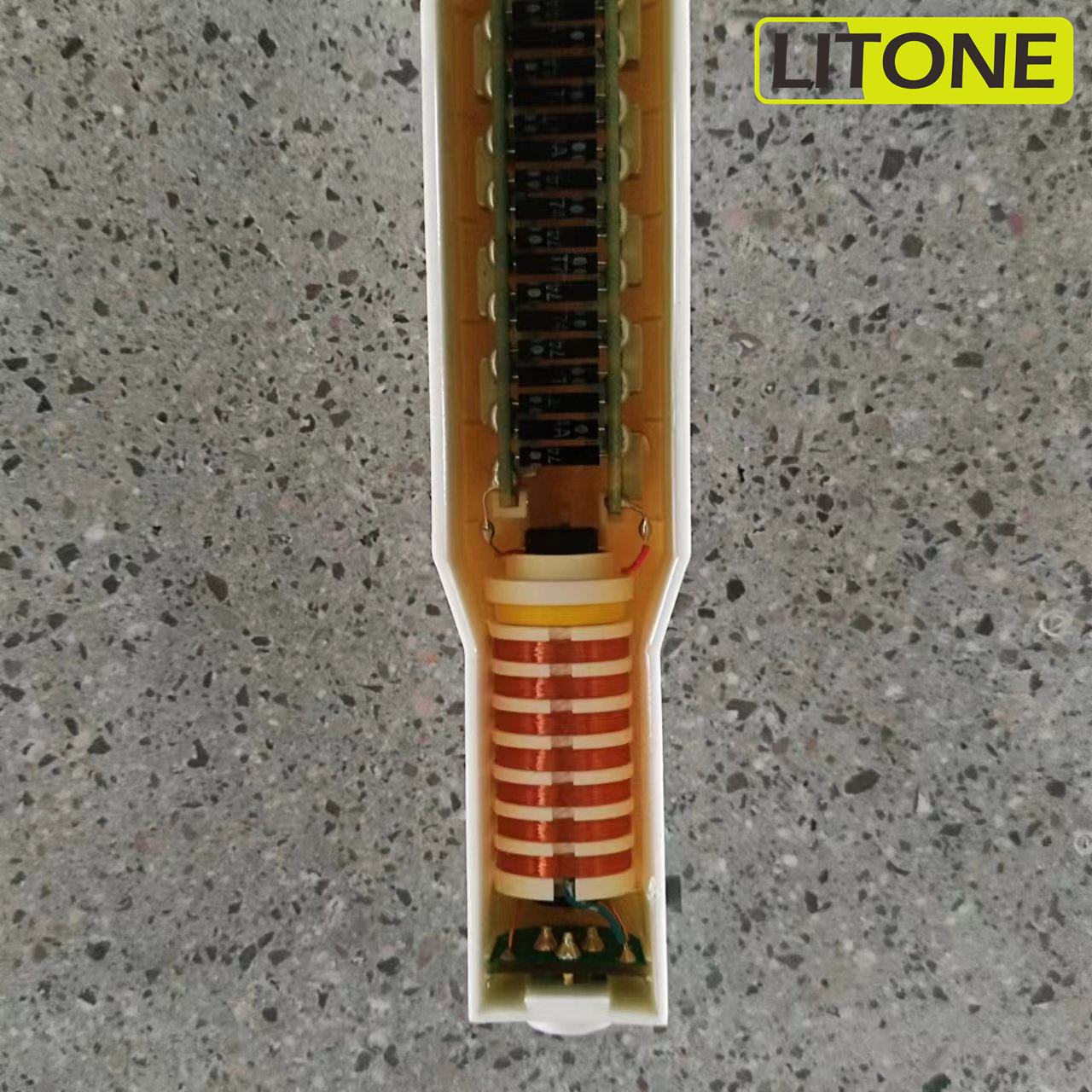

LITONE GM03 CASCADE 1007 231 FOR MANUAL SPRAY GUN
▊PRODUCT INTRODUCTION ▊
High-quality GM03 cascade(1007 231) , there are 2 different configurations:
1. SMD capacitor + identifiable chip
2. Cylindrical capacitor + identifiable chip
SMD capacitor + identifiable chip, can replace the original GM cascade
 |  |
 |  |
1. Strict selection of materials
Imported chips have good performance, wear resistance and durability, and have a long service life
2. Exquisite workmanship
Increase the usage rate, reduce the electrostatic diffusion range, and improve the powder charging rate
3. Good durability
One-year warranty, carefully selected internal parts, safe to use
Factory direct sales, preferential price

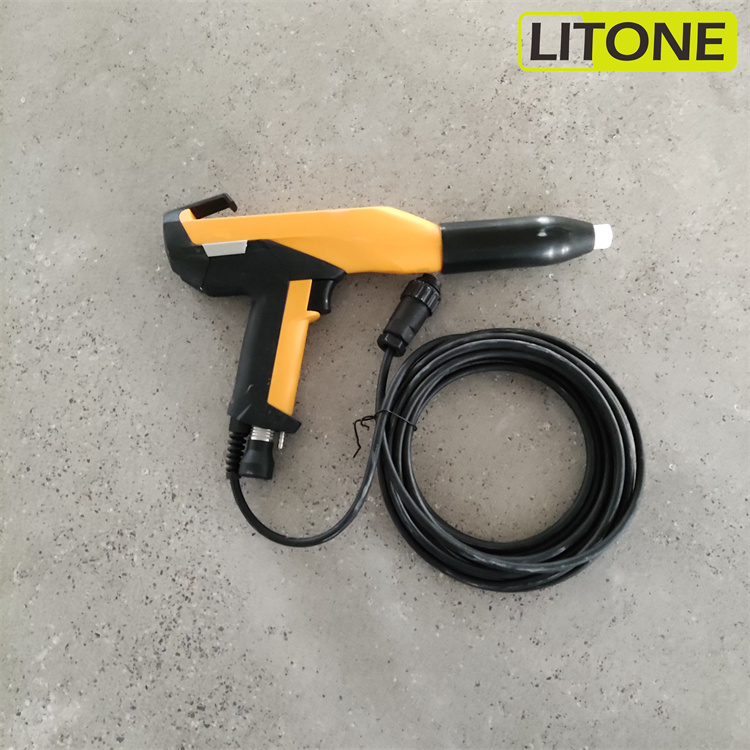

Matching spray gun :GM03 Spray Gun
Our company supplies other related products of Gema, please see the following list:
| ||
| A | OptiSelect GM03 manual powder gun – complete negative polarity, incl. gun cable – 6 m, rinsing air hose – 6 m, flat jet nozzle, brush and parts kit, without powder hose | 1008 070 |
OptiSelect GM03 manual powder gun – complete positive polarity, incl. gun cable – 6 m, rinsing air hose – 6 m, flat jet nozzle, brush and parts kit, without powder hose | 1008 073 | |
| B | Manual powder gun shaft OptiSelect GM03 (incl. cascade) with: | |
| Gun cable 2 m, negative polarity (–) | 1007 971 | |
| Gun cable 6 m, negative polarity (–) | 1007 972 | |
| Gun cable 12 m, negative polarity (–) | 1007 973 | |
| Gun cable 2 m, positive polarity (+) | 1007 974 | |
| Gun cable 6 m, positive polarity (+) | 1007 975 | |
| Gun cable 12 m, positive polarity (+) | 1007 968 | |
| 1 | Gun body | 1007 220 |
| 2 | Cascade – complete, negative polarity | 1007 231 |
| Cascade – complete, positive polarity | 1007 232 | |
| 3 | Print holder – complete | 1007 216 |
| 4 | End plate with hook | 1007 217 |
| 5 | Grip – complete (incl. pos. 5.1 and 5.2) | 1007 961 |
| 5.1 | Grub screw – M3x8 mm | 1008 157 |
| 5.2 | Grip sealing | 1007 633 |
| 6 | Trigger – complete | 1007 213 |
| 7 | Trigger cover | 1007 212 |
| 8 | Countersunk-head screw – M4x6 mm | 1000 845 |
| 9 | SuperCorona connection | 1007 238 |
| 10 | Gun cable 2 m – complete | 1007 963 |
| Gun cable 6 m – complete | 1007 964 | |
| Gun cable 12 m – complete | 1007 965 | |
| 11 | Rinsing air connection | 1000 804 |
| 11.1 | Rinsing air hose | 100 854* |
| 12 | Powder tube – complete | 1007 958 # |
| 13 | Compression spring | 1001 488 |
| 14 | Clip ring | 1007 960 |
| 15 | Hose connection Ø 11-12 mm – complete (incl. pos 15.1) | 1001 340 # |
| Hose connection Ø 9-10 mm – complete (incl. pos 15.1) | 1002 030 # | |
| 15.1 | O-ring for pos. 15 | 1000 822 # |
| 16 | Threaded sleeve | |
| 17 | Nozzle | |
| 18 | Cascade space gasket | 1007 635# |
| Cleaning brush – Ø 12 mm | 389 765 | |
| Parts set (not shown), consisting of: | 1008 302 | |
| Flat jet nozzle NF21 | 1007 935# | |
| MultiSpray-Adapter NF08 | 1003 634# | |
| Cable clamp | 303 070 | |
| Hose connector – complete, for hose interior Ø 9-10 mm | 1002 030 | |
| Powder hose – Ø 10 mm (not shown) | 1001 673*# | |
| Powder hose – Ø 11 mm (not shown) | 105 139*# | |
▋RELATED PRODUCTS ▋
 |  |  |
Flex-2L Spraying Machine | CG09 LCD Control unit | Flex-2F Spraying Machine |
▋PACKAGING & SHIPPING ▋
We ship within 5-10 working days after we receive your payment.
Packed in high-quality wooden cases or cartons, shipped by air or sea.
Note: Wooden boxes need to be charged separately
Our company Litone paint has 4 shipping methods:
1. The product arrived at the airport by air, you should go to the airport to pick up your product
2. The land transport products arrive at the train station or bus station, you should go there to pick up your products
3. Sea products arrive at the side of the ship, you should go there to pick up your products
4. The international express machine can provide door-to-door service, you don't need to pick up the goods
▋APPLICATION ▋
 | Electrostatic powder coating machine applied to auto parts |
▋LITONE SERVICE ▋
WeiFang Litone Machinery CO.,LTD. specialized in producing and exporting electrostatic powder coating equipment.
We not only supply the high-quality coating equipment,but also the best service.
Our Service:
1. Technology consult service
2. After market service
3. Warranty service
4. OEM service
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.
▋FAQ ▋
1. Who are we?
We are based in Shandong, China, start from 2012,sell to North America(25.00%),Southeast Asia(10.00%),South Asia(10.00%),Eastern Asia(10.00%),Mid East(6.00%),Africa(5.00%),Domestic Market(5.00%),Northern Europe(5.00%),Western Europe(5.00%),Southern Europe(5.00%),South America(5.00%),Central America(4.00%),Eastern Europe(3.00%),Oceania(2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Powder coating machine, powde coating line,powder coating gun,powder coating equipment parts
4. Why should you buy from us not from other suppliers?
Our company has more than 10 years of experience in electrostatic spraying industry, and can provide customers with various complex spraying solutions and best services, including: spraying machine, spray gun, spray room, etc
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DDU;
Accepted Payment Currency: USD,EUR,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;
Language Spoken: English,Chinese,Spanish,German,Russian.
▋CONTACT ▋
Weifang Litone Machinery Co., Ltd. is a leading supplier in the field of electrostatic powder coatings worldwide.
From simple manual coating to fully automatic powder coating, our company provides solutions that can meet the high requirements of customers from all over the world in a wide range of industrial fields.
These technologically advanced, high-quality equipment and systems are developed and manufactured at Litone's headquarters in Weifang, China.
Customers can use the most advanced coating laboratory for coating experiments.
These findings are then integrated into the design of complex coating systems to tailor solutions for customers. Affiliated companies in Germany, the United Kingdom, the United States, Italy, France, India, Spain and Mexico and an extensive international distributor network in more than 60 countries/regions sell products to a wide range of industrial users.
