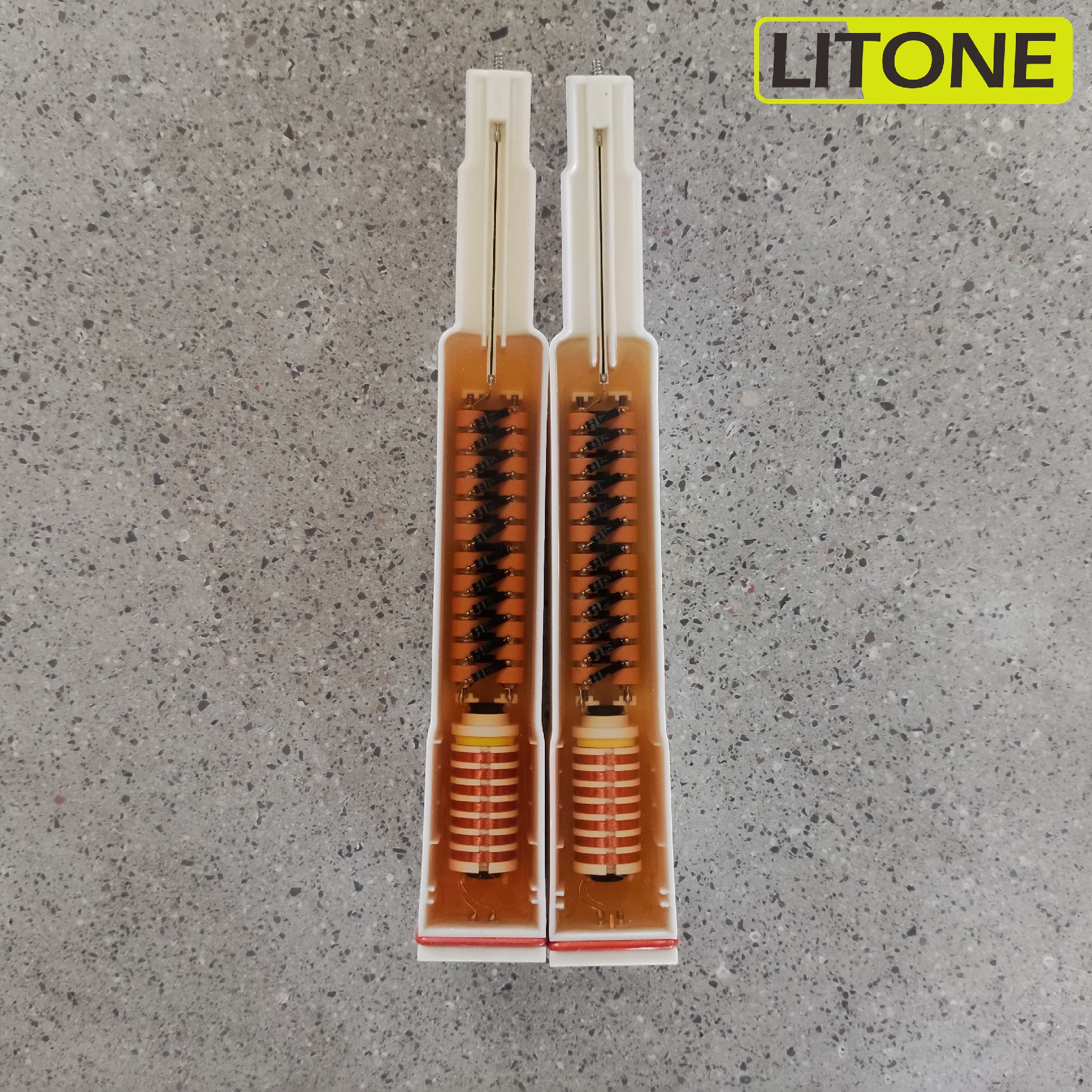

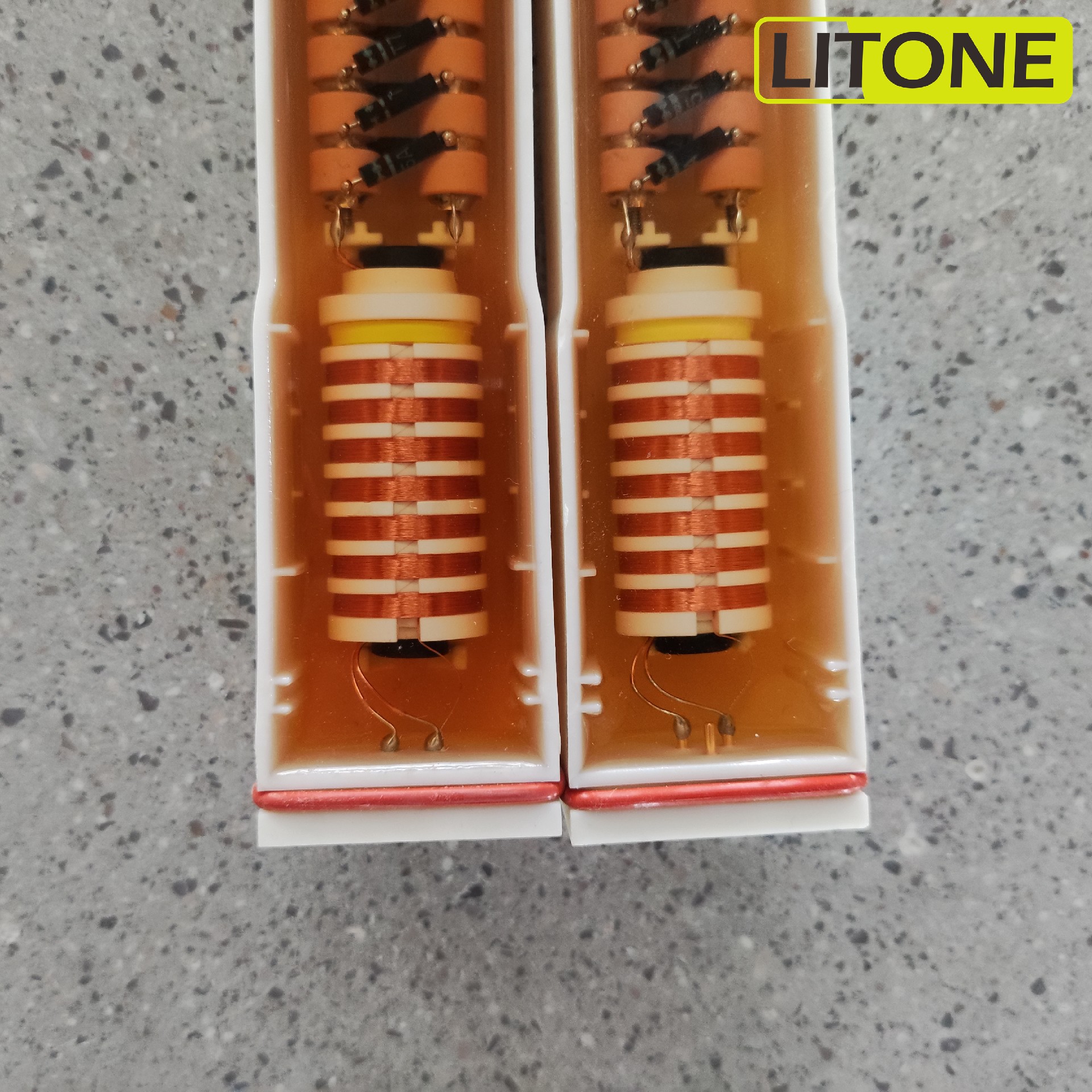

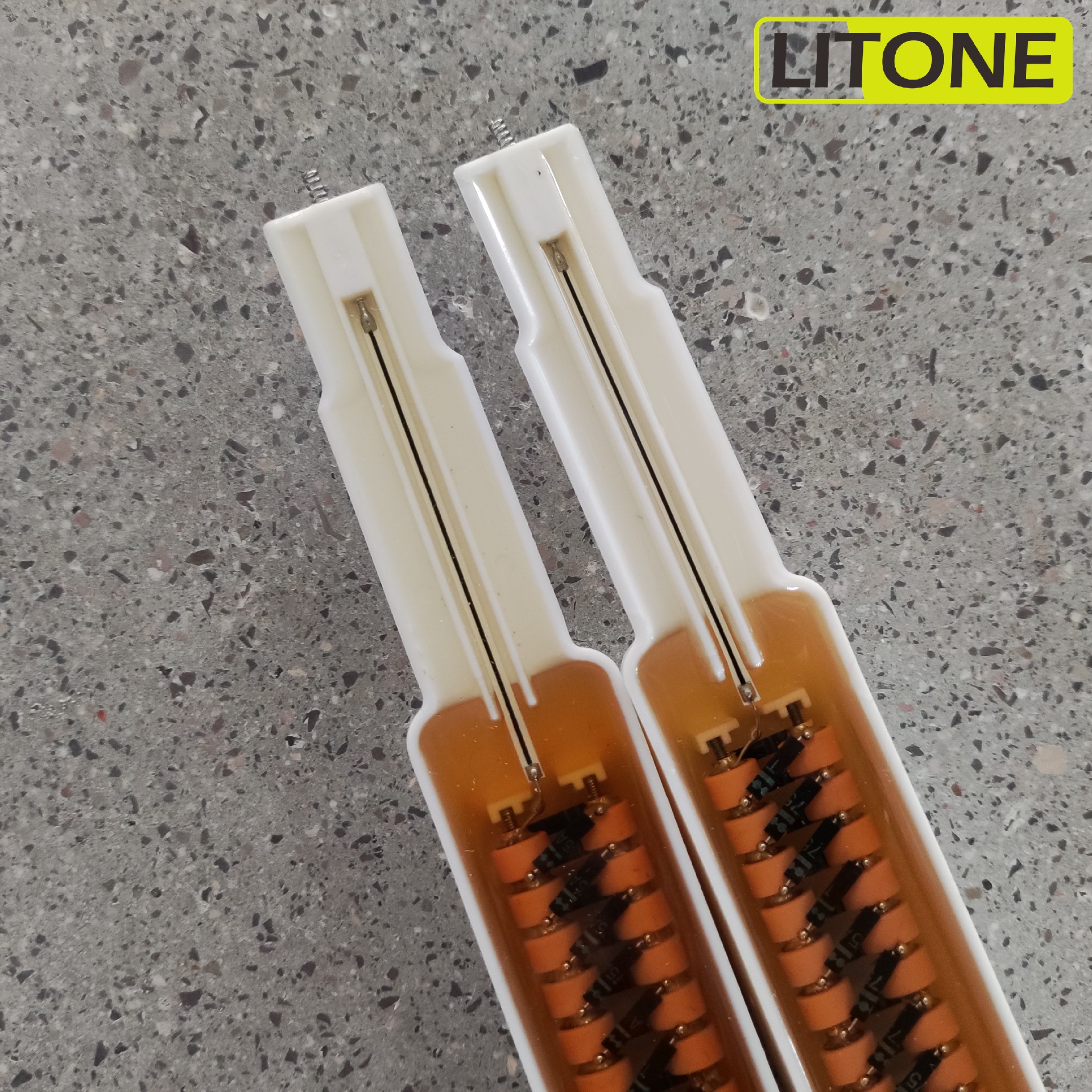

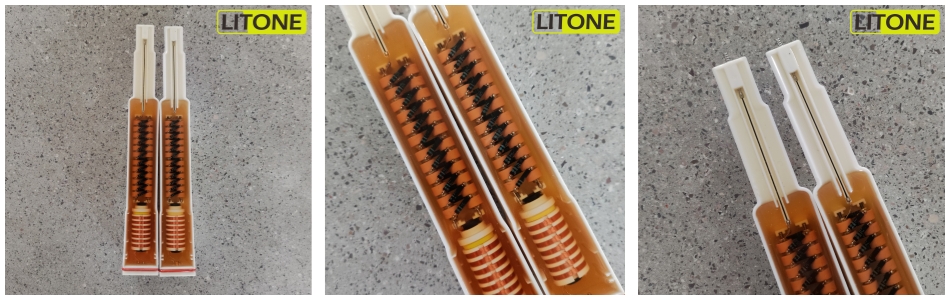

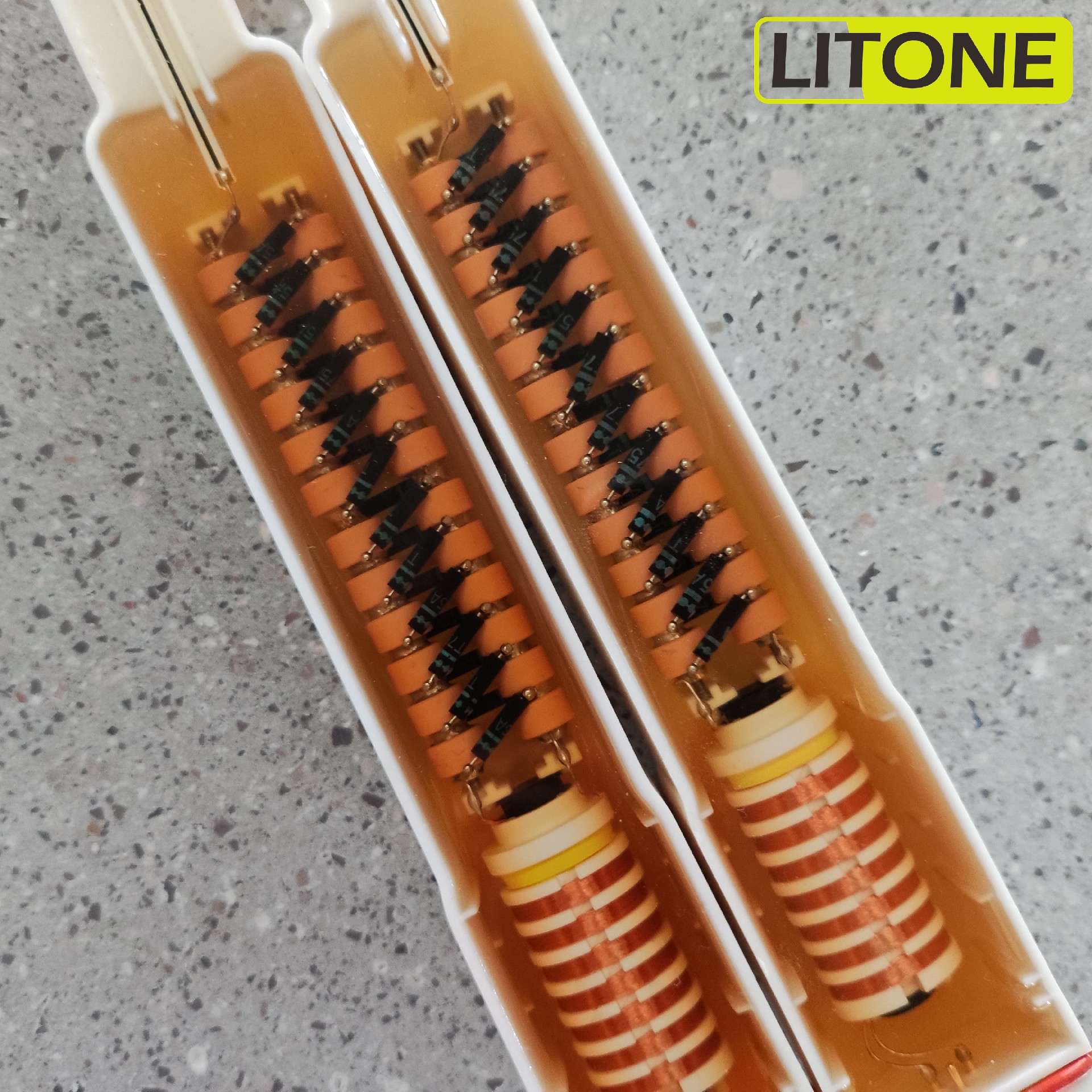

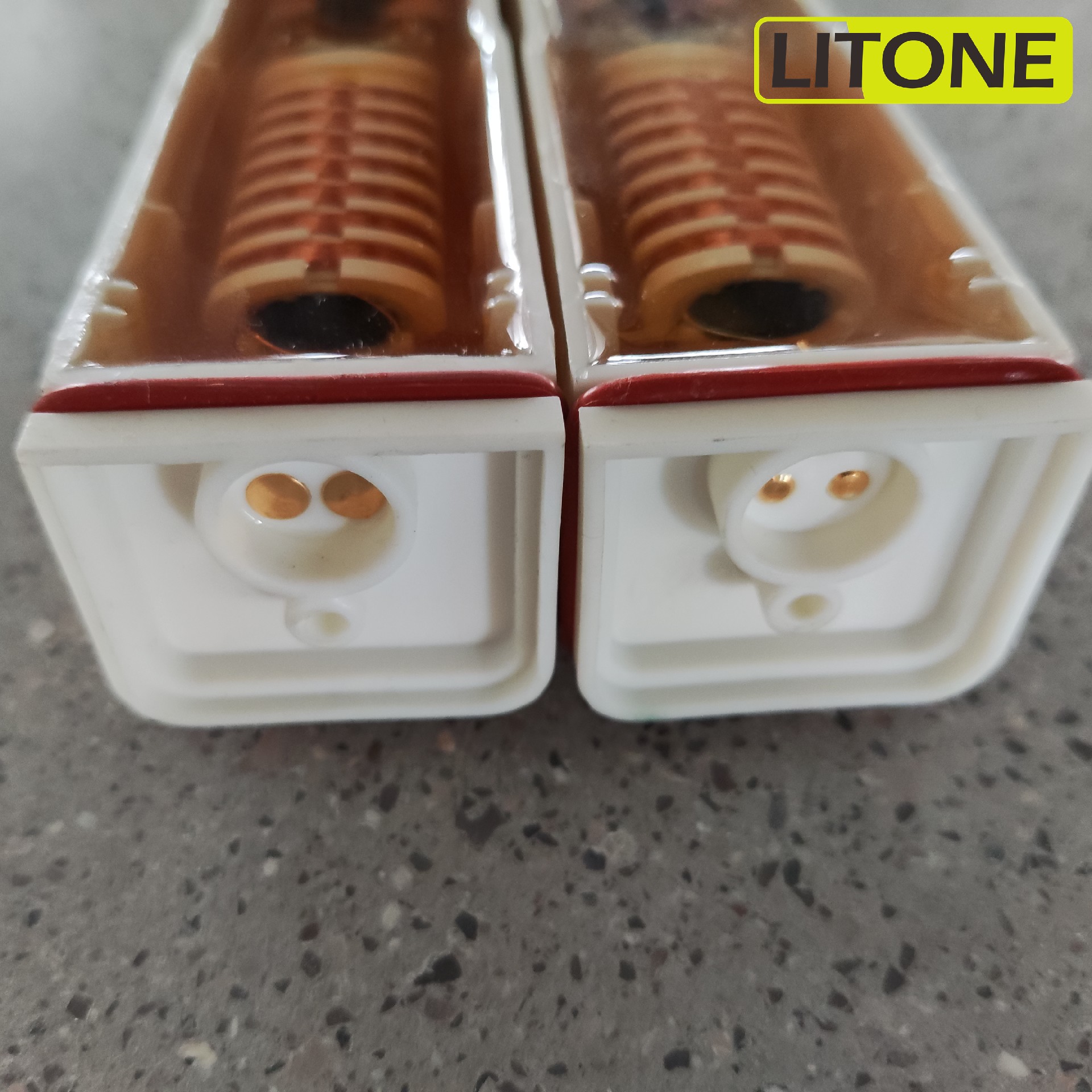

LITONE/ GEMA Auto Powder Coating Gun OptiGun GA02 Spare Part Cascade 393 703 (NON-OEM)
LITONE/ GEMA Auto Powder Coating Gun OptiGunGA02 Spare Part Cascade 393 703 (NON-OEM)[PRODUCT DESCRIPTION]- Replacement parts, NON-OEM, but 100% interchangeable with original parts.- Use high quality ···
Features
LITONE/ GEMA Auto Powder Coating Gun OptiGun GA02 Spare Part Cascade 393 703 (NON-OEM)
[PRODUCT DESCRIPTION]
- Replacement parts, NON-OEM, but 100% interchangeable with original parts.
- Use high quality material and components for longer life and reliable performance.
- Large quantity in stock.
- Nozzles, extensions, cascades, injectors, sleeves, powder hose, powder tube, powder hopper, all powder coating parts you can find here!
- We accept to produce custom spare parts as you required.
Model | GA02 | Feature | Durable |
Part Number | 393 703 | Polarity | Negative |
Application | GA02 Electrostatic powder coating gun | Function | To generate high static |
Material | Plastics and resins | Connection | Plug-in |
Size | Standard | Color | Transparent |

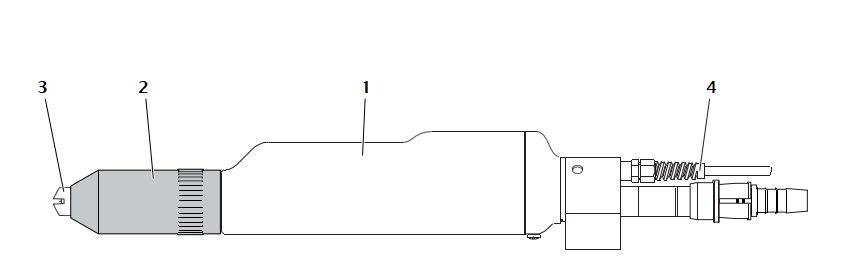

| OptiGun 2-A Automatic powder gun - complete, negative polarity, incl. pos. 1-6 | 393 568 | |
| OptiGun 2-A Automatic powder gun - complete, positive polarity, incl. pos. 1-6 | 393 576 | |
| 1 | Powder gun body OptiGun 2-A - complete, negative polarity | 393 649 |
| Powder gun body OptiGun 2-A - complete, positive polarity | 393 657 | |
| 2 | Threaded sleeve - see "Nozzle combinations" spare parts list | |
| 3 | Flat jet nozzle - see "Nozzle combinations" spare parts list | |
| 4 | Gun cable - complete, 20 m (65.61 ft), see also "Gun cable" spare parts list | 393 827 |
| 5 | Parts set (not shown), consisting of: | 385 670 |
| Cable binder with Velcro closure | 303 070 | |
| Cylinder screw - M8x50 mm | 235 113 | |
| Cap screw - M4x5 mm | 216 763 | |
| Washer - Ø 8.4/20x2 mm | 215 880 | |
| Quick release coupling - NW5, Ø 6 mm | 200 840 | |
| 6 | Cleaning brush - Ø 12 mm (not shown) | 389 765 |
| 7 | Powder hose - Ø 16/11 mm (not shown) | 103 012* |
| 8 | Rinsing air hose - Ø 6/4 mm (not shown) | 103 144* |

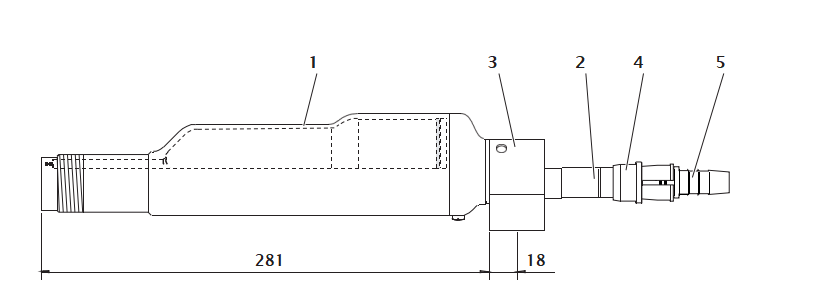

| 1 | OptiGun 2-A shaft - complete, negative polarity (see "Shaft" spare parts list) | 393 665 |
| OptiGun 2-A shaft - complete, positive polarity (see "Shaft" spare parts list) | 393 673 | |
| 2 | Powder tube - complete | 385 182# |
| 3 | Powder gun attachment | 382 817 |
| 4 | Clamp sleeve | 358 584 |
| 5 | Hose connection - complete | 362 670# |
| 5.1 | O-ring for pos. 5 (not shown) | 232 670# |
Input voltage | 10 V eff. |
Frequency | approx. 18 kHz |
Max. output voltage | 100 kV |
Polarity | negative (optional positive) |
Max. output current | 100 μA |
High voltage display | by LED |
Ignition protection | Ex 2 mJ T6 |
Temperature range | 0°C - +40°C (+32°F - +104°F) |
Max. operating temperature | 85°C (+185°F) |
[RELATED PRODUCTS]
 |  |  |
OptiGun GA02 393 568 (NON-OEM) | CG06+GA02+IG02 (NON-OEM) | Control Unit CG07+GM02+IG02 (NON-OEM) |
[PACKAGING & SHIPPING]
--Packing: High quality carton and wooden box
--Delivery Time: Four to eight days after payment by air
[APPLICATION] | Powder Coating Machine for Metal surface.Powder Coating Machine for Car wheel.Powder Coating Machine for Bicycle frame.Powder Coating Machine for Electrical Household Appliances.Powder Coating Machine for Aerospace Area.Powder Coating Machine for Fitness Equipment.Powder Coating Machine for Track Traffic.Powder Coating Machine for Medical Devices.Powder Coating Machine for Petroleum Pipes, Valve. |
