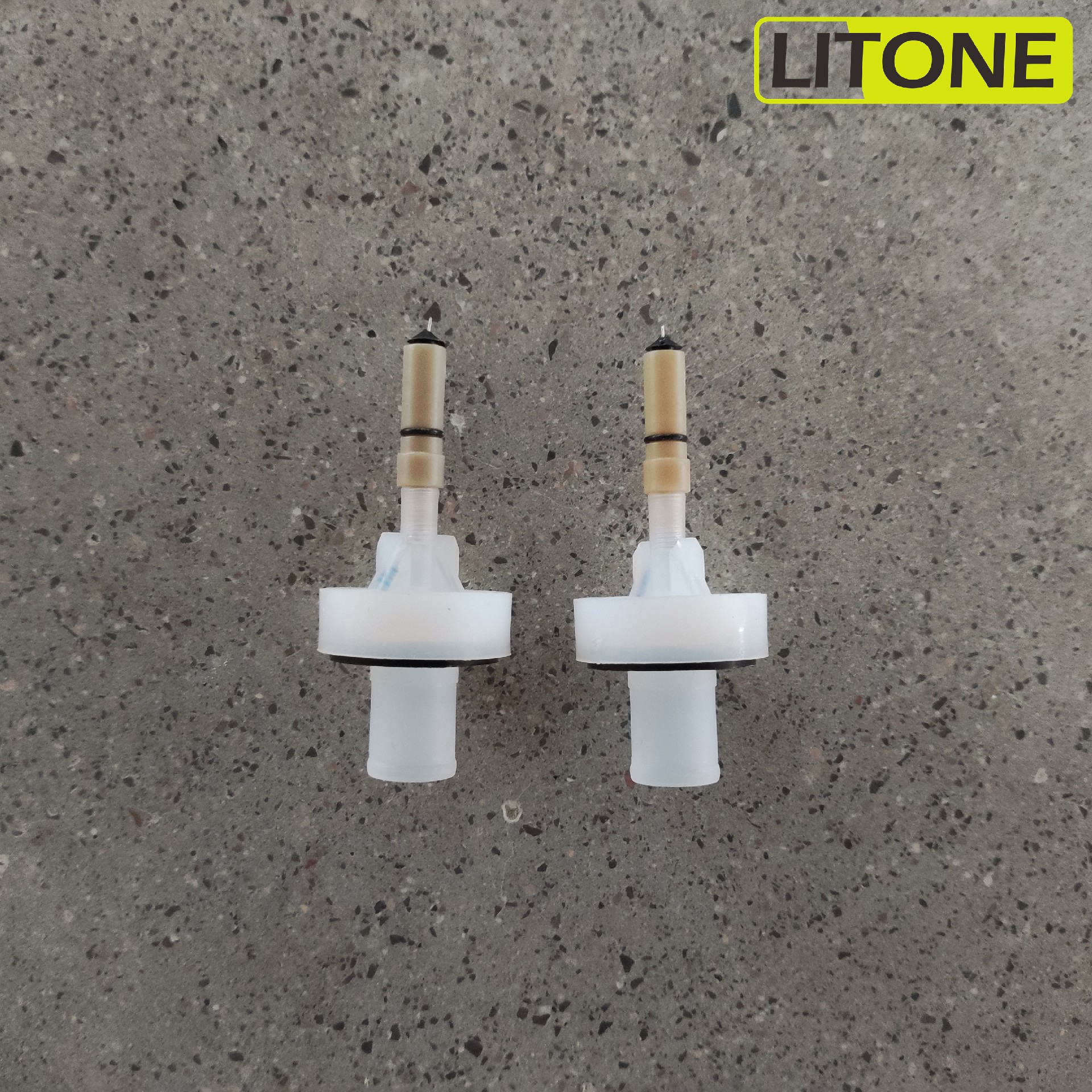

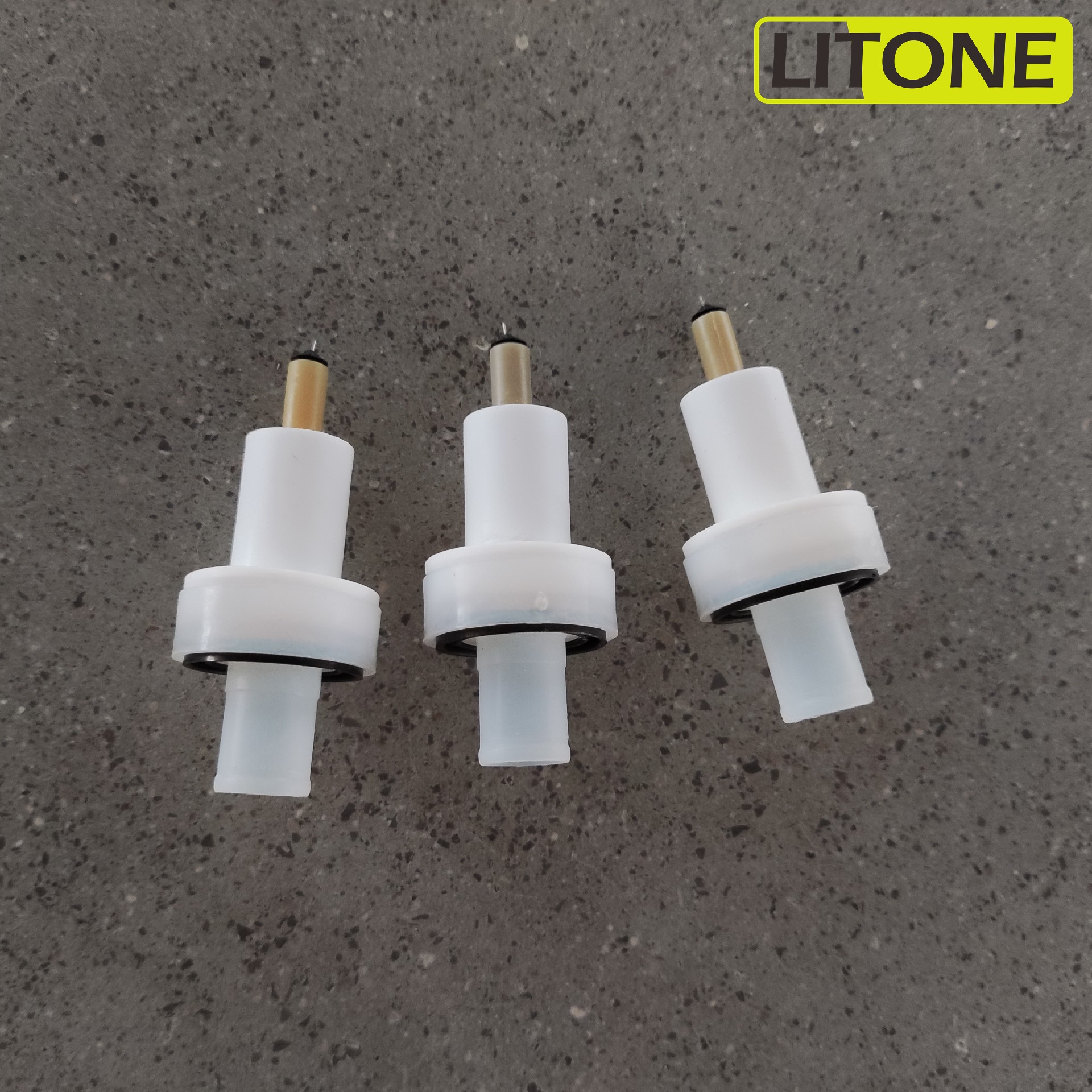

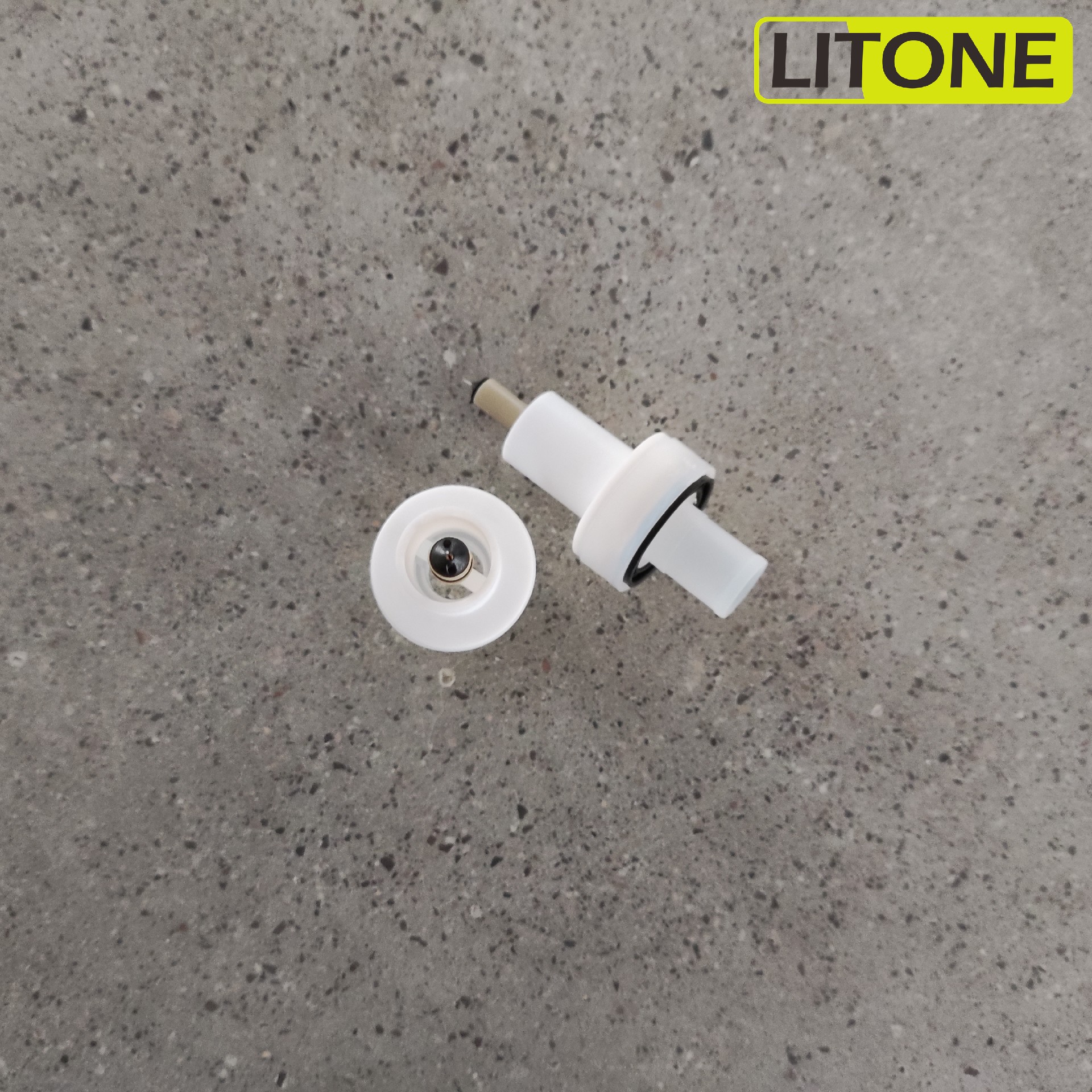

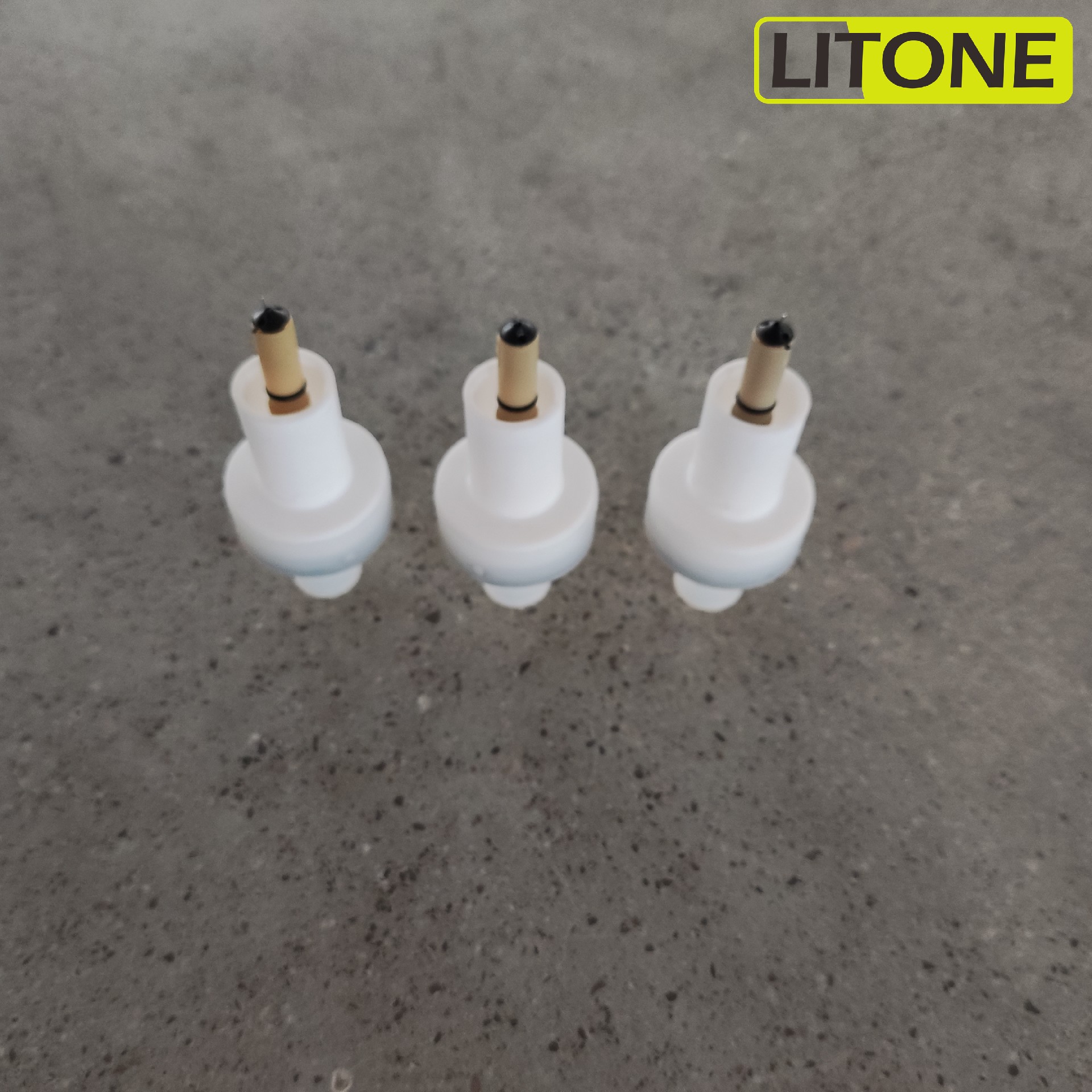

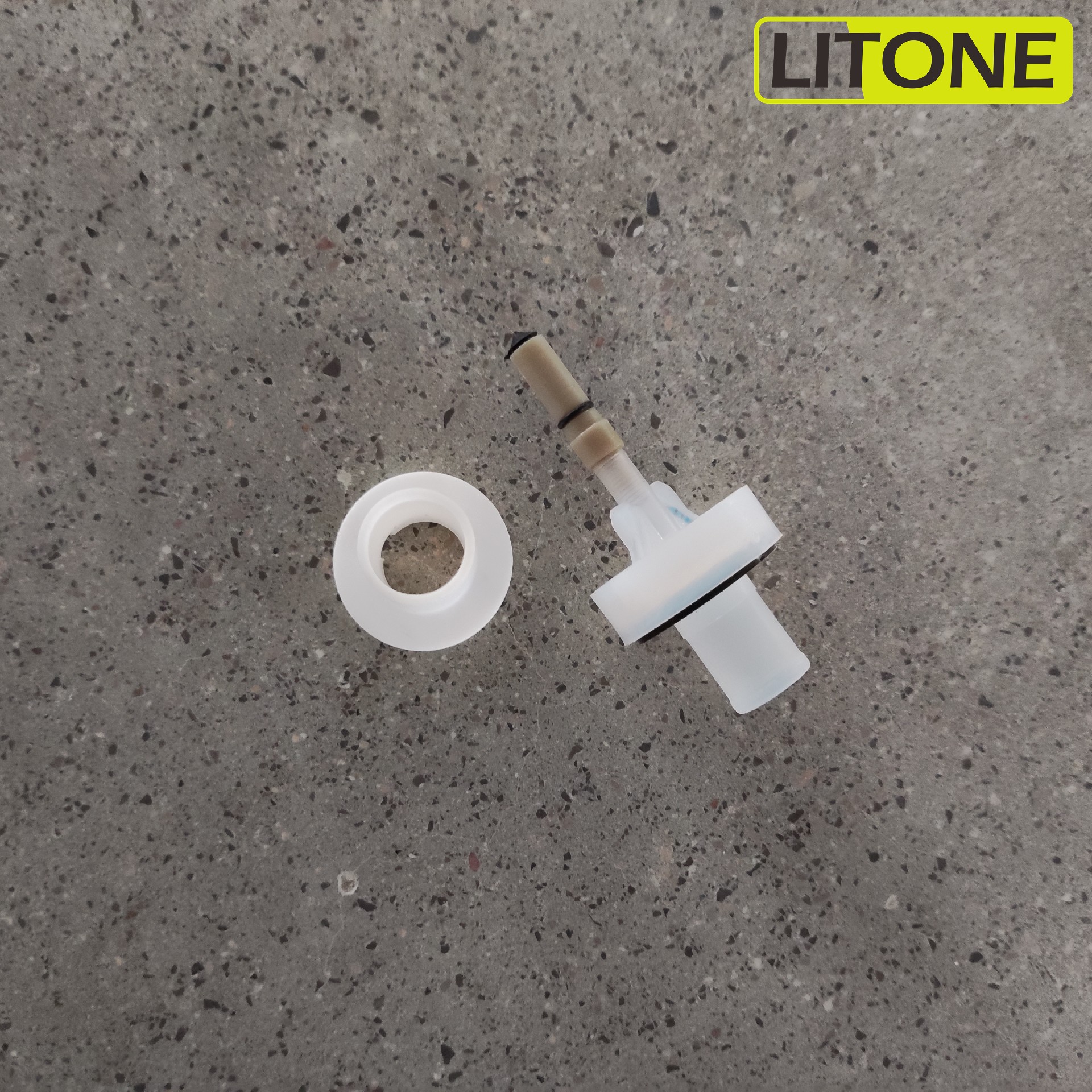

LITONE/ GEMA Powder Coating Gun OptiSelect GM02 Spare Parts Round Nozzle NS02, 382 922 (NON-OEM)
LITONE/ GEMA Powder Coating Gun OptiSelect GM02 Spare Parts Round Nozzle NS02, 382 922 (NON-OEM)--PRODUCT DESCRIPTION--For large flat surface areas1. Made of PTFE material, non-stick powder, friction ···
Features
LITONE/ GEMA Powder Coating Gun OptiSelect GM02 Spare Parts Round Nozzle NS02, 382 922 (NON-OEM)
--PRODUCT DESCRIPTION--
For large flat surface areas
1. Made of PTFE material, non-stick powder, friction resistance, long service life
2. The electrode seat contains a conductive ring made of conductive material, which has good conductivity
3. The electrode holder contains glass glaze resistors.
The glass glaze resistors have a large resistance range, which can better transmit high voltage,
reduce high voltage loss, ensure powder charging rate, and have good stability.
 |  |
--DIFFERENCE BETWEEN NOZZLES--
1. Different materials
High-end nozzle is made of molded PTFE material, with high hardness, friction resistance and long service life.
Low-end nozzle is made of extruded PTFE or PTFE added with recycled materials, which has poor materials and short service life.
2. Different resistances
High-end uses glass glaze resistance;
Low-end uses carbon film Resistance;
The service life of glass glaze resistance is 3-4 times that of carbon film resistance.
3. Different conductivity
Carbon content of high-end nozzle > carbon content of low-end nozzle
4. Whether it is sticky or not
High-end nozzles are not sticky with powder, and low-end nozzles are easy to stick to powder, which is easy to form blockage and damage the spray gun over time.
Experience Summary: The service life of high-end is 3-4 times of low-end one.
 |  |  |
Electrode Holder, NS02 382 914 (NON-OEM) | Round Jet Nozzle, NS02, 378 518 (NON-OEM) | Round Nozzle, NS02, 382 922 (NON-OEM) |
A | OptiSelect manual powder gun - complete negative polarity, incl. gun cable - 6 m, rinsing air hose - 6 m, flat jet nozzle, brush and parts kit, without powder hose | 1002 100 |
OptiSelect manual powder gun - complete positive polarity, incl. gun cable - 6 m, rinsing air hose - 6 m, flat jet nozzle, brush and parts kit, without powder hose | 1002 101 | |
B | OptiSelect manual powder gun shaft (incl. cascade) | |
Negative polarity (-) | 1001 891 | |
Positive polarity (+) | 1001 892 | |
C | Cascade (negative polarity) - complete | 1000 809 |
Cascade (positive polarity) - complete | 1002 031 | |
1 | Gun body | 1001 155 |
Handle - complete set (pos. 5, 6, 7 and 8) | 1000 807 | |
2 | Trigger - complete (incl. pos. 2 and 3) | 1001 341 |
3 | Compression spring - 0.36x4.2x49.4 mm | 1001 487 |
4 | Trigger cover | 1000 801 |
5 | Grasp termination | 1000 806 |
6 | Radial gasket | 1000 803 |
7 | Gun cable - L=6 m, complete | 1001 528 |
Extension cable for gun cable - L=6m, incl. safety clamp | 1002 161 | |
Extension cable for gun cable - L=14m, incl. safety clamp | 1002 162 | |
Safety clamp for extension cable | 1002 064 | |
8 | Grub screw - M3x8 mm | 1000 844 |
10 | Powder tube - complete | 1001 339 |
10.2 | O-ring - Ø 12x1.5 mm | 1000 822 |
11 | Rinsing air connection | 1000 804 |
12 | Clip ring | 1000 898 |
13 | Compression spring | 1001 488 |
14 | Back cover - complete | 1000 617 |
14.1 | Printed circuit board holder - complete (incl. pos. 14.2) | 1002 029 |
14.2 | Radial gasket | 1000 795 |
14.3 | Shield - complete | 1002 028 |
14.4 | Cap screw - M3x8 mm (not shown) | 202 363 |
15 | Hose connection - complete, for internal hose Ø 11-12 mm | 1001 340 |
Hose connection - complete, for internal hose Ø 9-10 mm | 1002 030 | |
15.2 | O-ring - Ø 12x1.5 mm | 1000 822 |
16 | Hook (replaceable) | 1000 877 |
17 | Countersunk head screw - M4x8 mm, plastic | 263 516 |
18 | PT-screw | 1000 843 |
19 | Threaded sleeve - complete | 1000 948 |
20 | Flat jet nozzle - complete | 1000 047 |
20.1 | Electrode holder - complete | 1000 055 |
20.2 | Flat jet nozzle | 1000 049 |
OptiSelect adaptor for PGC control unit (not shown) | 1001 952 | |
Cleaning brush - Ø 12mm | 389 765 | |
Parts set (not shown), consisting of: | 1002 359 | |
Round jet nozzle - NS02, complete | 382 922 | |
Cable clamp | 303 070 | |
Deflector plate - Ø 16 mm | 331 341 | |
Deflector plate - Ø 24 mm | 331 333 | |
Deflector plate - Ø 32 mm | 331 325 | |
Hose connection - complete, for internal hose Ø 11-12 mm | 1001 340 | |
O-ring - Ø 12x1.5 mm | 1000 822 | |
Countersunk head screw - M4x8 mm, plastic | 263 516 | |
Powder hose - Ø 10 mm (not shown) | 1001 673 | |
Powder hose - Ø 11 mm (not shown) | 105 139 |
--RELATED PRODUCTS--
 |  |  |
OptiSelect manual powder gun 1002 100 (NON-OEM) | OptiGun GA02 auto powder gun 393 568 (NON-OEM) | OptiFlow powder injector IG02 391 530 (NON-OEM) |
--PACKAGING & SHIPPING--
Packing: High quality carton and wooden box
Delivery Time: Four to eight days after payment by air
--APPLICATION--
 | Powder Coating Machine for Metal surface.Powder Coating Machine for Car wheel.Powder Coating Machine for Bicycle frame.Powder Coating Machine for Electrical Household Appliances.Powder Coating Machine for Aerospace Area.Powder Coating Machine for Fitness Equipment.Powder Coating Machine for Track Traffic.Powder Coating Machine for Medical Devices.Powder Coating Machine for Petroleum Pipes, Valve. |
