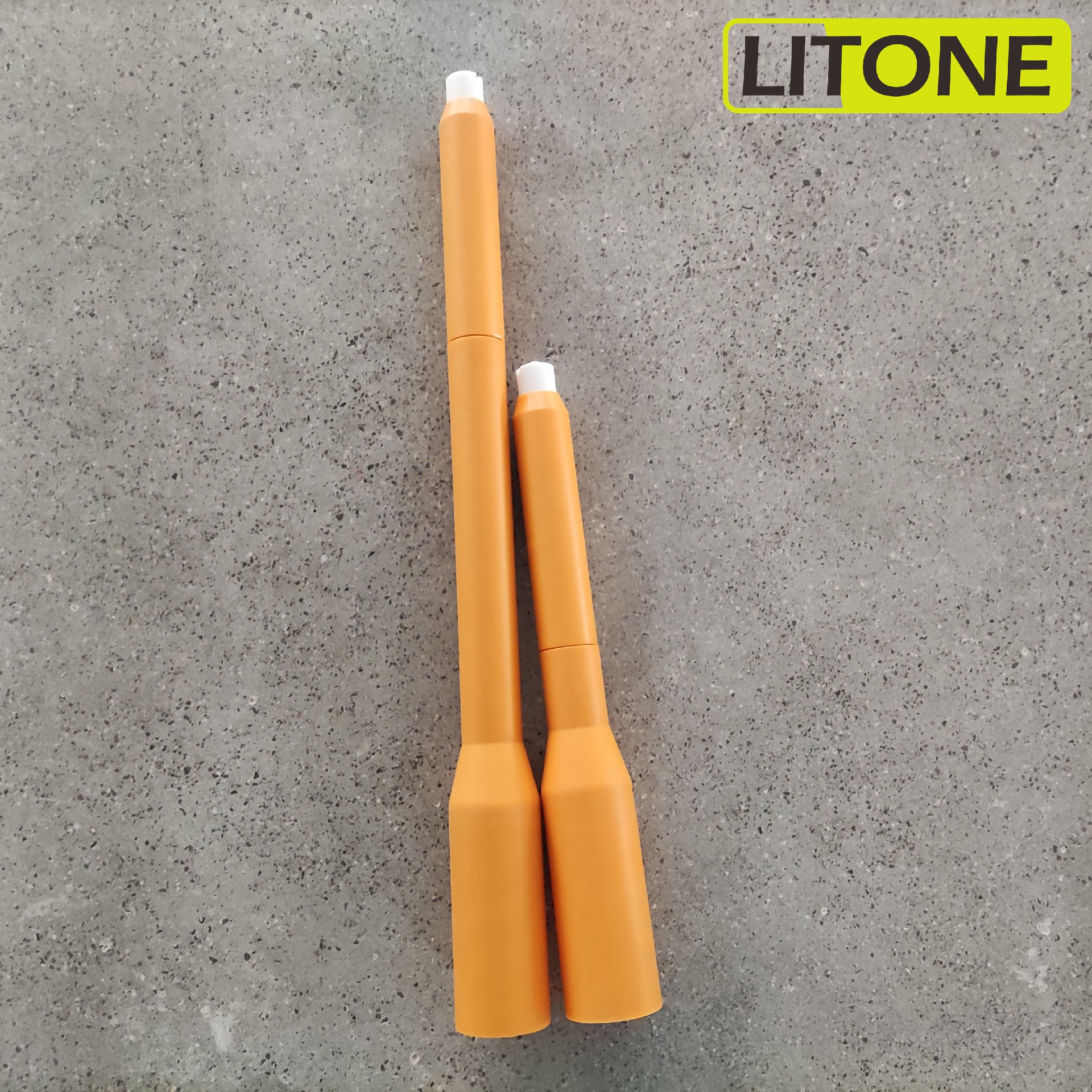

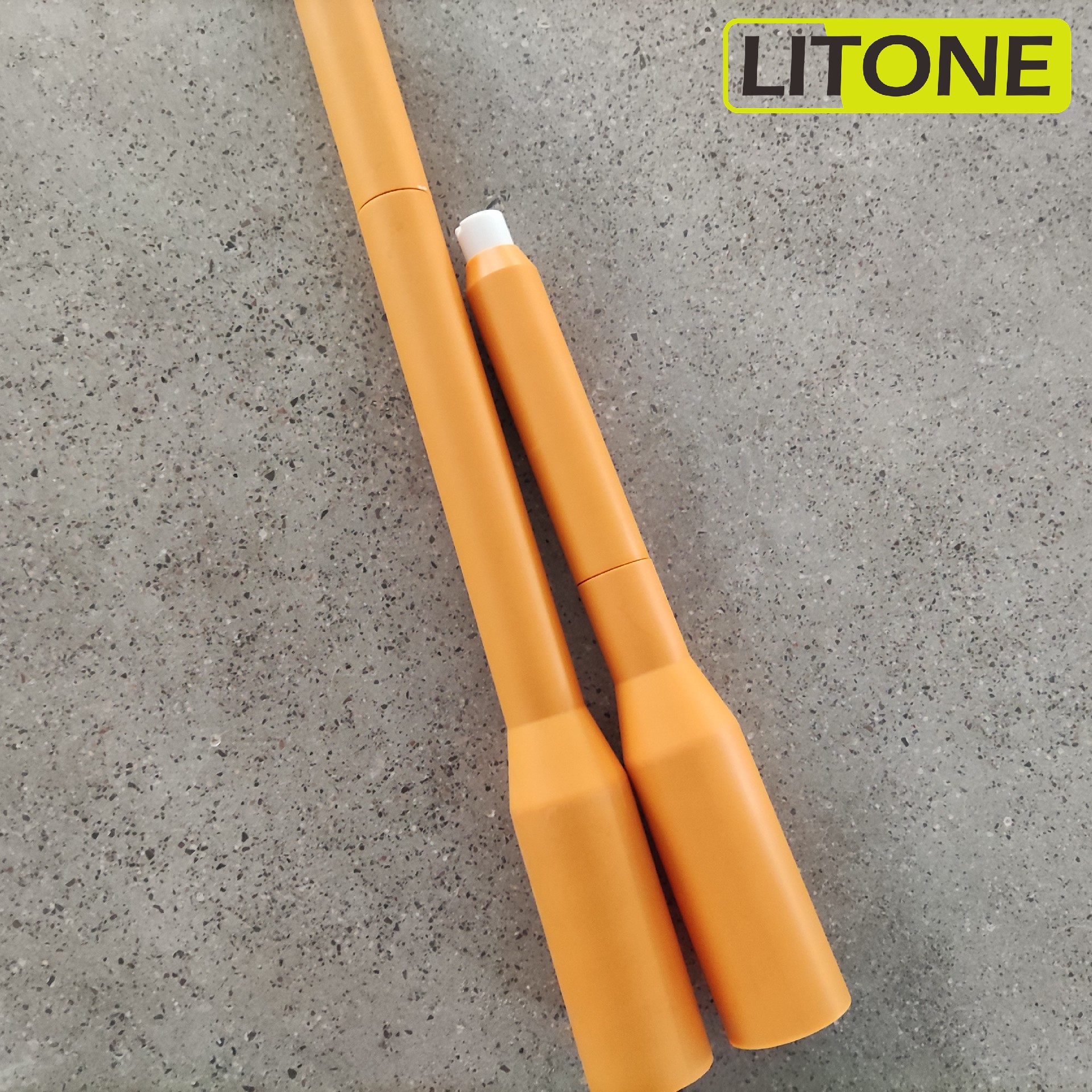

Gemas Litone 150mm 300mm Extension378 852 / 378 860 /396 623 /396 931 / 396 940/ 396 958 for GM02 GA02 powder coating gun(NON-OEM)
Gemas Litone 150mm 300mm Extension378 852 / 378 860 /396 623 /396 931 / 396 940/ 396 958 for GM02 GA02 powder coating gun
Features
Gemas Litone 150mm 300mm Extension378 852 / 378 860 /396 623 /396 931 / 396 940/ 396 958 for GM02 GA02 powder coating gun（NON-OEM）
Product Details：
Product information:

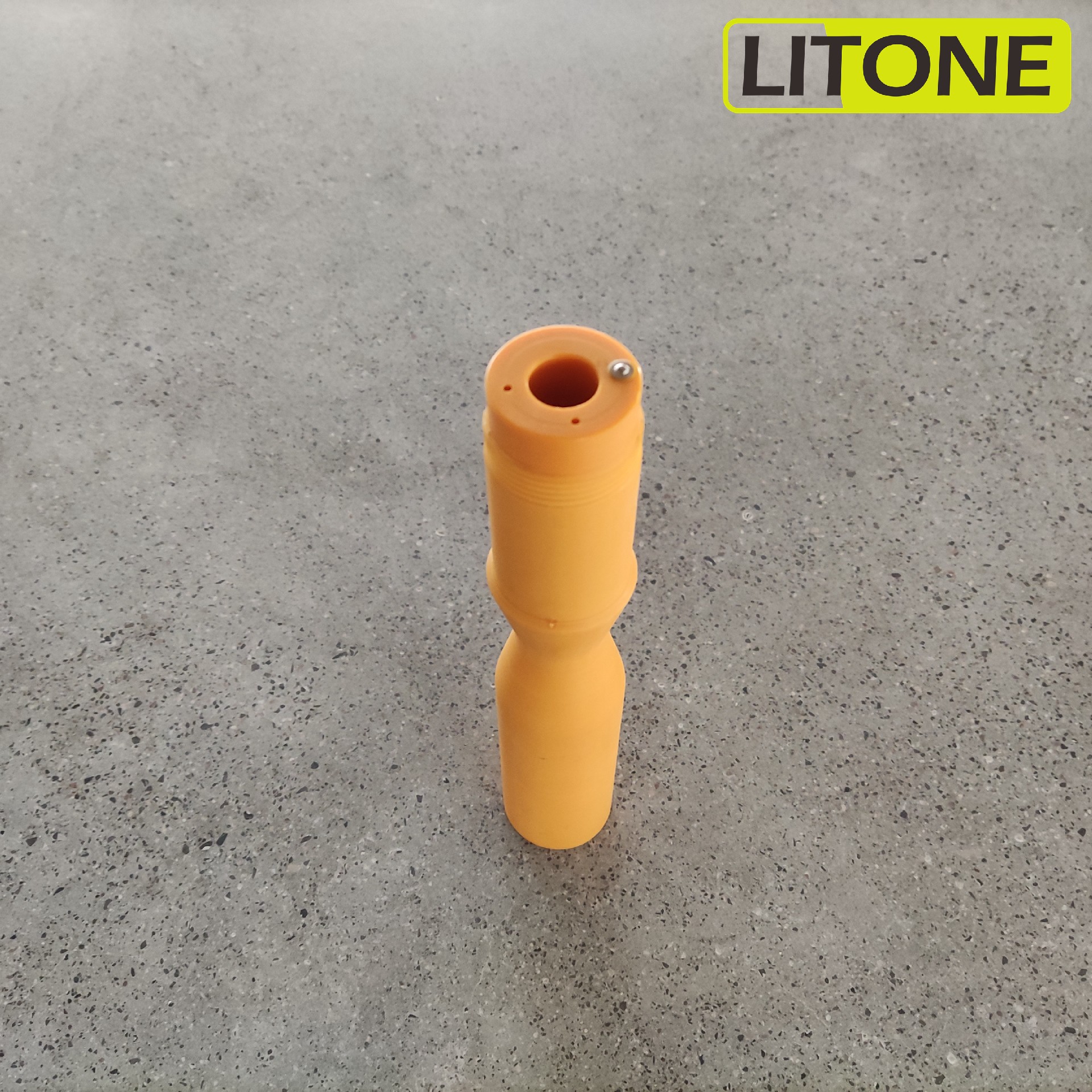

1. Teflon material used Mostly used for spraying dead - corner and deep grooves.
Using antistatic material, it will not cause damage to the human body.
Extend the powder spraying length, mostly used when the workpiece is far away from the spraying.

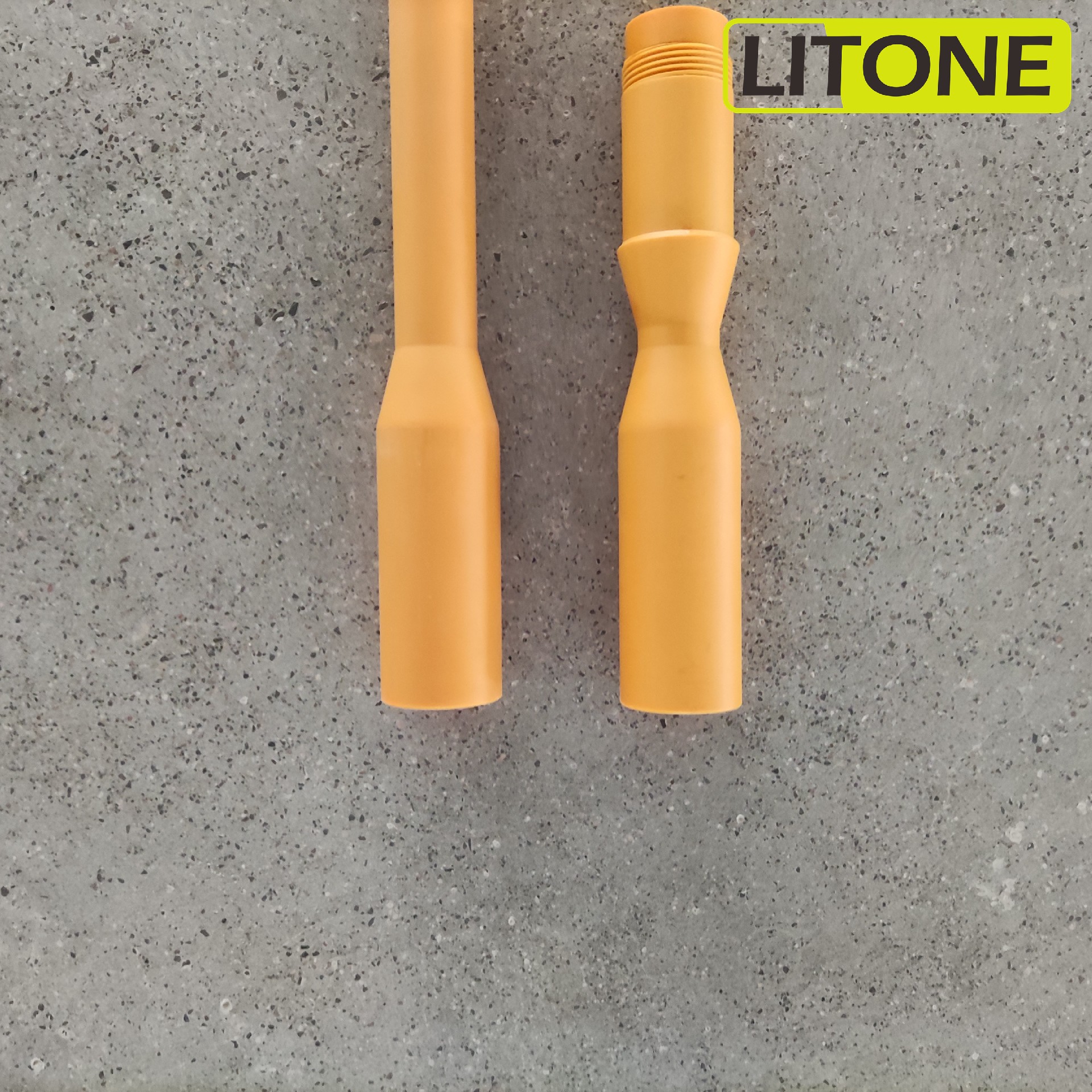

2. Extensions for round and flat jet nozzle
Manual and automatic guns can be provided with robust extensions of 150 and 300mm length.
These nozzles are interchangeable with the standard nozzles and offer a perfect flexibility of use.
3. Extensions for round and flat jet nozzle
Manual and automatic guns can be provided with robust extensions of 150 and 300mm length.
These nozzles are interchangeable with the standard nozzles and offer a perfect flexibility of use.
Product Code：

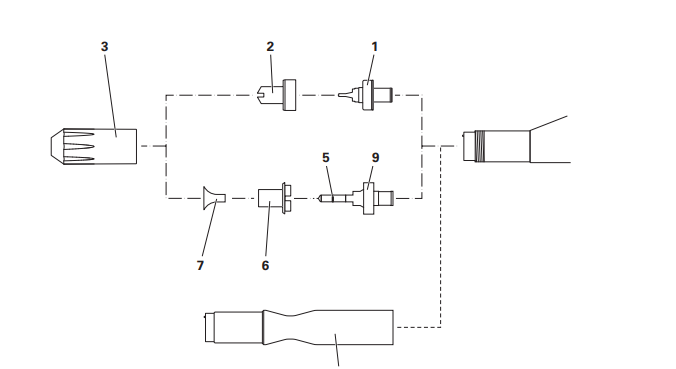

Nozzle combinations for powder coating guns supplied by Litone
| Nozzle set - flat jet, NF08, pos. 1, 2 | 1000 047# | |
Nozzle set - round jet, pos. 5, 6, 9 | 382 922 | |
| 1 | Electrode holder (flat jet nozzle) | 1000 055# |
| 2 | Flat jet nozzle | 1000 049# |
| 3 | Threaded sleeve | 1000 948 |
| 5 | O-ring - Ø 5x1 mm | 231 606# |
| 6 | Round jet nozzle | 378 518# |
| 7 | Deflector - Ø 16 mm | 331 341# |
| 7.1 | Deflector - Ø 24 mm | 331 333# |
| 7.2 | Deflector - Ø 32 mm | 331 325# |

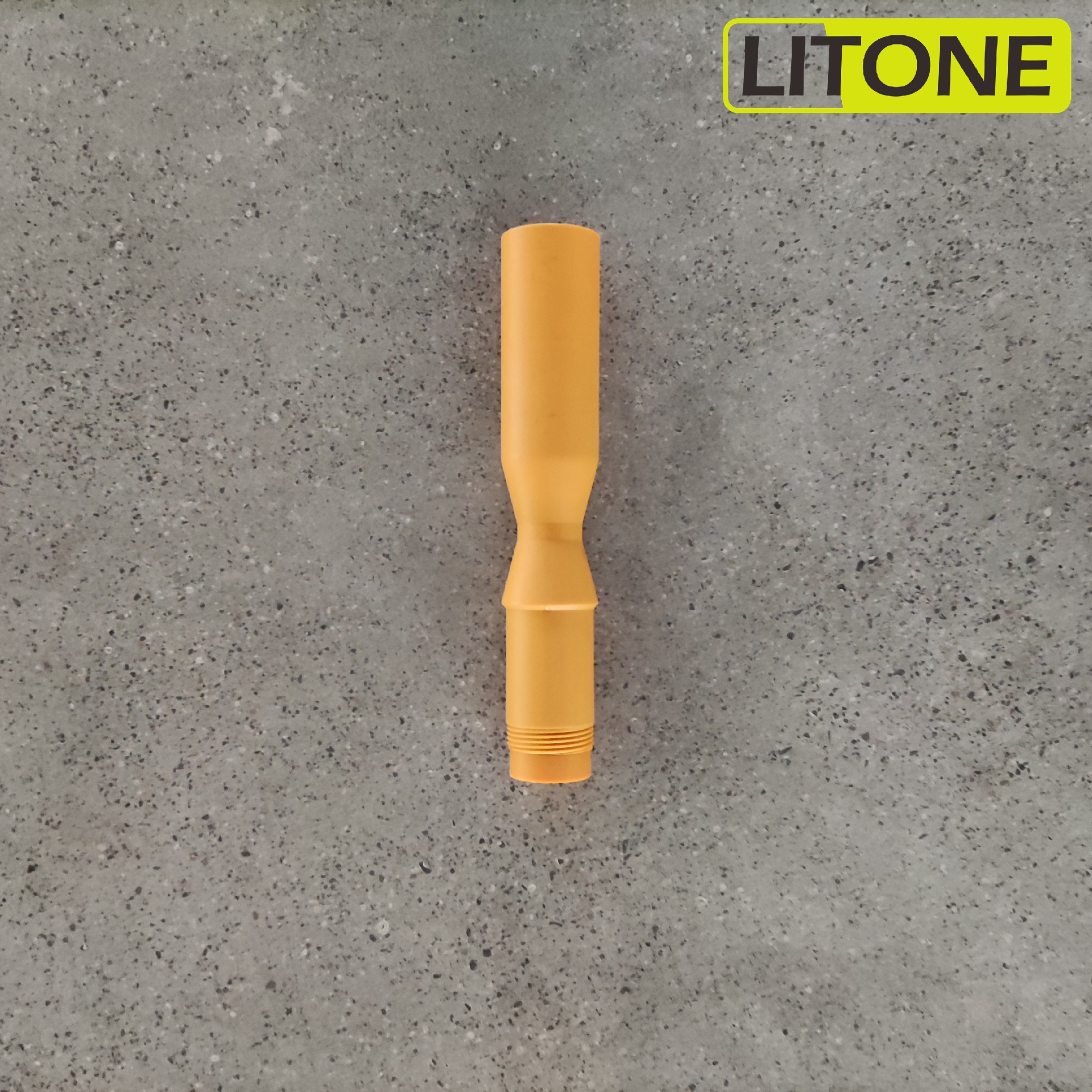

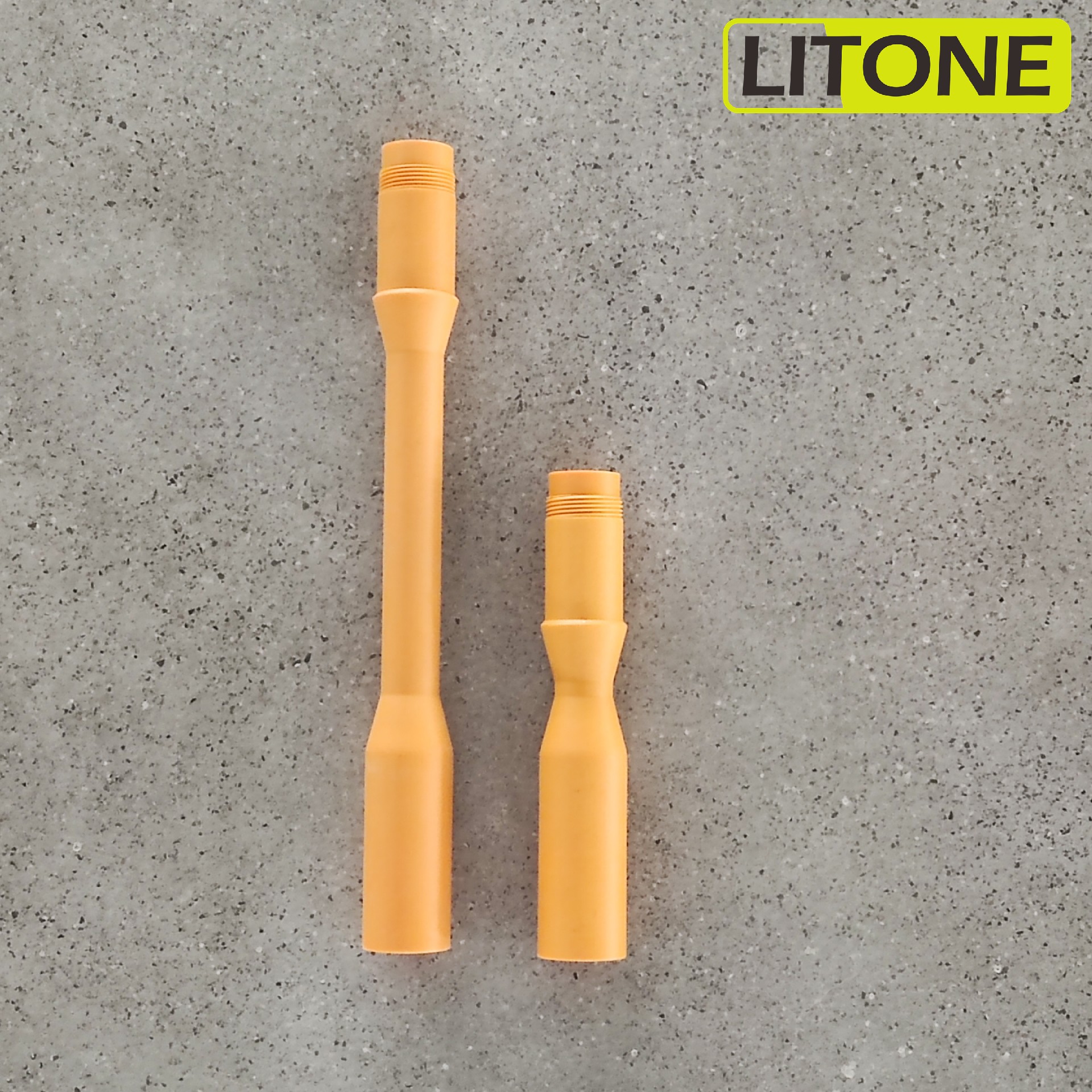

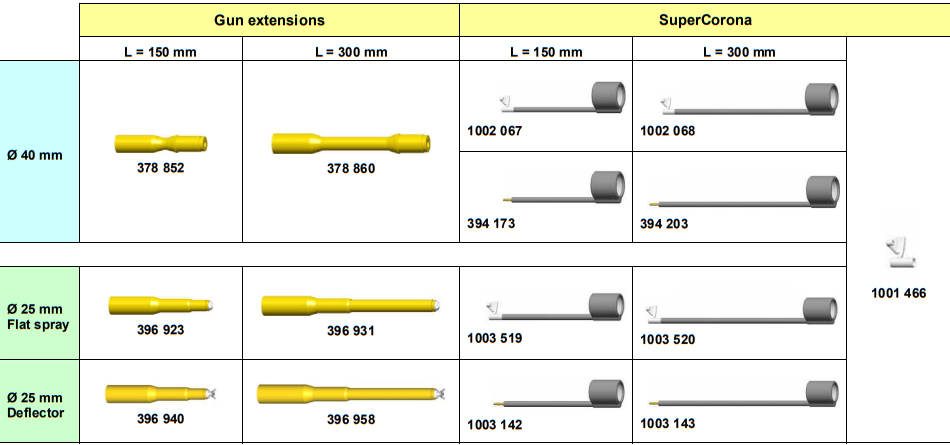

| 8 | Extension - 150 mm | 378 852# |
| 8.1 | Extension - 300 mm | 378 860# |
| 9 | Electrode holder, incl. pos. 5 (round jet nozzle-central electrode) | 382 914# |
| # Wearing part | ||
OptiSelect flat jet nozzles - overview
Related Products：

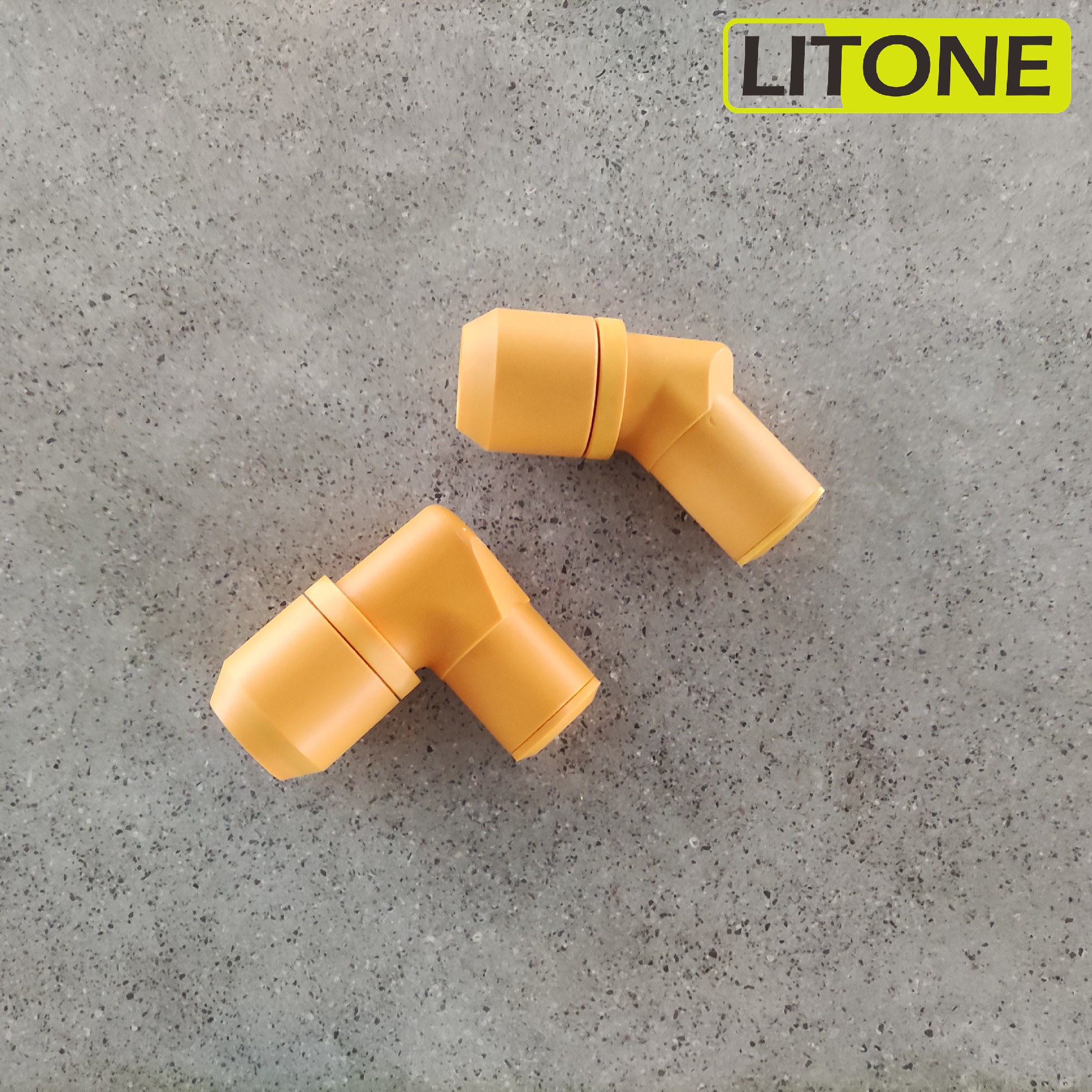

| GA02 GM02 Powder coating gun Angle nozzle - PA01-45° PA01- 60° PA01-90° /390232 383724 382520(NON-OEM) | Complete Optiselect GM02 Manual Gun with 6m Cable and 6m Rising Air Hose 1002 100(NON-OEM) |

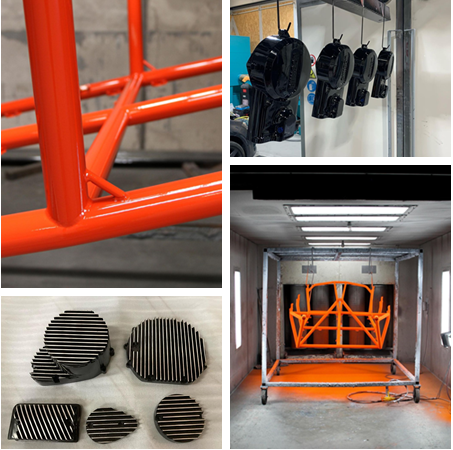

Application:
Spraying equipment is widely used in all walks of life.
Spraying equipment can be used for large-scale station steel structures, large-scale road overpass steel structure pavement, ships, trailers, trains, automobiles, bridges, tunnels, shelves, colored tiles, building interior and exterior walls, furniture, petrochemical, marine engineering, aerospace, aviation, Products and engineering coatings in industrial fields such as blast furnace inner walls and pipeline inner walls in steel plants.
Packing & Shipping:
Inside package is plastic bag.
Outside package is paper box.
To make sure the safety in delivery.
We support all kinds of express delivery, air delivery, sea delivery, train delivery.
The customer can choose according to needs.
Our company:

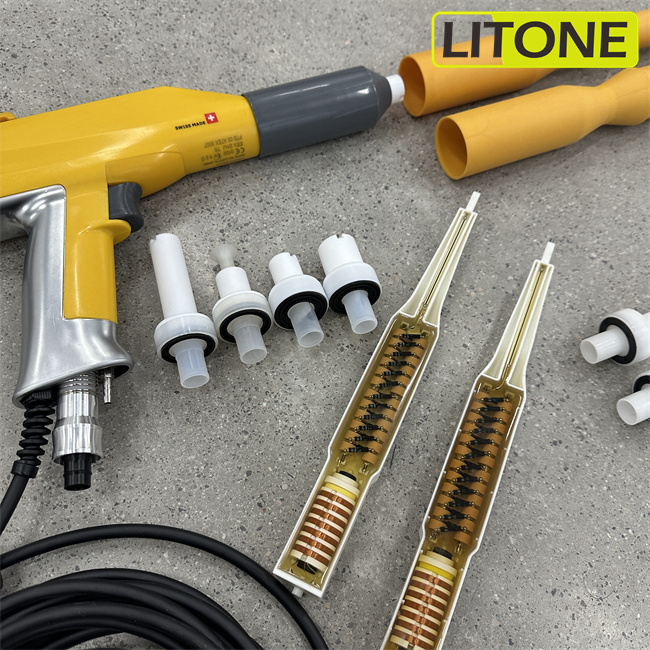

Litone Machinery manufactures and supplies non-original replacements and original parts and equipment for Gema, Wagner and Nordson powder coating guns and machines.
NON original parts: they are interchangeable products that completely work well with original powder gun and equipment.
Benefits: powder coating cost will be reduced without lower the powder coating performance. Best option of cost-effective alternative.
Original type: imported from original manufacturers.
For more questions, please contact!
Email:sale07@galincoating.com
Mobile/whatsapp: :+8617861279967
Contact: Lily Zhang
FAQ:
1 Is it safe to order from Litone?
Yes,100% sure you are safe to order from us. Litone exported to many countries and we are the famous factory produce powder coating equipment more than 10 years in China.
And successfully exported to more than 60 countries and regions.
2 Can I customized the machines?
Yes, we are a professional team for powder coating equipments, Our technician will design for you specially according to your needs and your factory, workpiece etc information.
3 What is this type of machine used for?
It used for the powder coating and line, plant.
4 How we ship goods?
Our shipping methods include sea and air to any port.
5 What is our billing method?
Our Payment methods: T/T, L/C, Western Union, PayPal,Xtransfer, etc
6 What does our packaging look like?
Our packaging is the appropriate packaging for the container.
