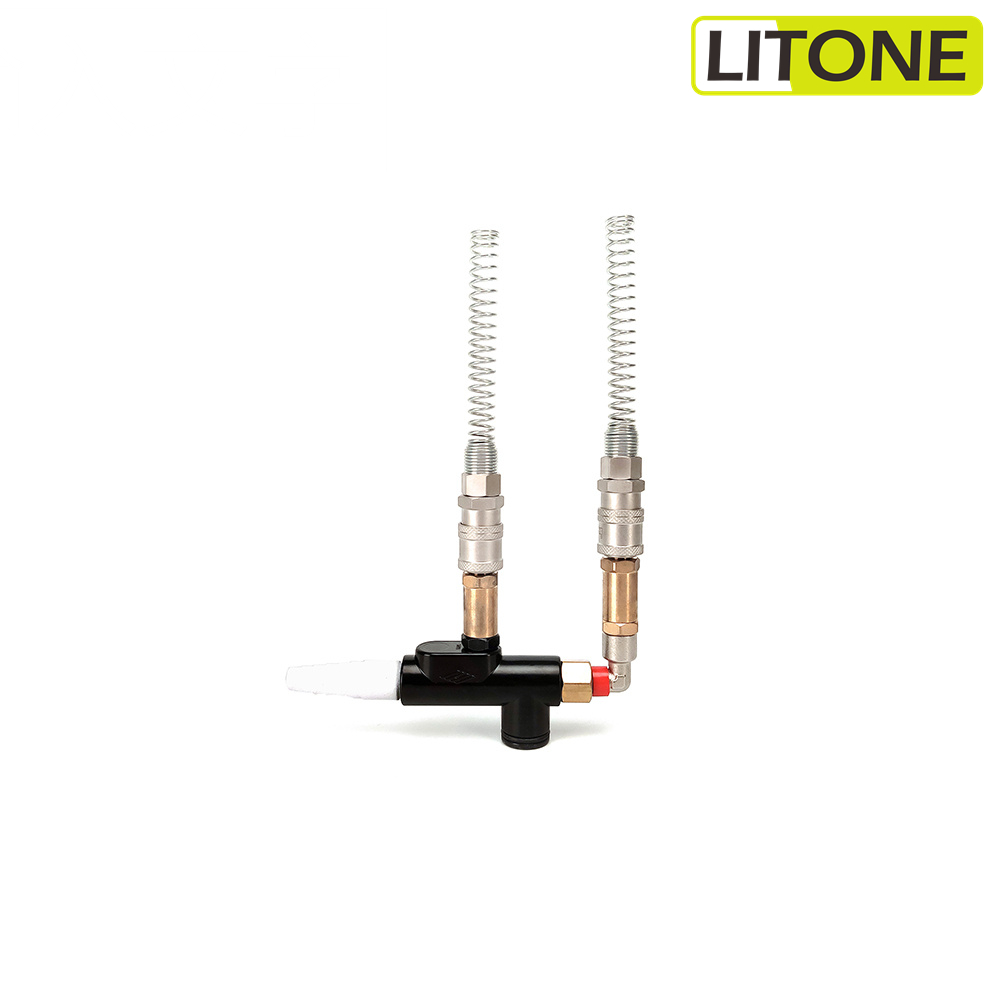

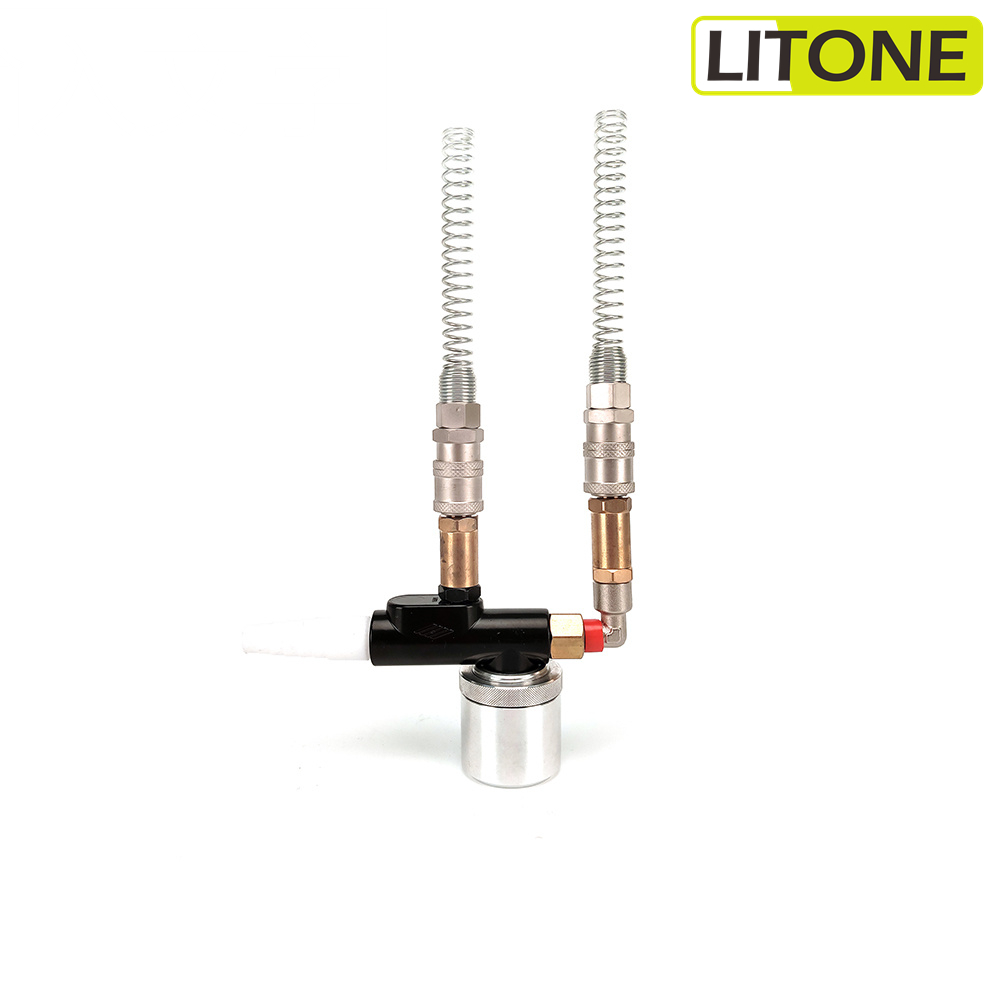

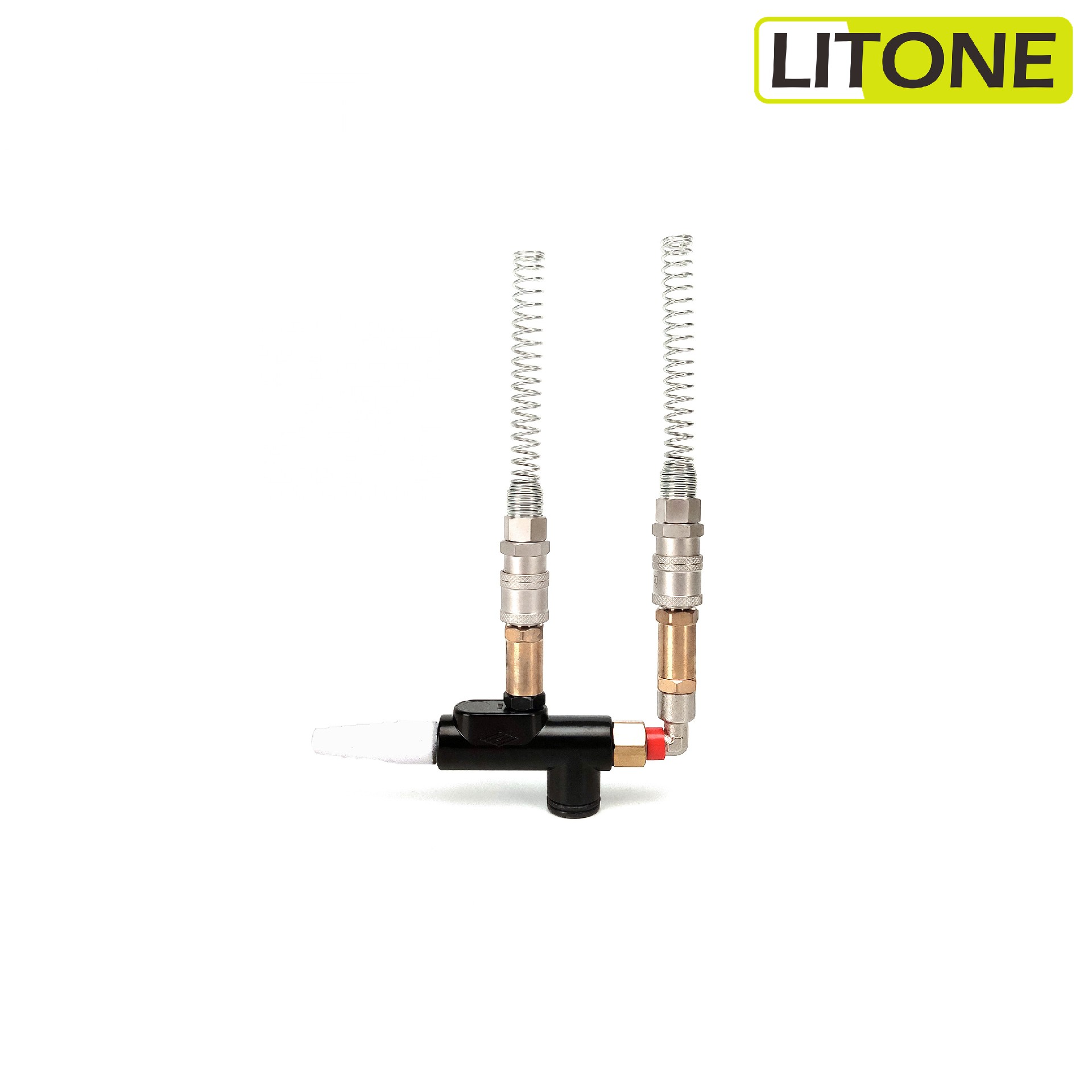

LITONE/ GEMA PI 3 Plug-in Injector for Powder Coating System, 345 326 (NON-OEM)
LITONE/ GEMA PI 3 Plug-in Injector for Powder Coating System, 345 326 (NON-OEM)【PRODUCT DESCRIPTION】Insert:Made of pure Teflon material, which is resistant to friction and has a long service life, and···
Features
LITONE/ GEMA PI 3 Plug-in Injector for Powder Coating System, 345 326 (NON-OEM)
【PRODUCT DESCRIPTION】
Insert:
Made of pure Teflon material, which is resistant to friction and has a long service life, and the size is the same as the original.
Use special conductive material to prevent the accumulation of powder and prevent the powder from clogging the powder hose.

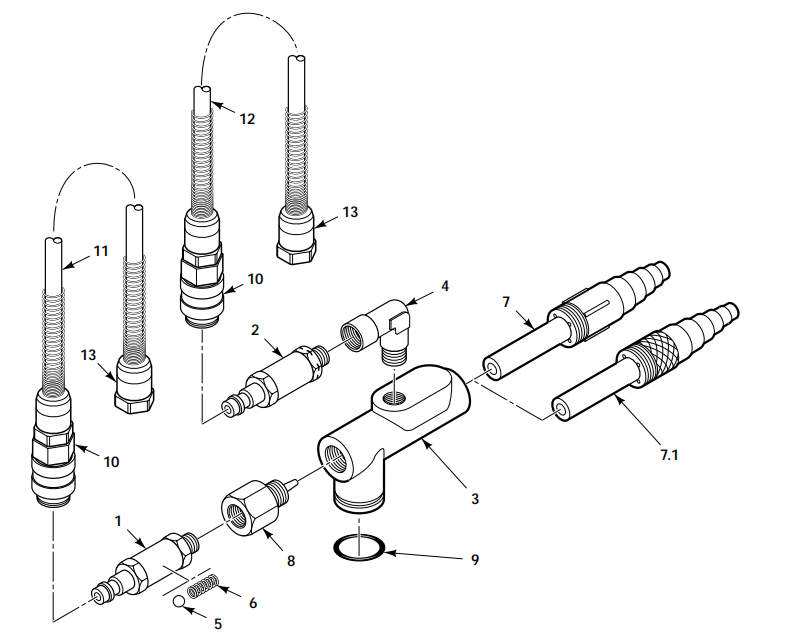

| Injector (complete) | 345 326 | |
| 1 | Check valve - conveying air (complete - incl. Items 5, 6) | 239 135 |
| 2 | Check valve (with notch) - suppl. air (complete - incl. Items 5, 6) | 239 143 |
| 3 | Injector body | 344 311 |
| 4 | Elbow connection - 1/8"-1/8" | 237 604 |
| 5 | Ball | 240 168 |
| 6 | Spring | 240 176 |
| 7 | Hose fitting - Tefzel | 344 338# |
| 7.1 | Hose fitting - Teflon | 354 201# |
| 8 | Injector nozzle - ø 1.6 mm (with notch) | 365 912# |
| 8.1 | Injector nozzle - ø 1.8 mm (without notch) | 343 552# |
| 9 | O-ring - ø 16 x 2 mm | 231 517 |
| 10 | Quick-release connector - ø 8 / 6 mm | 203 181 |
| 11 | Conveying air hose - ø 8 / 6 mm (red) | 103 500* |
| 12 | Supplementary air hose - ø 8 / 6 mm (black) | 103 756* |
| 13 | Screw coupling for hose - ø 8 / 6 mm | 201 316 |
| Powder hose - ø 16 / 11 mm for PG 1 Manual gun | 103 128*# | |
| Powder hose - ø 16 / 11 mm for PG 1-A Automatic gun | 103 012*# |
【Fields of application】
The PI 3 injector is used to convey normal organic powders between the powder hopper and the powder gun. The injector is supplied with a Tefzel powder hose fitting as standard.
The PI 3 "plug-in injector" allows fast cleaning and easy handling because it can be detached from the powder hopper without using any tools. All pneumatic connections are also easily detachable (Quick-release connectors). Depending on the application the pneumatic connections of the PI 3 can be selected either for vertical or for horizontal operation.
【RELATED PRODUCTS】
 |  |  |

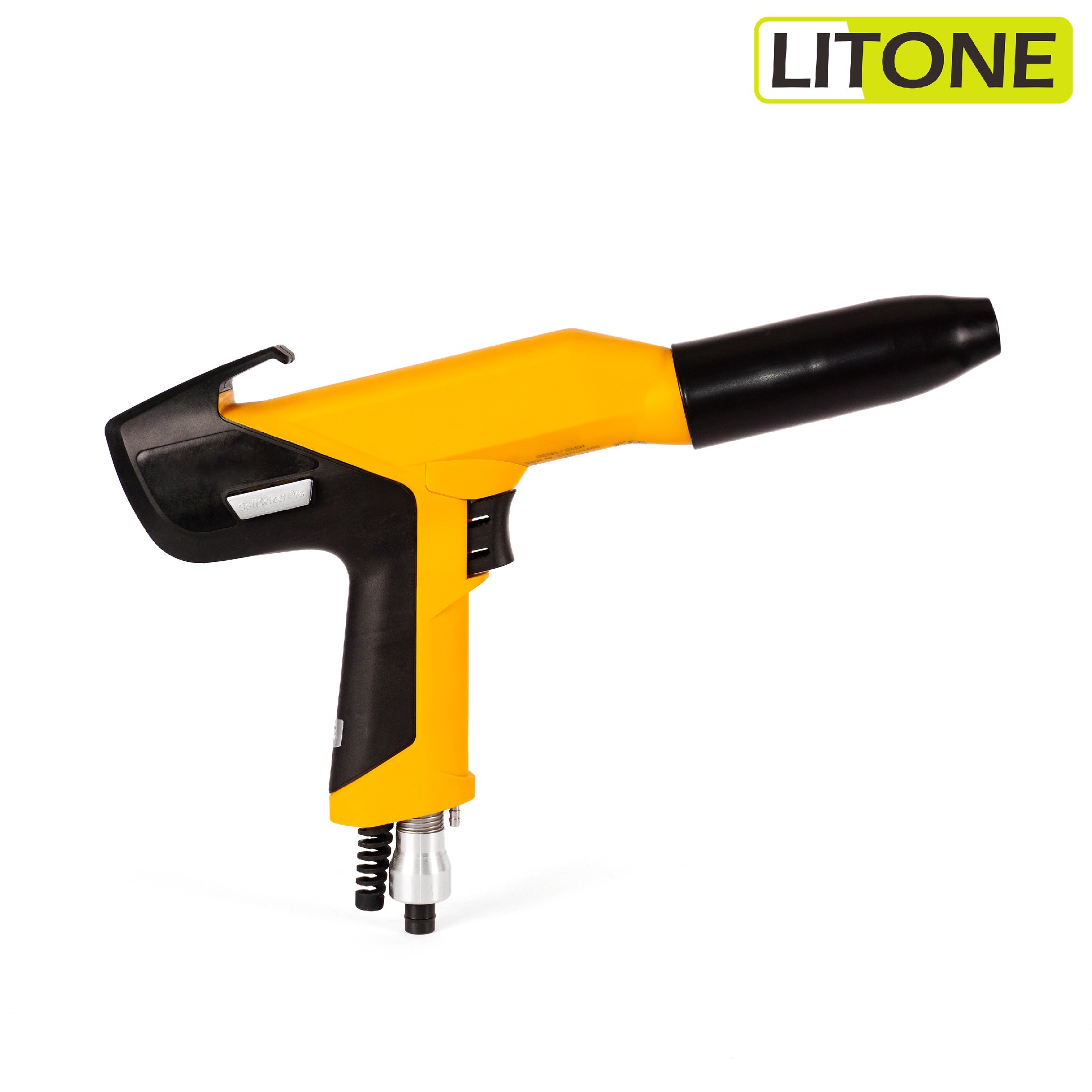

Manual Powder Coating Gun GM04 1016 971 (NON-OEM) | Manual Powder Coating Gun GM03 1008 070 (NON-OEM) | IG06 Injector pump 1007 780 (NON-OEM) |
