LITONE/ GEMA OptiFlow IG07 for Powder Coating Machine, 1014 806 (NON-OEM)
LITONE/ GEMA OptiFlow IG07 for Powder Coating Machine (NON-OEM)【PRODUCT DESCRIPTION】Hose connector:Made of GEMA original materials, including special conductive materials, to avoid powder accumulation···
Features
LITONE/ GEMA OptiFlow IG07 for Powder Coating Machine, 1014 806 (NON-OEM)
【PRODUCT DESCRIPTION】

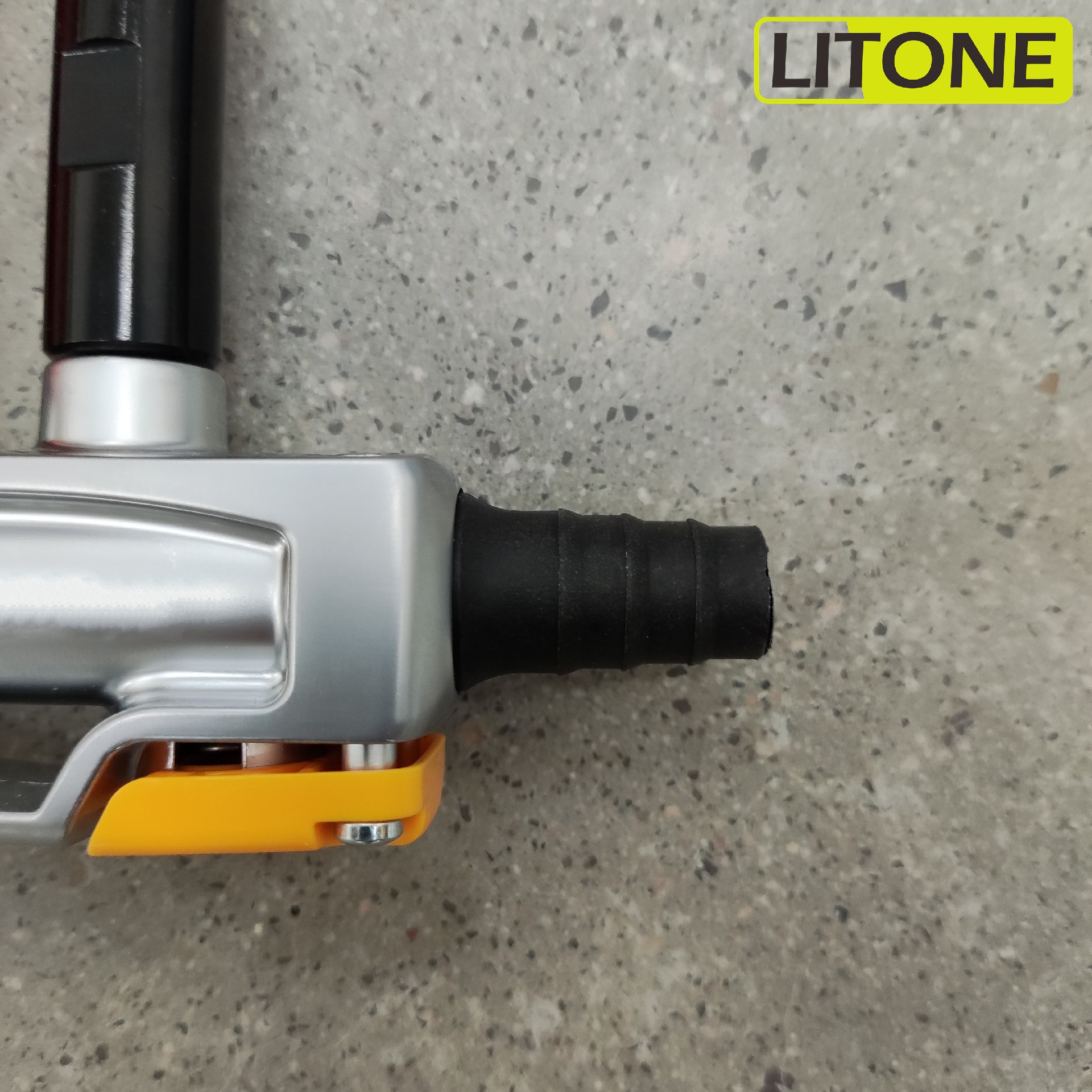

Hose connector:
Made of GEMA original materials, including special conductive materials, to avoid powder accumulation and powder deposition.
Friction resistant, long service life.
Insert:
Made of pure Teflon material, which is resistant to friction and has a long service life, and the size is the same as the original.
Use special conductive material to prevent the accumulation of powder and prevent the powder from clogging the powder hose.

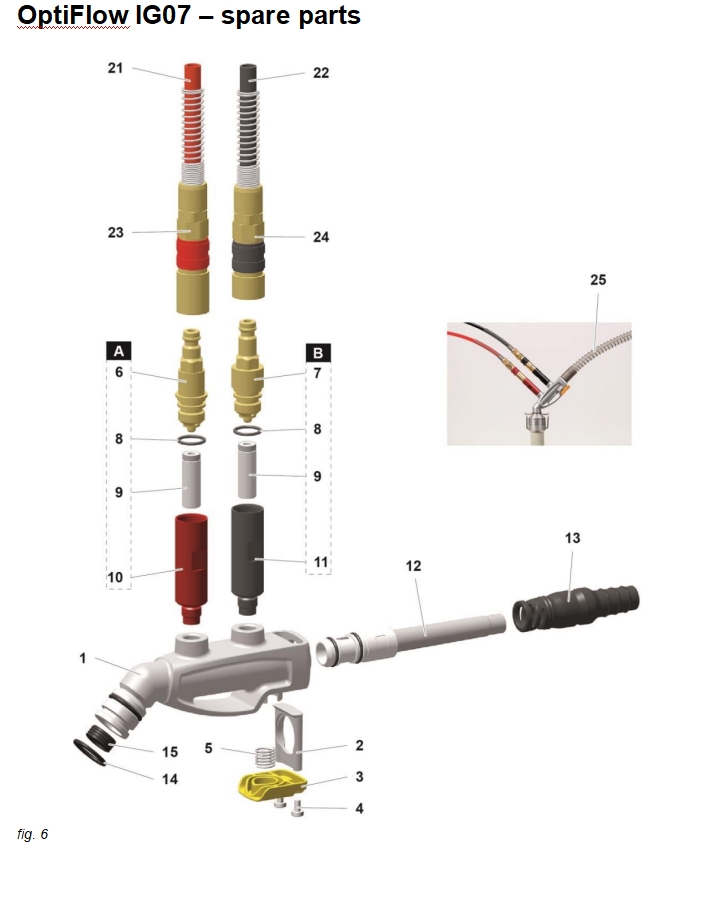

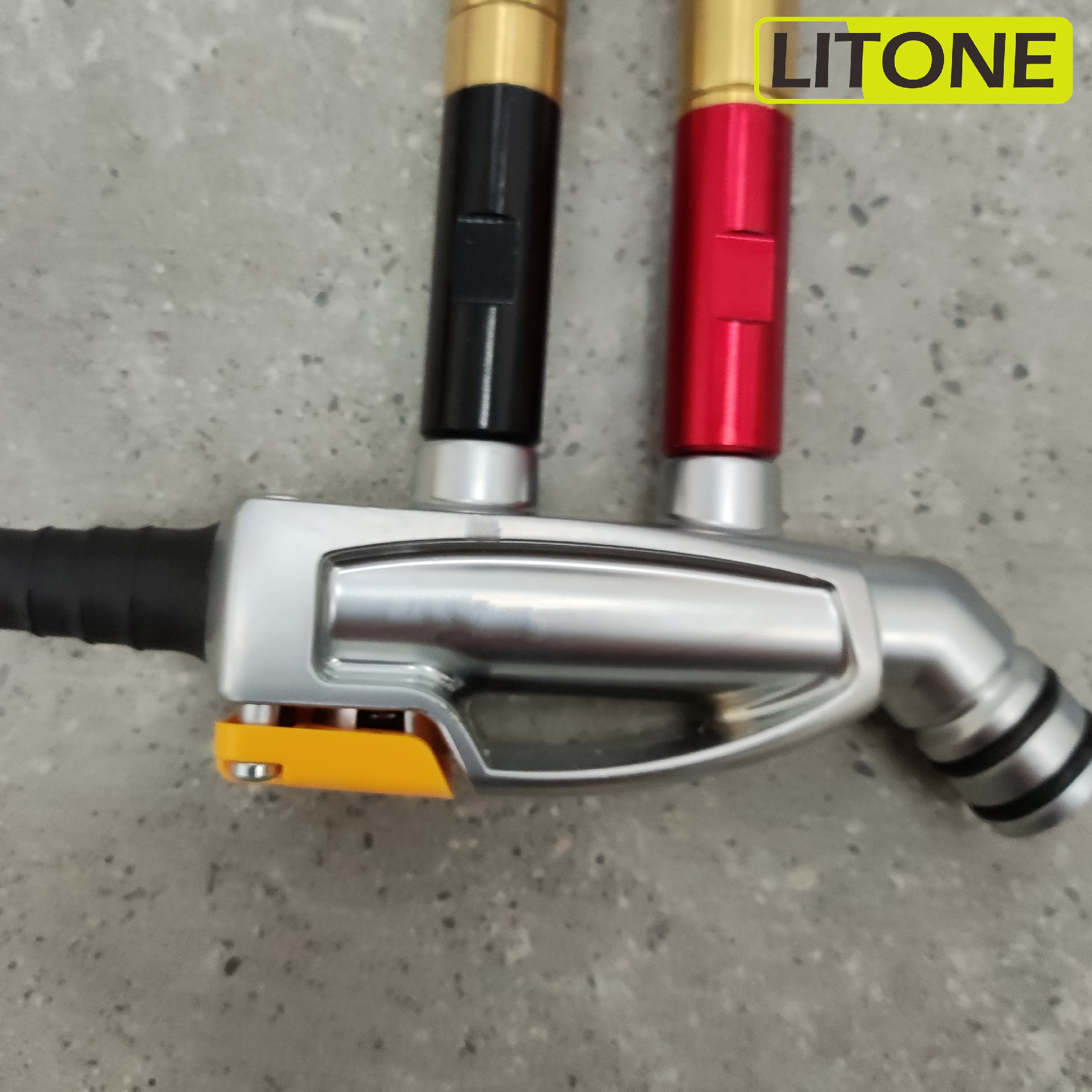

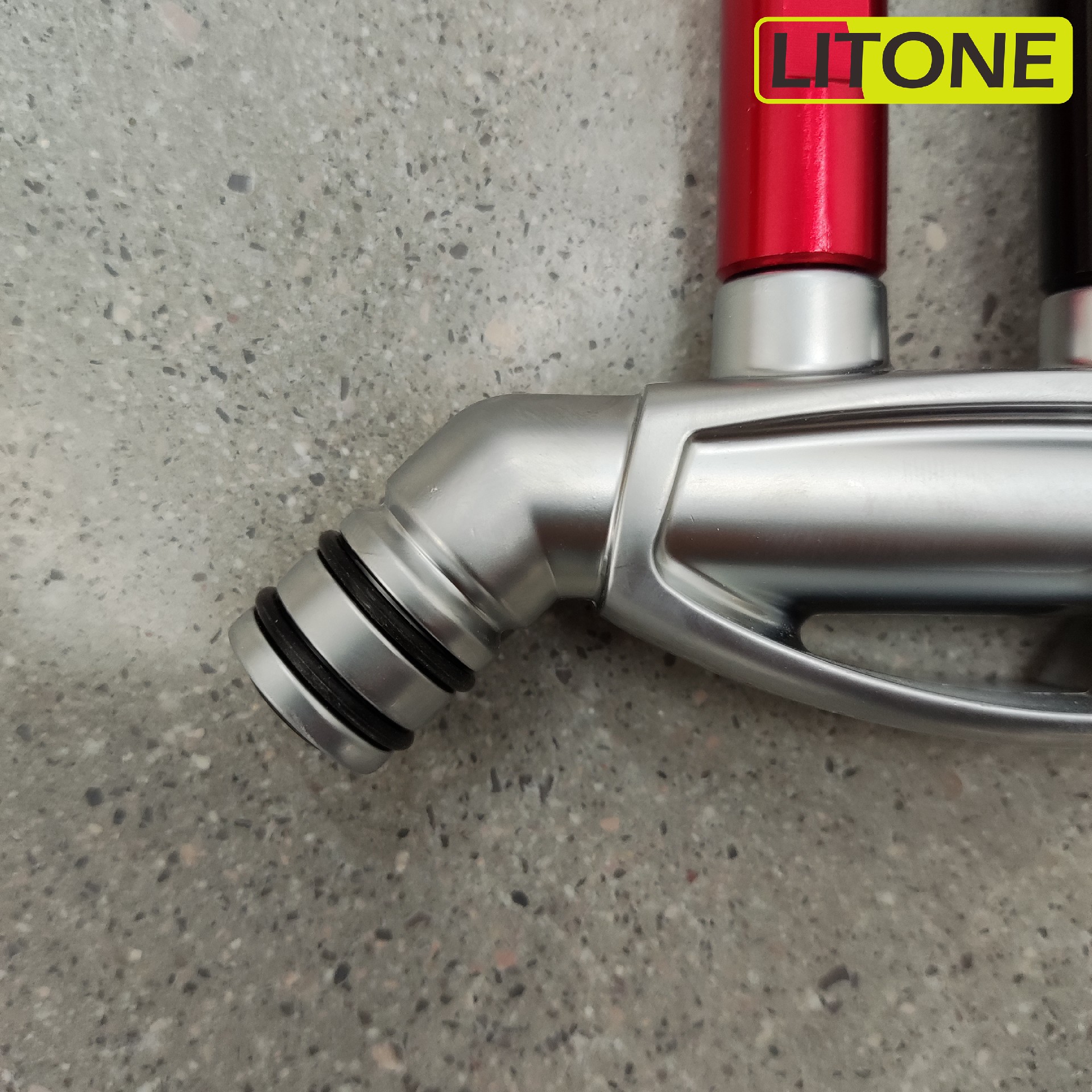

OptiFlow IG07 Powder injector – complete (pos. 1-15) | 1015 100 | |

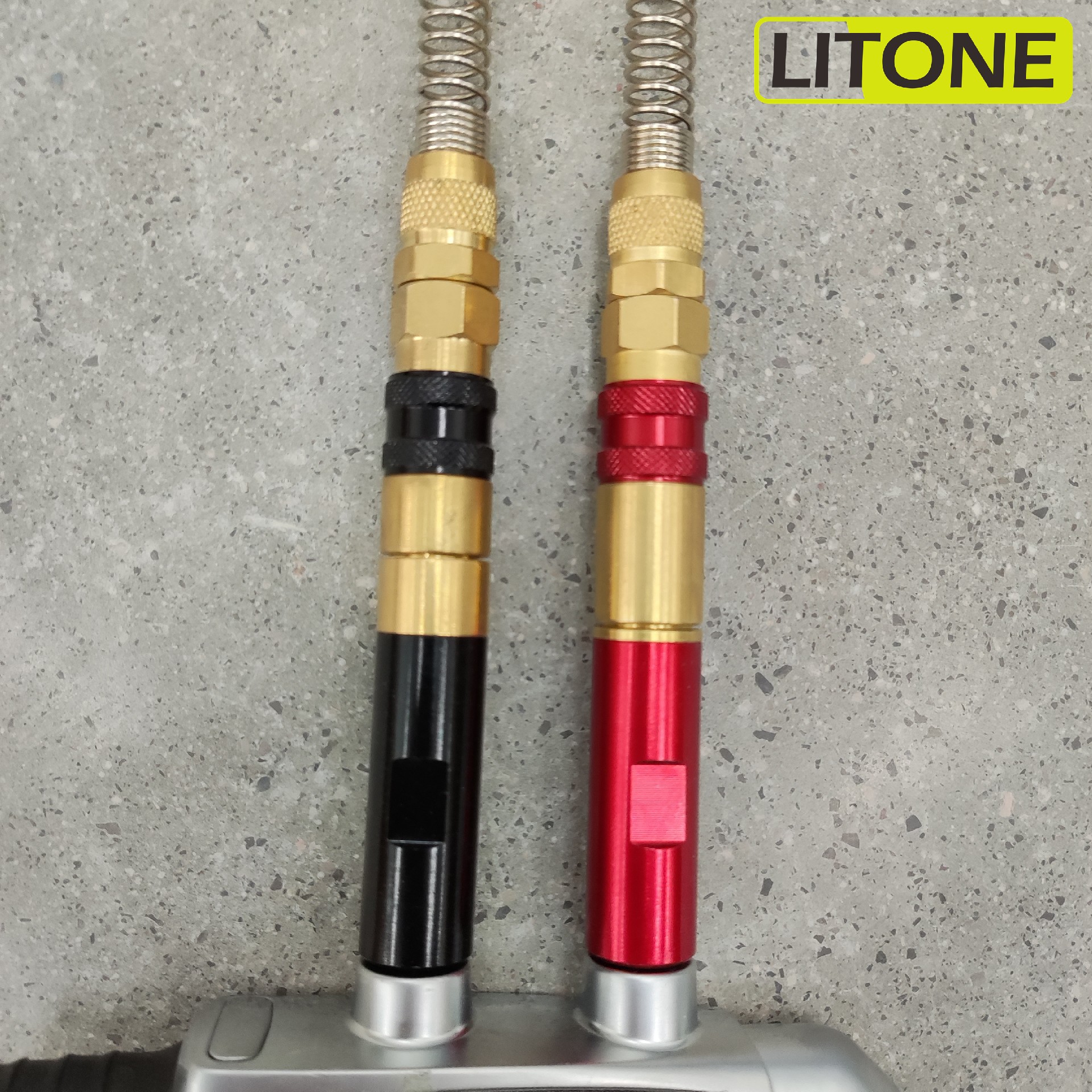

A | Conveying air check valve unit (red marking) – complete (incl. pos. 6, 8, 9 and 10) | 1015 830 |
B | Supplementary air check valve unit (black marking) – complete (incl. pos. 7, 8, 9 and 11) | 1015 831 |
1 | Injector body – without pos. 14 and 15 | 1015 102 |
2 | Slide gate | 1015 104 |
3 | Release trigger | 1014 810 |
4 | Screw – M3x6 mm | 1014 812 |
5 | Compression spring | 1014 813 |
6 | Connector (conveying air) – NW 5.5 | 1004 366 |
7 | Connector (supplementary air) – NW 5.5 | 1004 367 |
8 | O-ring – Ø 11x1.5 mm | 1000 532 |
9 | Filter element | 1015 832 |
10 | Body (red) | 1015 835 |
11 | Body (black) | 1015 836 |
12 | Cartridge – complete | 1016 561# |
13 | Hose connection – complete (incl. pos. 13.1) | 1014 806 |
13.1 | O-ring – Ø 13x1.5 mm | 1023 234# |
14 | O-ring – Ø 16x2 mm | 1007 794# |
15 | Axial gasket – complete | 1014 814 |
21 | Conveying air hose – Ø 8/6 mm (red) | 103 500* |
22 | Supplementary air hose – Ø 8/6 mm (black) | 1008 038* |
23 | Quick release coupling for conveying air hose – NW5-Ø 8 mm | 261 645 |
24 | Quick release coupling for supplementary air hose – NW5-Ø 8 mm | 261 637 |
25 | Kink protection | 1008 844 |
Powder hose – 66 type, POE, Ø 16/11 mm, with conductive strip (standard) | 105 139*# | |
Powder hose – 74 type, POE, Ø 15/10 mm, with conductive strip | 1001 673*# | |
Powder hose – 75 type, POE, Ø 18/12 mm, with conductive strip | 1001 674*# |
【RELATED PRODUCTS】
 |  |  |
Manual Powder Coating Gun GM04 1016 971 (NON-OEM) | Manual Powder Coating Gun GM03 1008 070 (NON-OEM) | IG06 Injector pump 1007 780 (NON-OEM) |
【PACKAGING & SHIPPING】
--Packing: High quality carton and wooden box
--Delivery Time: Four to eight days after payment by air
【APPLICATION】
 | Powder Coating Machine for Metal surface.Powder Coating Machine for Car wheel.Powder Coating Machine for Bicycle frame.Powder Coating Machine for Electrical Household Appliances.Powder Coating Machine for Aerospace Area.Powder Coating Machine for Fitness Equipment.Powder Coating Machine for Track Traffic.Powder Coating Machine for Medical Devices.Powder Coating Machine for Petroleum Pipes, Valve. |
