LITONE/ GEMA Powder Coating Gun OptiSelect GM03/ OptiGun GA03 Spare Parts Flat Jet Nozzle NF24, 1008 147 (NON-OEM)
LITONE/ GEMA Powder Coating Gun OptiSelect GM03/ OptiGun GA03 Spare Parts Flat Jet Nozzle NF24, 1008 147 (NON-OEM)--PRODUCT DESCRIPTION--1. Made of pure Teflon material, non-stick powder, friction res···
Features

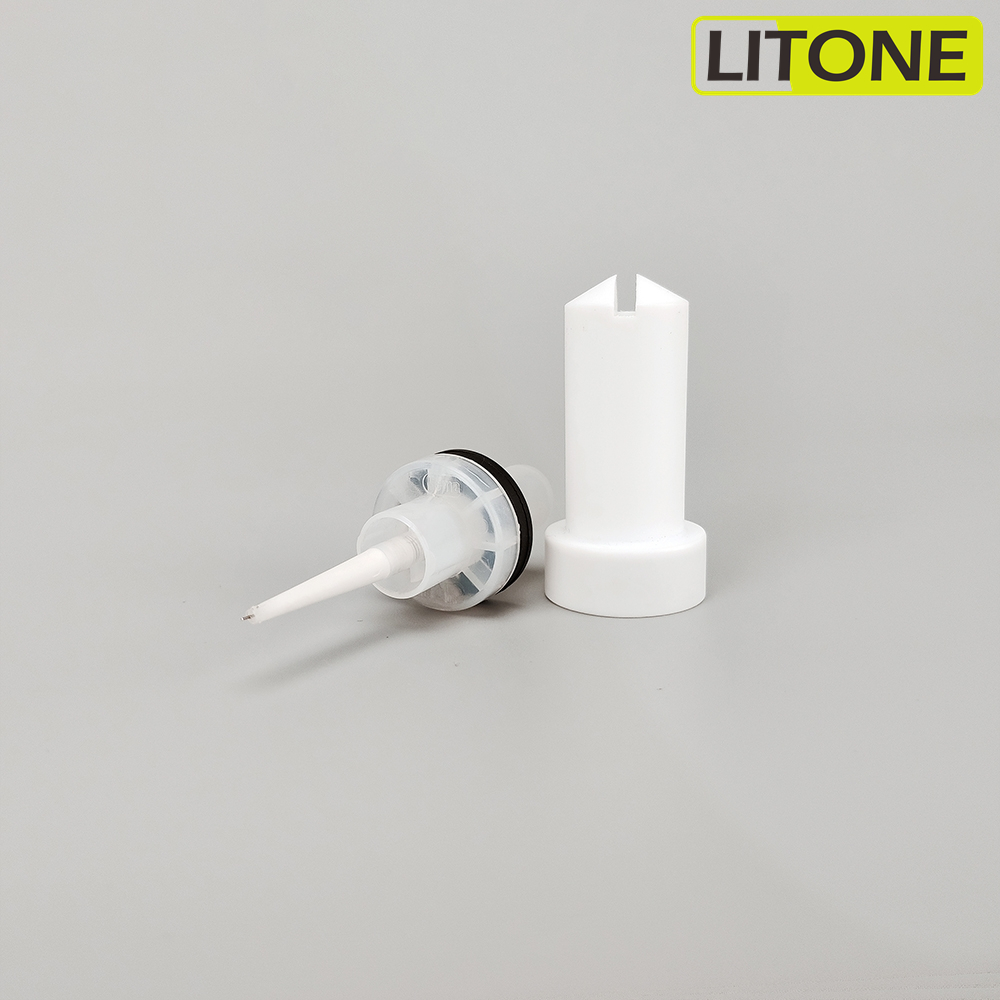

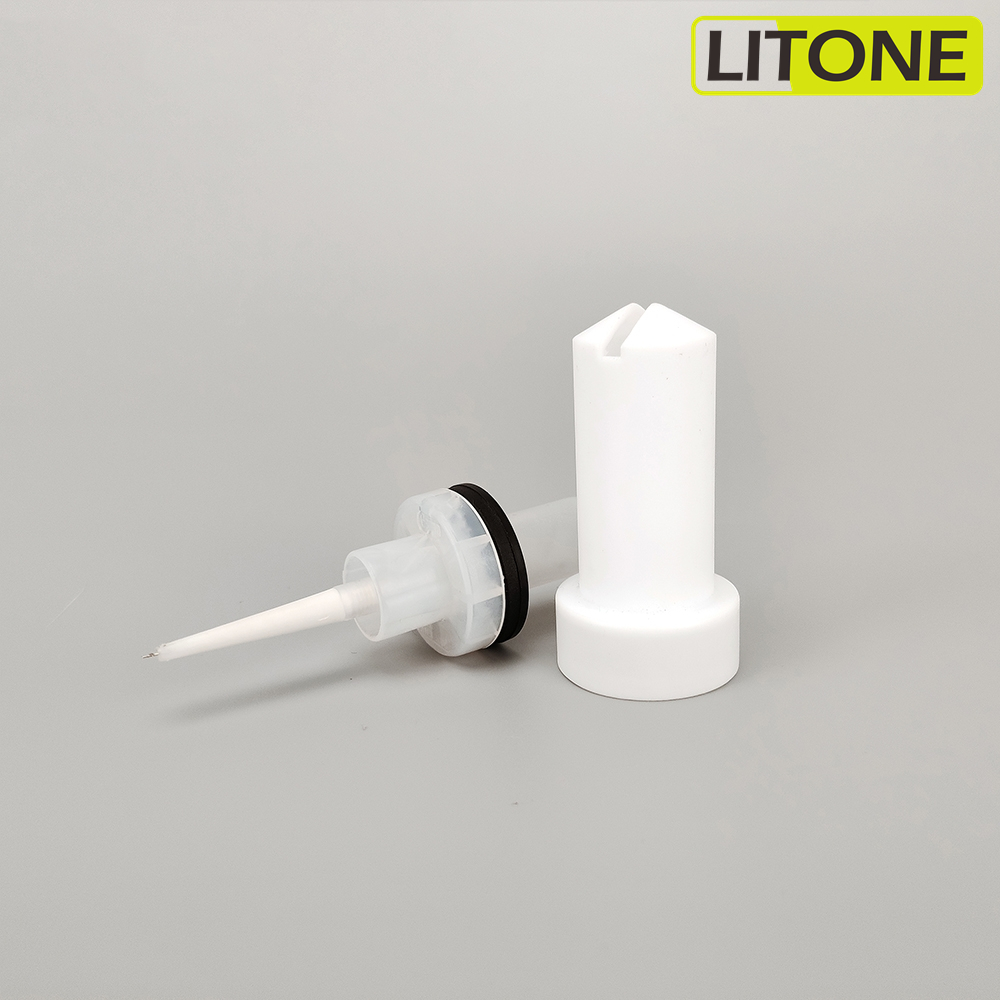

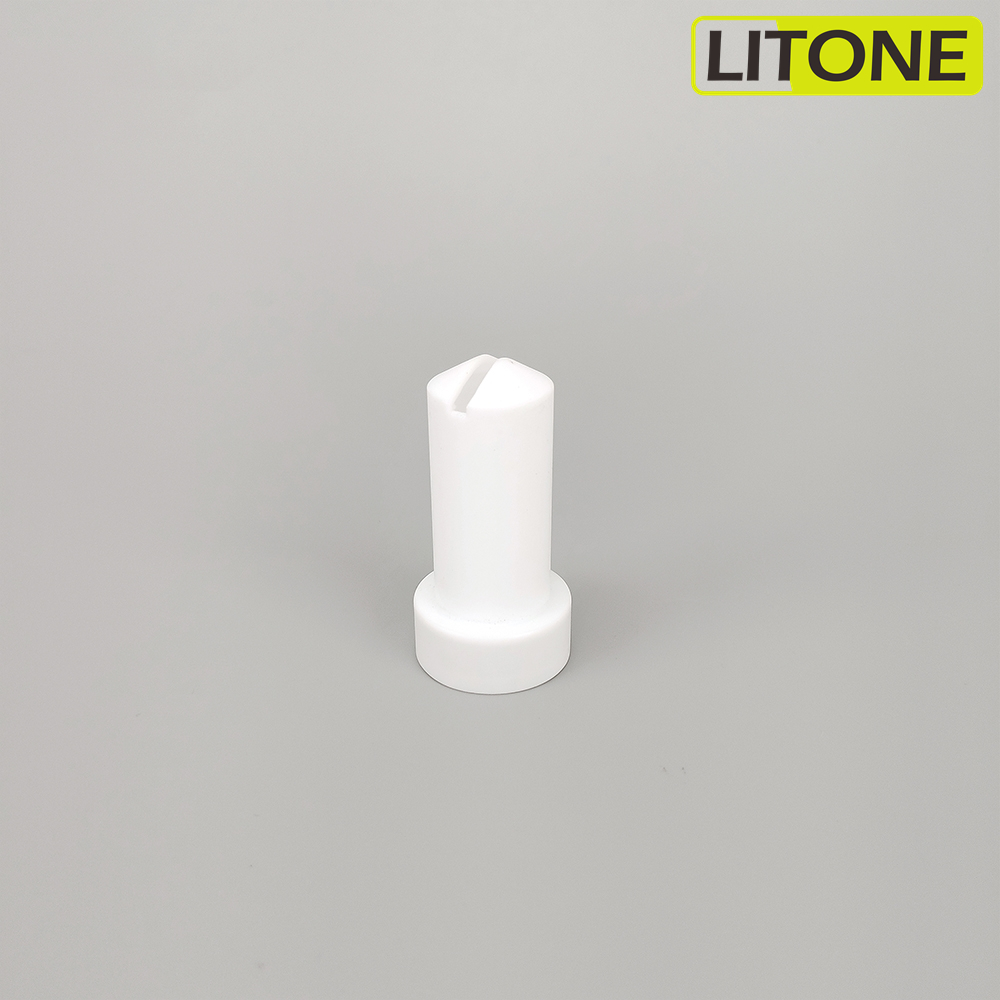

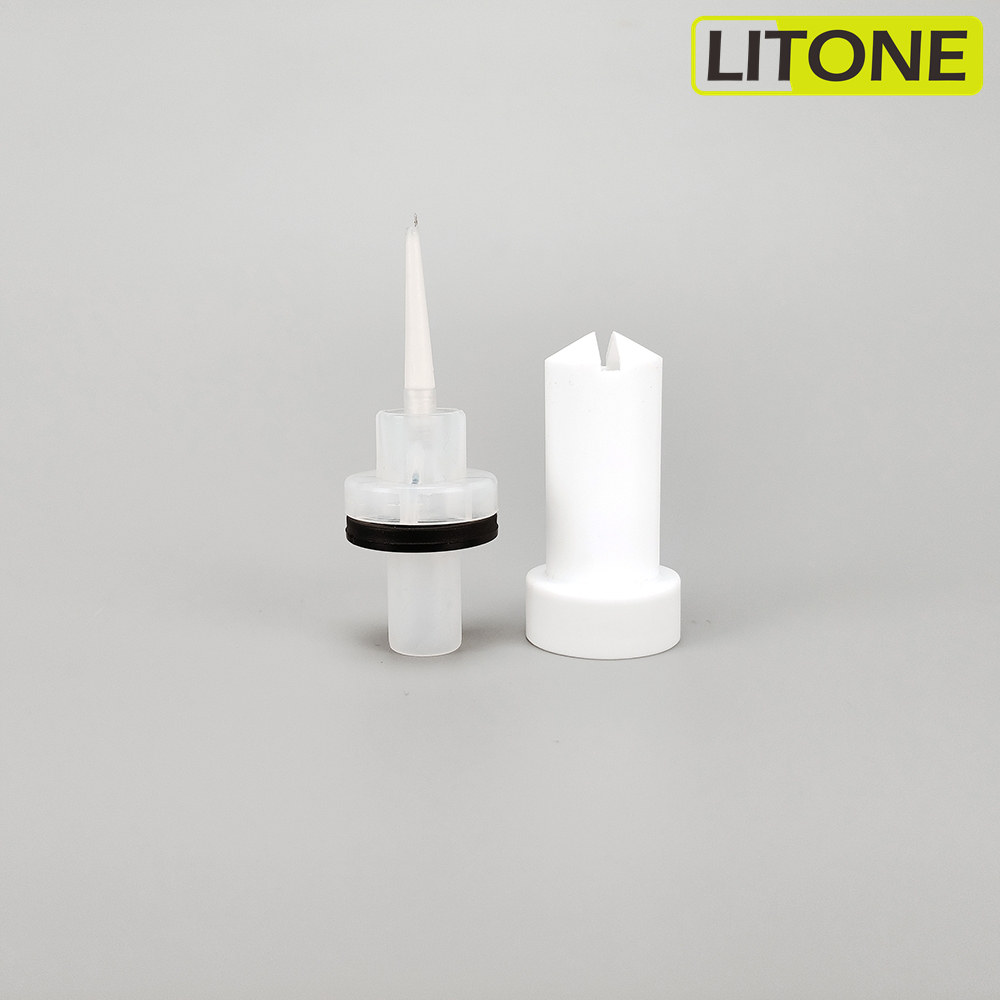

LITONE/ GEMA Powder Coating Gun OptiSelect GM03/ OptiGun GA03 Spare Parts Flat Jet Nozzle NF24, 1008 147 (NON-OEM)
--PRODUCT DESCRIPTION--
1. Made of pure Teflon material, non-stick powder, friction resistance, long service life
2. The electrode seat contains a conductive ring made of conductive material, which has good conductivity
3. The electrode holder contains glass glaze resistors.
The glass glaze resistors have a large resistance range, which can better transmit high voltage,
reduce high voltage loss, ensure powder charging rate, and have good stability.
 |  |
--DIFFERENCE BETWEEN NOZZLES--
1. Different materials
High-end nozzle is made of molded PTFE material, with high hardness, friction resistance and long service life.
Low-end nozzle is made of extruded PTFE or PTFE added with recycled materials, which has poor materials and short service life.
2. Different resistances
High-end uses glass glaze resistance;
Low-end uses carbon film Resistance;
The service life of glass glaze resistance is 3-4 times that of carbon film resistance.
3. Different conductivity
Carbon content of high-end nozzle > carbon content of low-end nozzle
4. Whether it is sticky or not
High-end nozzles are not sticky with powder, and low-end nozzles are easy to stick to powder, which is easy to form blockage and damage the spray gun over time.
Experience Summary: The service life of high-end is 3-4 times of low-end one.
 |  |  |
Electrode Holder( Flat Nozzle), 1007 683 (NON-OEM) | Flat Jet Nozzle, NF24, 1008 147 (NON-OEM) | Flat Nozzle, NF24, 1008 142 (NON-OEM) |
| ||
| A | OptiSelect GM03 manual powder gun – complete negative polarity, incl. gun cable – 6 m, rinsing air hose – 6 m, flat jet nozzle, brush and parts kit, without powder hose | 1008 070 |
OptiSelect GM03 manual powder gun – complete positive polarity, incl. gun cable – 6 m, rinsing air hose – 6 m, flat jet nozzle, brush and parts kit, without powder hose | 1008 073 | |
| B | Manual powder gun shaft OptiSelect GM03 (incl. cascade) with: | |
| Gun cable 2 m, negative polarity (–) | 1007 971 | |
| Gun cable 6 m, negative polarity (–) | 1007 972 | |
| Gun cable 12 m, negative polarity (–) | 1007 973 | |
| Gun cable 2 m, positive polarity (+) | 1007 974 | |
| Gun cable 6 m, positive polarity (+) | 1007 975 | |
| Gun cable 12 m, positive polarity (+) | 1007 968 | |
| 1 | Gun body | 1007 220 |
| 2 | Cascade – complete, negative polarity | 1007 231 |
| Cascade – complete, positive polarity | 1007 232 | |
| 3 | Print holder – complete | 1007 216 |
| 4 | End plate with hook | 1007 217 |
| 5 | Grip – complete (incl. pos. 5.1 and 5.2) | 1007 961 |
| 5.1 | Grub screw – M3x8 mm | 1008 157 |
| 5.2 | Grip sealing | 1007 633 |
| 6 | Trigger – complete | 1007 213 |
| 7 | Trigger cover | 1007 212 |
| 8 | Countersunk-head screw – M4x6 mm | 1000 845 |
| 9 | SuperCorona connection | 1007 238 |
| 10 | Gun cable 2 m – complete | 1007 963 |
| Gun cable 6 m – complete | 1007 964 | |
| Gun cable 12 m – complete | 1007 965 | |
| 11 | Rinsing air connection | 1000 804 |
| 11.1 | Rinsing air hose | 100 854* |
| 12 | Powder tube – complete | 1007 958 # |
| 13 | Compression spring | 1001 488 |
| 14 | Clip ring | 1007 960 |
| 15 | Hose connection Ø 11-12 mm – complete (incl. pos 15.1) | 1001 340 # |
| Hose connection Ø 9-10 mm – complete (incl. pos 15.1) | 1002 030 # | |
| 15.1 | O-ring for pos. 15 | 1000 822 # |
| 16 | Threaded sleeve | |
| 17 | Nozzle | |
| 18 | Cascade space gasket | 1007 635# |
| Cleaning brush – Ø 12 mm | 389 765 | |
| Parts set (not shown), consisting of: | 1008 302 | |
| Flat jet nozzle NF21 | 1007 935# | |
| MultiSpray-Adapter NF08 | 1003 634# | |
| Cable clamp | 303 070 | |
| Hose connector – complete, for hose interior Ø 9-10 mm | 1002 030 | |
| Powder hose – Ø 10 mm (not shown) | 1001 673*# | |
| Powder hose – Ø 11 mm (not shown) | 105 139*# | |
--RELATED PRODUCTS--
 |  |  |
OptiGun GA03 auto powder gun with gun cable 1010 198 (NON-OEM) | Manual Powder Coating Gun GM03 1008 070 (NON-OEM) | IG06 Injector pump 1007 780 (NON-OEM) |
--PACKAGING & SHIPPING--
Packing: High quality carton and wooden box
Delivery Time: Four to eight days after payment by air
--APPLICATION--
 | Powder Coating Machine for Metal surface.Powder Coating Machine for Car wheel.Powder Coating Machine for Bicycle frame.Powder Coating Machine for Electrical Household Appliances.Powder Coating Machine for Aerospace Area.Powder Coating Machine for Fitness Equipment.Powder Coating Machine for Track Traffic.Powder Coating Machine for Medical Devices.Powder Coating Machine for Petroleum Pipes, Valve. |
