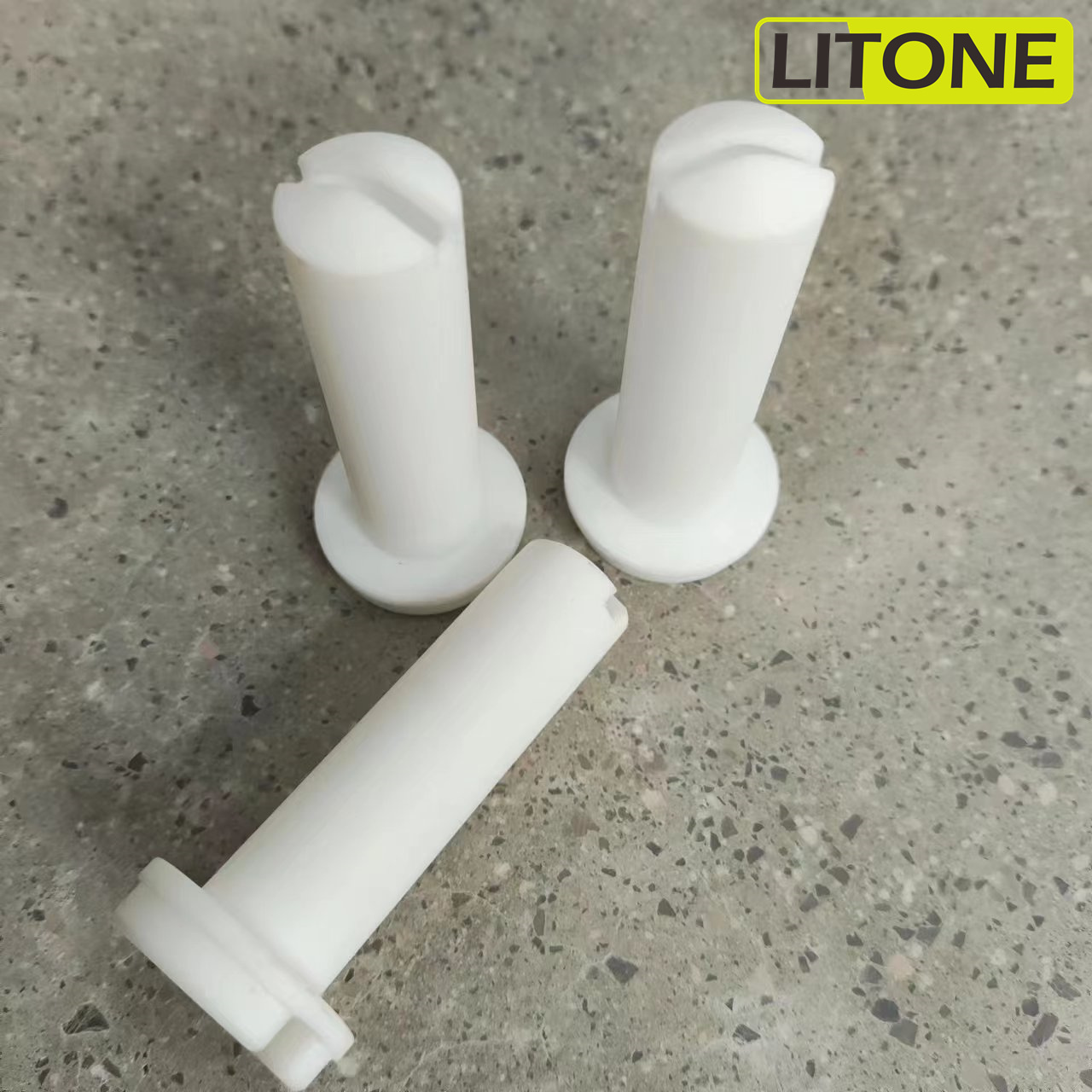

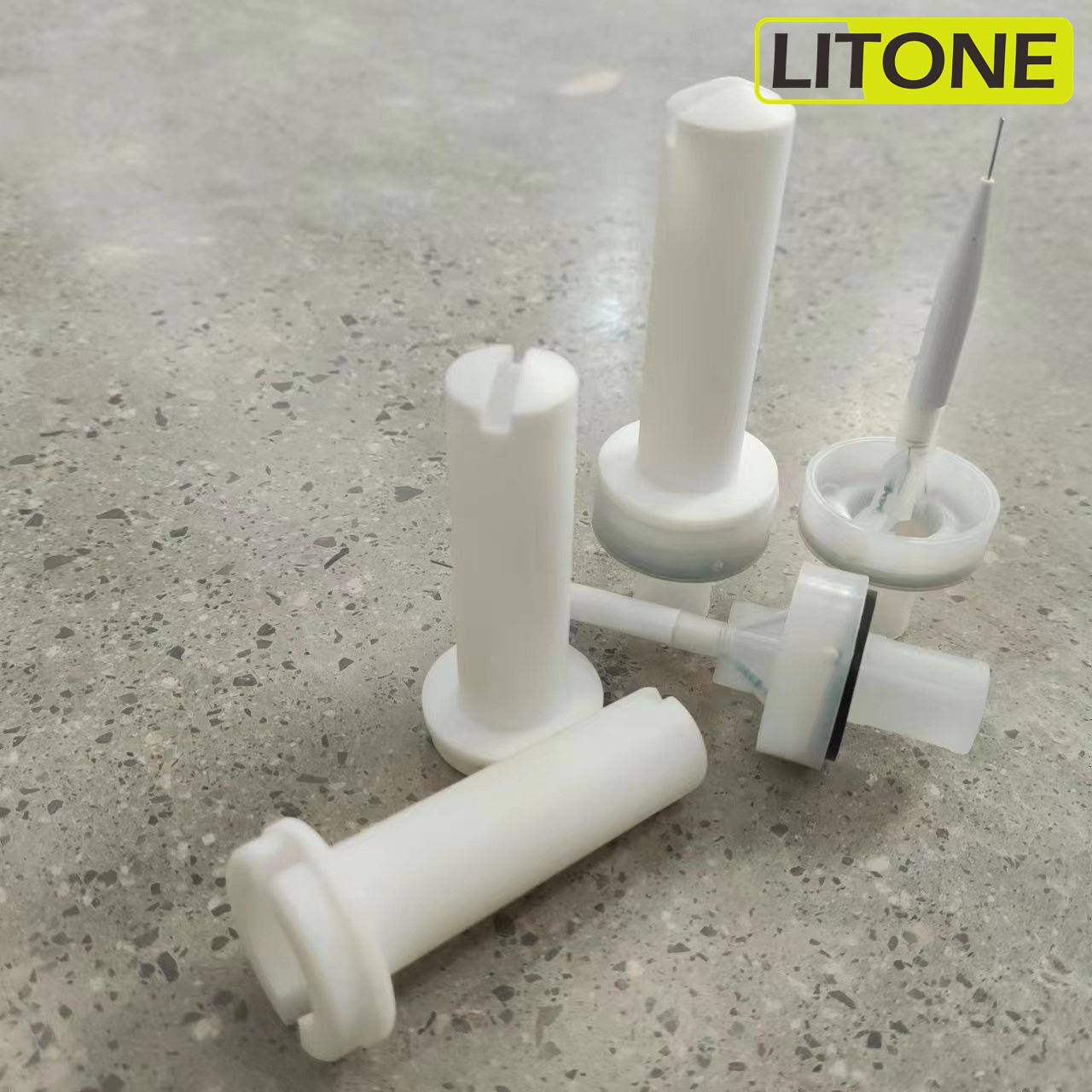

LITONE/ GEMA Powder Coating Gun OptiGun GA02 Spare Parts Flat Jet Nozzle NF18 1004 527(NON-OEM)

--PRODUCT DESCRIPTION--

1. Made of pure Teflon material, non-stick powder, friction resistance, long service life

2. The electrode seat contains a conductive ring made of conductive material, which has good conductivity

3. The electrode holder contains glass glaze resistors.

The glass glaze resistors have a large resistance range, which can better transmit high voltage,

reduce high voltage loss, ensure powder charging rate, and have good stability.

--DIFFERENCE BETWEEN NOZZLES--

1. Different materials

High-end nozzle is made of molded PTFE material, with high hardness, friction resistance and long service life.

Low-end nozzle is made of extruded PTFE or PTFE added with recycled materials, which has poor materials and short service life.

2. Different resistances

High-end uses glass glaze resistance;

Low-end uses carbon film Resistance;

The service life of glass glaze resistance is 3-4 times that of carbon film resistance.

3. Different conductivity

Carbon content of high-end nozzle > carbon content of low-end nozzle

4. Whether it is sticky or not

High-end nozzles are not sticky with powder, and low-end nozzles are easy to stick to powder, which is easy to form blockage and damage the spray gun over time.

Experience Summary: The service life of high-end is 3-4 times of low-end one.

Flat Nozzle, NF18, 1004 530 (NON-OEM)	Flat Jet Nozzle, NF18, 1004 527 (NON-OEM)	Electrode Holder( Flat Nozzle), 1004 529 (NON-OEM)

--	Nozzle set - flat jet, NF18-M, pos. 1, 2	1004 530#
1	Electrode holder (flat jet nozzle)	1004 529#
2	Flat jet nozzle	1004 527#
3	Threaded sleeve	379 166

--RELATED PRODUCTS--

OptiGun GA02 auto powder gun with gun cable  393 568 (NON-OEM)	GA02 Angle nozzle - PA01-60°  (incl. round jet nozzle with deflector Ø 24 mm) 383 724 (NON-OEM)	IG06 Injector pump 1007 780 (NON-OEM)

--PACKAGING & SHIPPING--

Packing:  High quality carton and wooden box

Delivery Time: Four to eight days after payment by air

--APPLICATION--

Powder Coating Machine for Metal surface.

Powder Coating Machine for Car wheel.

Powder Coating Machine for Bicycle frame.

Powder Coating Machine for Electrical Household Appliances.

Powder Coating Machine for Aerospace Area.

Powder Coating Machine for Fitness Equipment.

Powder Coating Machine for Track Traffic.

Powder Coating Machine for Medical Devices.

Powder Coating Machine for Petroleum Pipes, Valve.
