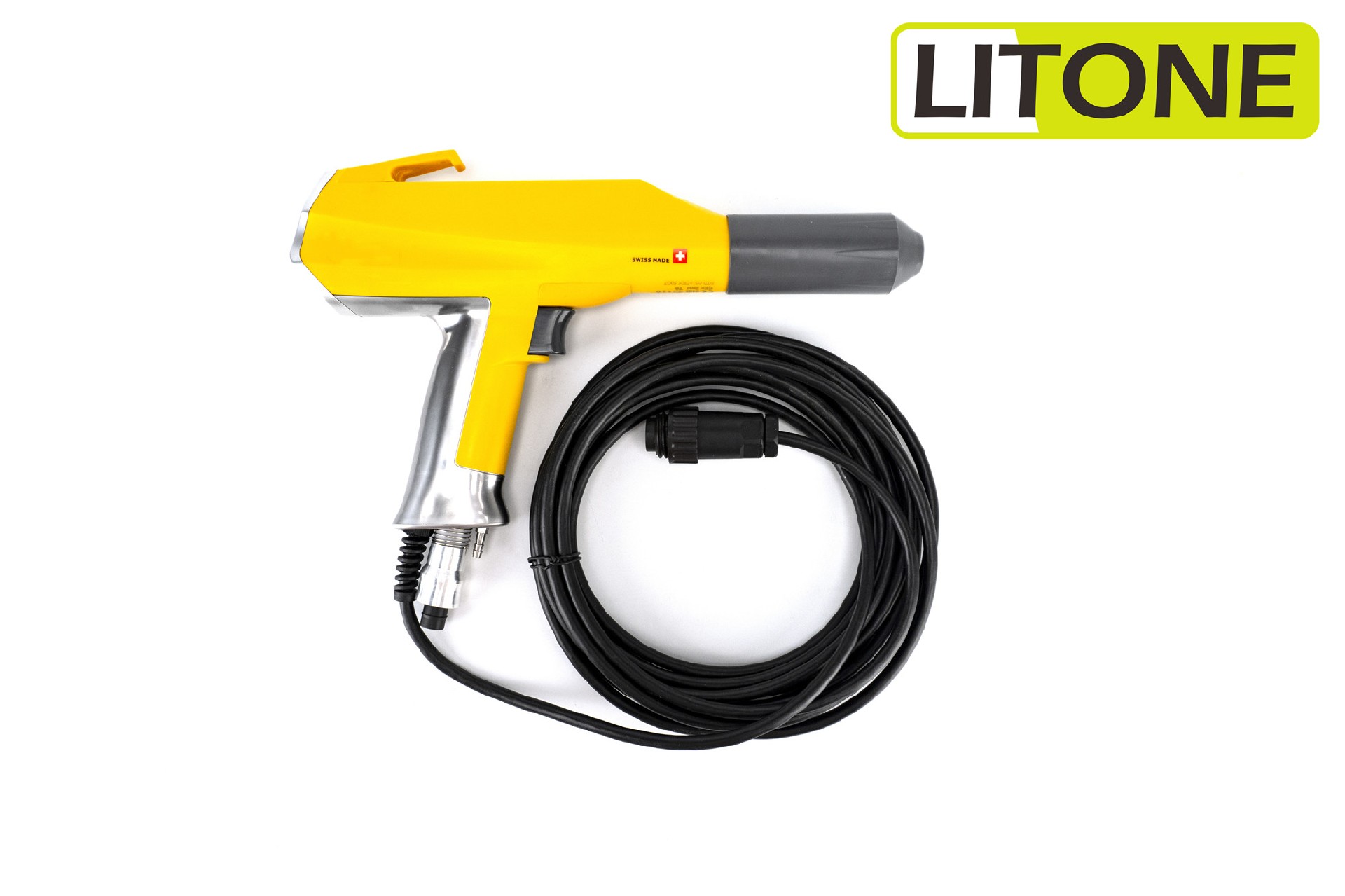

Gema Complete Optiselect GM02 Manual Gun with 6m Cable and 6m Rising Air Hose 1002 100(Non OEM)
[Complete Optiselect GM02 Manual Gun with 6m Cable and 6m Rising Air Hose 1002 100]Manual Powder Coating Gun Gema GM02Manual gun powder coating gun optiSelect GM04 for Optiselect PRO powder coating eq···
Features
[Gema Complete Optiselect GM02 Manual Gun with 6m Cable and 6m Rising Air Hose 1002 100(Non OEM)]

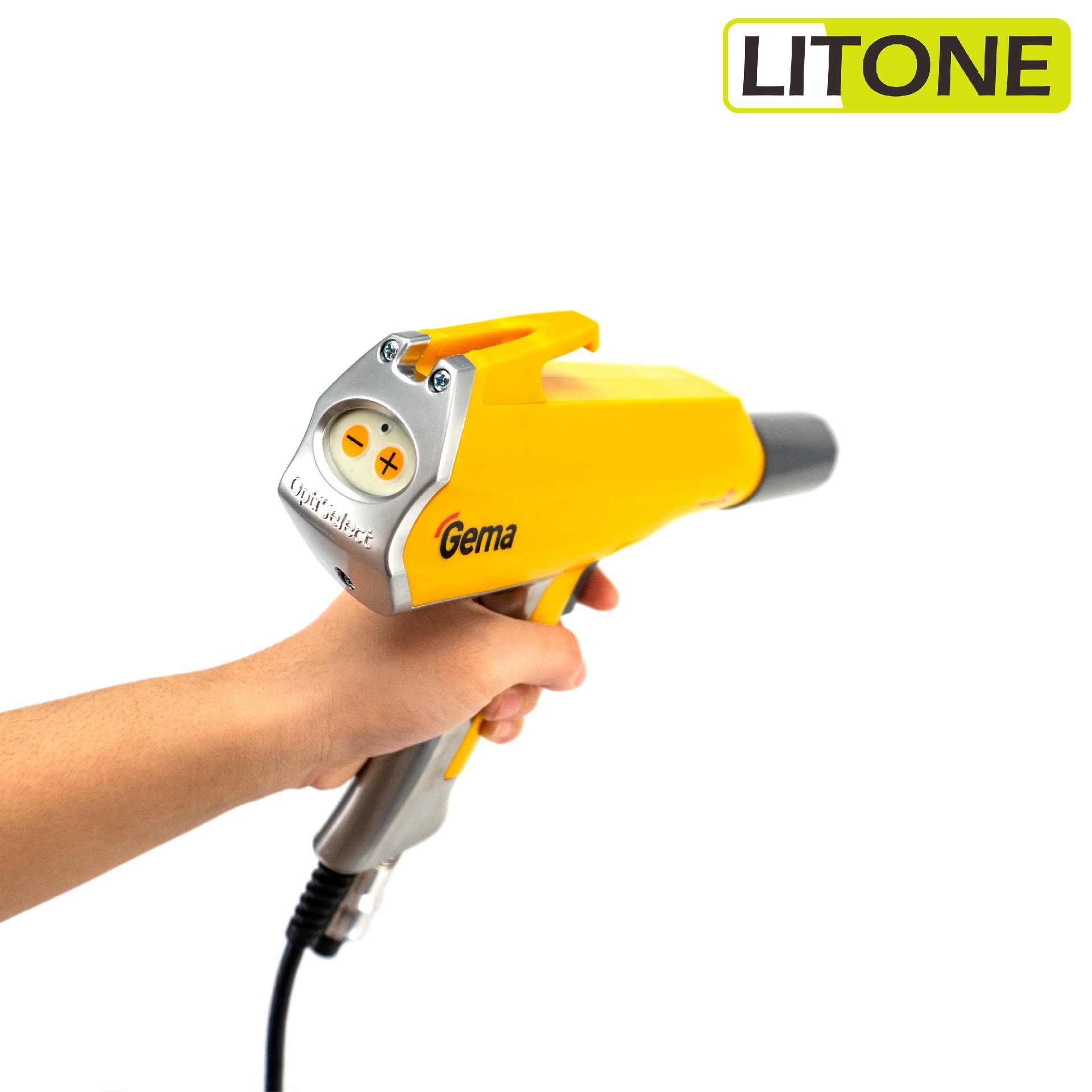

Manual Powder Coating Gun Gema GM02
Manual spray gun optiSelect GM04 for Optiselect PRO powder coating equipment.

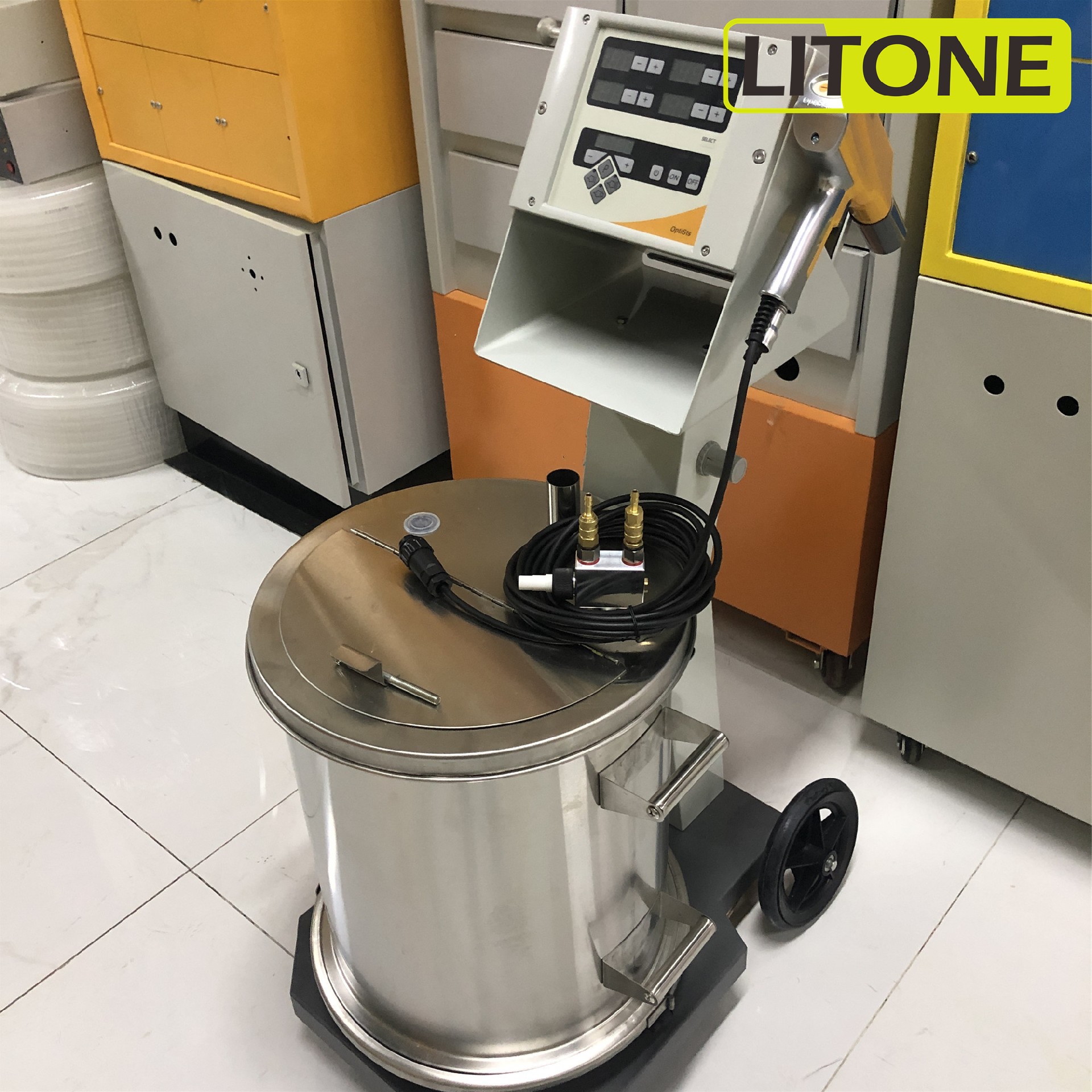

Compatible with Gema original powder coating equipment FLEX-F.
product description
GM02 Gun body 1001 155
Antistatic materials with special formula can reduce high voltage loss and prevent arcing

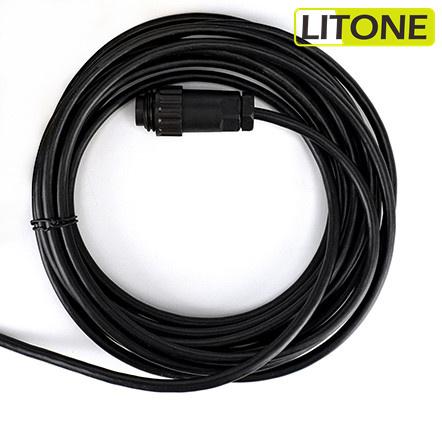

GM02 Gun cable-L=6m,complete 1001 528
Contains shielded wires to reduce loss,
Pure copper core, good electrical conductivity, special outer material
Does not fold below 0°C, does not melt at high temperature

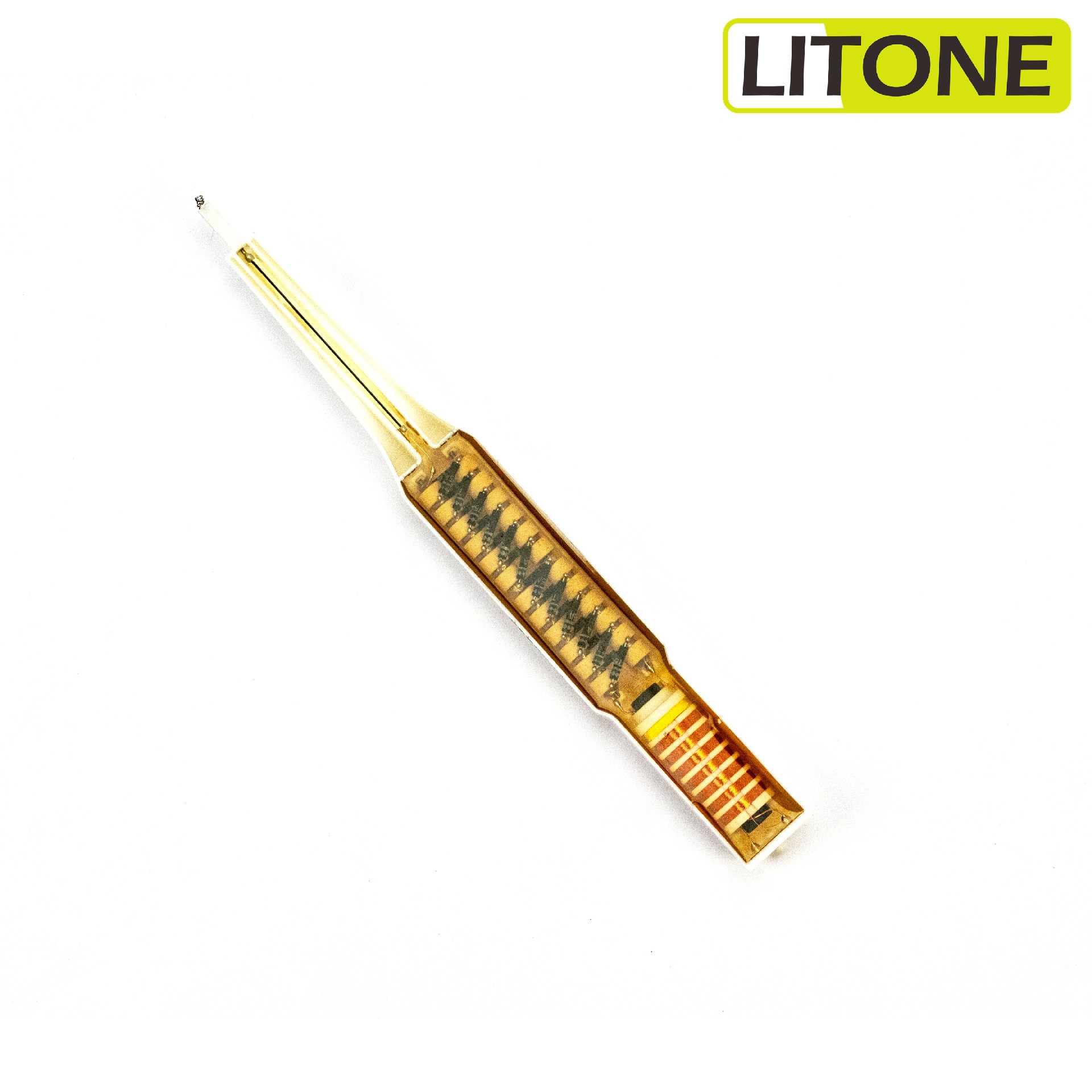

GM02 Cascade (negative polarity)-complete 1000 809
1 The cascade shell is made of antistatic material, which can protect the module well
2 Gold-plated contacts and anti-counterfeiting chip on the bottom
3 Contains isolation column capacitors and chip capacitors
High Order Quantity Powder Coating GM02 Round Nozzle-Complete 382 922
1 Nozzle housing and nozzle housing made of special material
2 Has excellent chemical stability, corrosion resistance, high lubricity, non-stickiness, electrical insulation and good aging resistance
3 There is a conductive ring at the bottom of the shell, which plays a conductive role and can protect the nozzle well
4 The resistor is made of glass glaze resistor, which has good conductive function
Product Parameters
| Electrical data | |
| Powder Voltage and Plug | 100V - 240V (customized ) |
| Power | ≤50W |
| Frequency | 50HZ / 60HZ |
| Temperature range in use | -10 to 50 degree |
| Powder coating gun | |
| Reted Output Voltage | 24V DC |
| Max. Output current | 100Ua ( max.) |
| Max. Output Voltage | 0-100KV (adjustable) |
| Max. Powder Injection | 600g/min |
| Polarity | negative (-) |

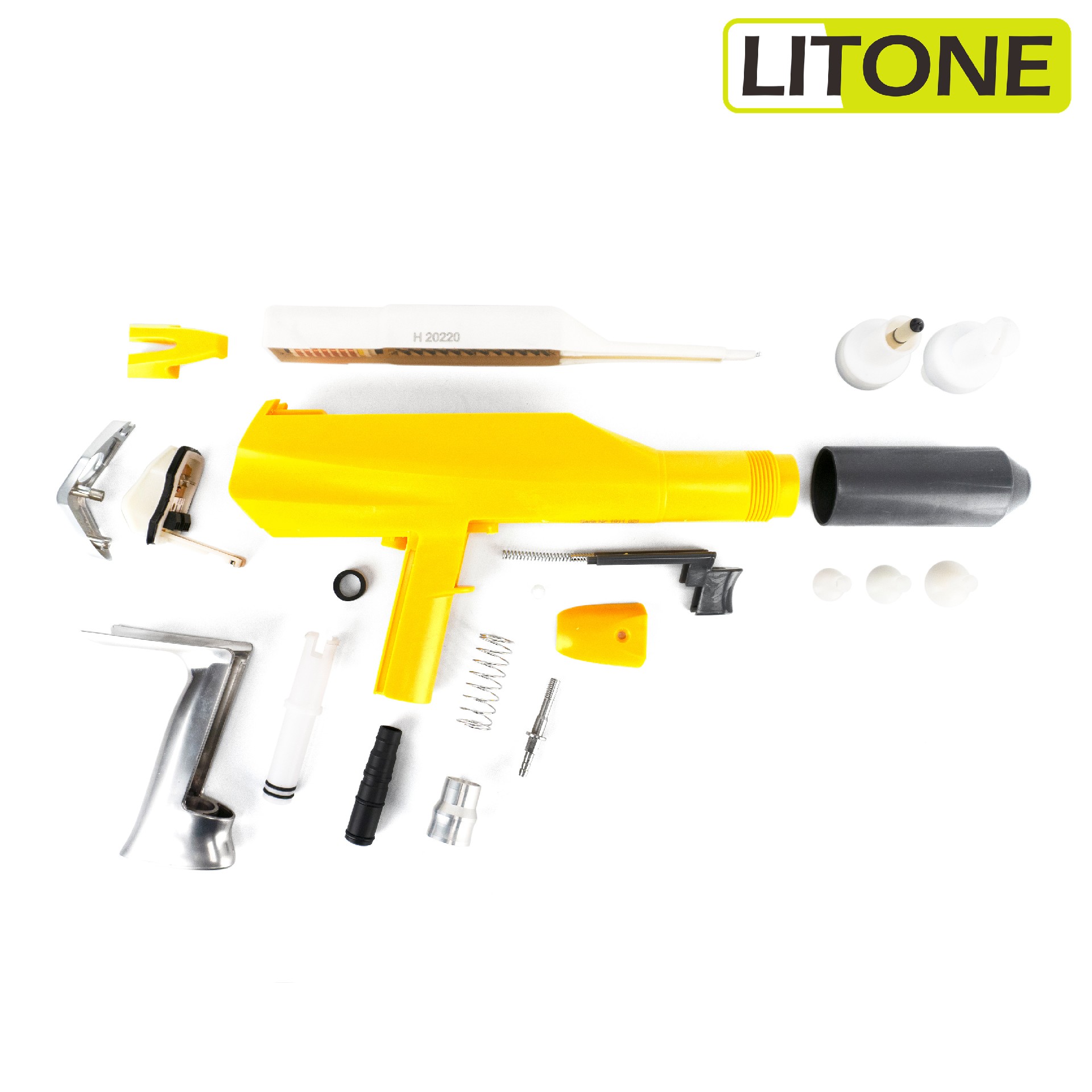

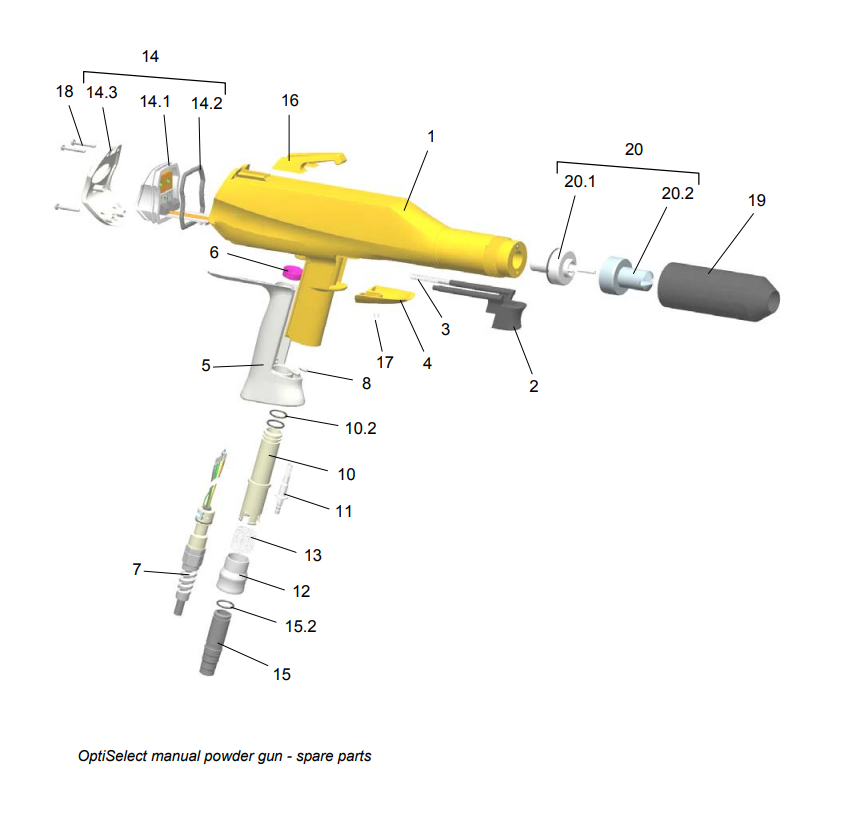

OptiSelect manual powder gun - spare parts list
Remarks
1.If a part of the gun body should be broken, or the high voltage cascade in the gun body should be defective, then the whole gun body is to be sent in for repair and check!
2. If the powder gun cable is defective, it is to be completely sent in for repair!
| A | OptiSelect manual powder gun - complete negative polarity, incl. gun cable - 6 m, rinsing air hose - 6 m, flat jet nozzle, brush and parts kit, without powder hose | 1002 100 |
| OptiSelect manual powder gun - complete positive polarity, incl. gun cable - 6 m, rinsing air hose - 6 m, flat jet nozzle, brush and parts kit, without powder hose | 1002 101 | |
| B | OptiSelect manual powder gun shaft (incl. cascade) | |
| Negative polarity (-) | 1001 891 | |
| Positive polarity (+) | 1001 892 | |
| C | Cascade (negative polarity) - complete | 1000 809 |
| Cascade (positive polarity) - complete | 1002 031 | |
| 1 | Gun body | 1001 155 |
| Handle - complete set (pos. 5, 6, 7 and 8) 1000 807 | 1000 807 | |
| 2 | Trigger - complete (incl. pos. 2 and 3) | 1001 341 |
| 3 | Compression spring - 0.36x4.2x49.4 mm | 1001 487 |
| 4 | Trigger cover | 1000 801 |
| 5 | Grasp termination | 1000 806 |
| 6 | Radial gasket | 1000 803 |
| 7 | Gun cable - L=6 m, complete | 1001 528 |
Extension cable for gun cable - L=6m, incl. safety clamp | 1002 161 | |
| Extension cable for gun cable - L=14m, incl. safety clamp | 1002 162 | |
| Safety clamp for extension cable | 1002 064 | |
| 8 | Grub screw - M3x8 mm | 1000 844 |
| 10 | Powder tube - complete | 1001 339 |
| 10.2 | O-ring - Ø 12x1.5 mm | 1000 822 |
| 11 | Rinsing air connection | 1000 804 |
| 12 | Clip ring | 1000 89 |
| 13 | Compression spring | 1001 488 |
| 14 | Back cover - complete | 1000 617 |
| 14.1 | Printed circuit board holder - complete (incl. pos. 14.2) | 1002 029 |
| 14.2 | Radial gasket | 1000 795 |
| 14.3 | Shield - complete | 1002 028 |
| 14.4 | Cap screw - M3x8 mm (not shown) | 202 363 |
| 15 | Hose connection - complete, for internal hose Ø 11-12 mm | 1001 340 |
| Hose connection - complete, for internal hose Ø 9-10 mm | 1002 030 | |
| 15.2 | O-ring - Ø 12x1.5 mm | 1000 822 |
| 16 | Hook (replaceable) | 1000 877 |
| 17 | Countersunk head screw - M4x8 mm, plastic | 263 516 |
| 18 | PT-screw | 1000 843 |
| 19 | Threaded sleeve - complete | 1000 948 |
| 20 | Flat jet nozzle - complete | 1000 047 |

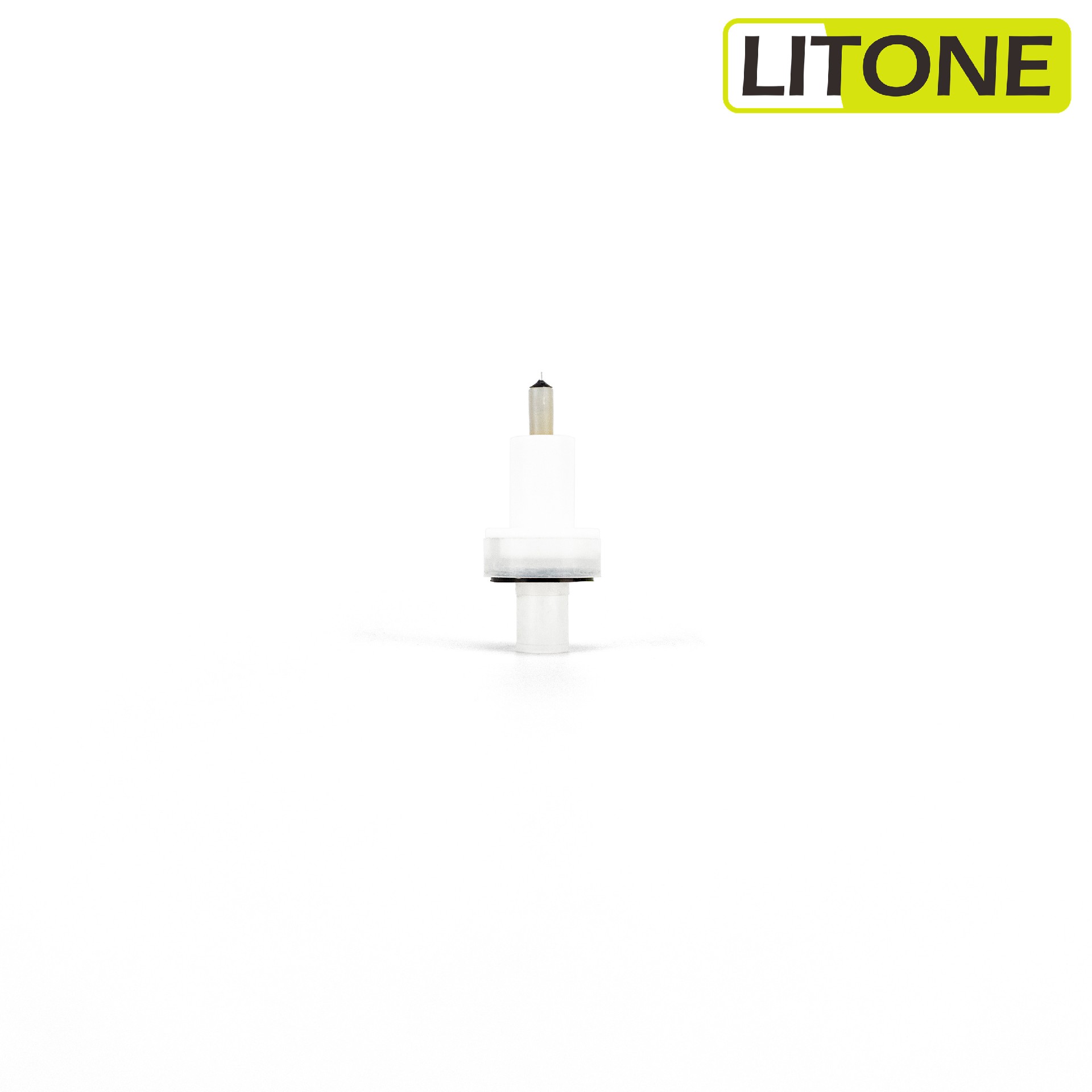

| 20.1 | Electrode holder - complete | 1000 055 |
| 20.2 | Flat jet nozzle | 1000 049 |
| OptiSelect adaptor for PGC control unit (not shown) | 1001 952 | |
| Cleaning brush - Ø 12mm | 389 765 | |
| Parts set (not shown), consisting of: | 1002 359 | |
| Round jet nozzle - NS02, complete | 382 922 | |
| Cable clamp | 303 070 | |
| Deflector plate - Ø 16 mm | 331 341 | |
| Deflector plate - Ø 24 mm | 331 333 | |
| Deflector plate - Ø 32 mm | 331 325 | |
| Hose connection - complete, for internal hose Ø 11-12 mm | 1001 340 | |
| O-ring - Ø 12x1.5 mm | 1000 822 | |
| Countersunk head screw - M4x8 mm, plastic | 263 516 | |
| Powder hose - Ø 10 mm (not shown) | 1001 673 | |
| Powder hose - Ø 11 mm (not shown) | 105 139 |
